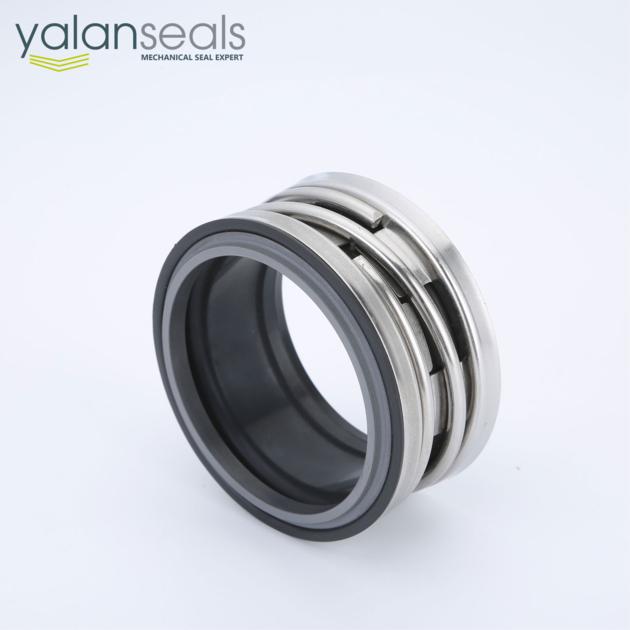

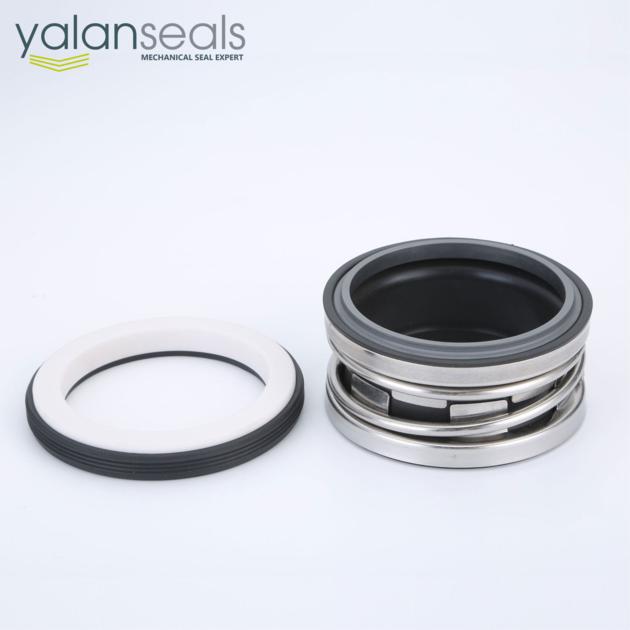

2100, AKA TJ or INT, Mechanical Seal for Centrifugal/Vacuum Pumps, Submerged Motors, Compressors

Basic Features
Structure: Single End
Pressure: Medium Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: Temperature Mechanical Seal
Performance: Wear
Standard: Standard
Model NO.: 2100, AKA TJ or INT
Balance: Balanced
Specification: Inner Diameter: 12 mm to 100 mm
Product Detailed Description
2100, AKA TJ or INT, Mechanical Seal for Centrifugal/Vacuum Pumps, Submerged Motors, Compressors, Agitation Equipment and Decelerators

Structural Features: single end, partially balanced, independent direction of rotation, rubber bellow, shift transmission. This component has a compact structure with good compatibility and easy installation. The bellow can provide support against the pressure to eliminate indentation and corrugation.

Industrial Standards: DIN24960, ISO3069, GB6556-94

Scopes of Application: mainly used in centrifugal pumps, vacuum pumps, submerged motors, compressor, agitation equipment and decelerators. This component can work as an alternative to the similar product of John Crane.

Operation Parameters:
Pressure: 1.2 MPa or less
Temperature: - 10 ~ 120 ºC
Linear Speed: 10 m/s or less
Mediums: clean water and sewage, mostly used in industries such as sewage treatment and papermaking.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
