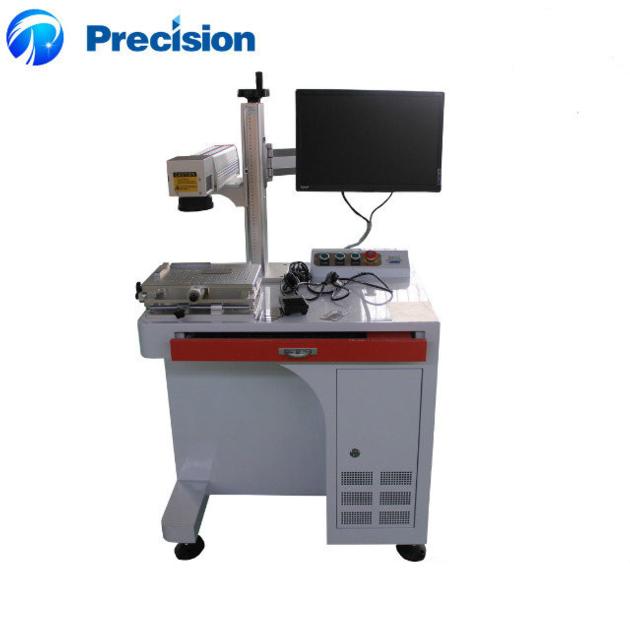

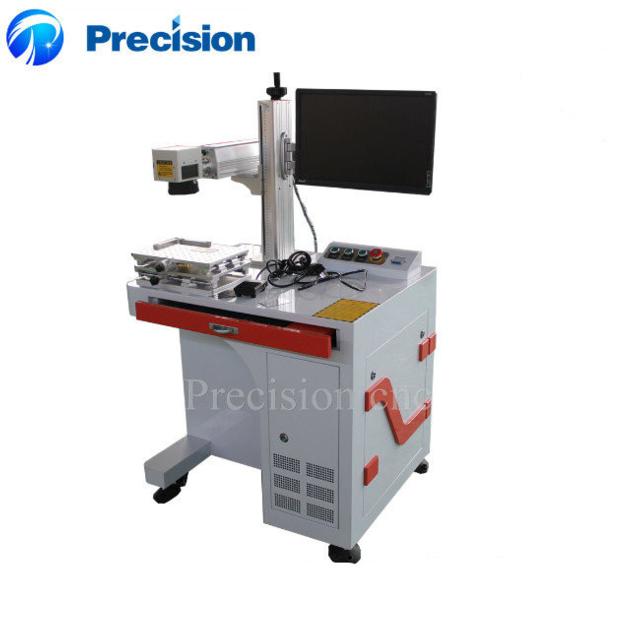

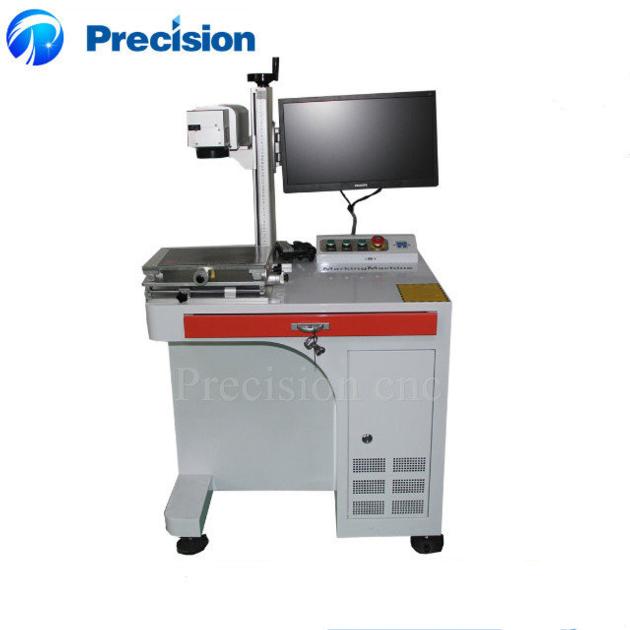

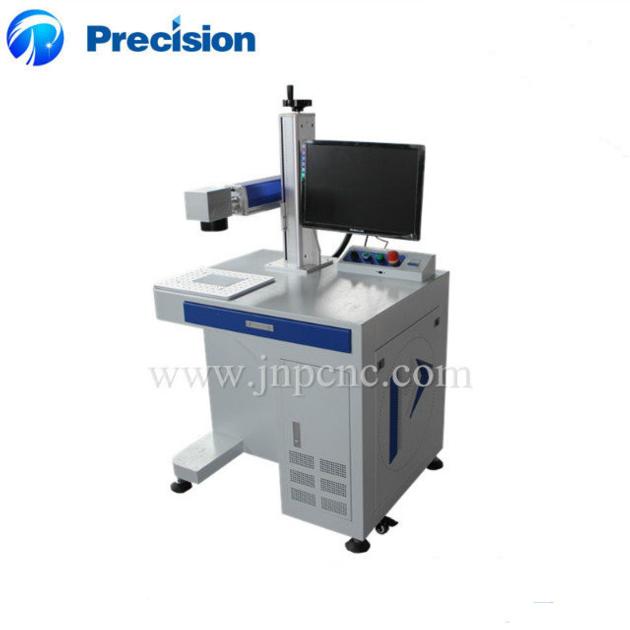

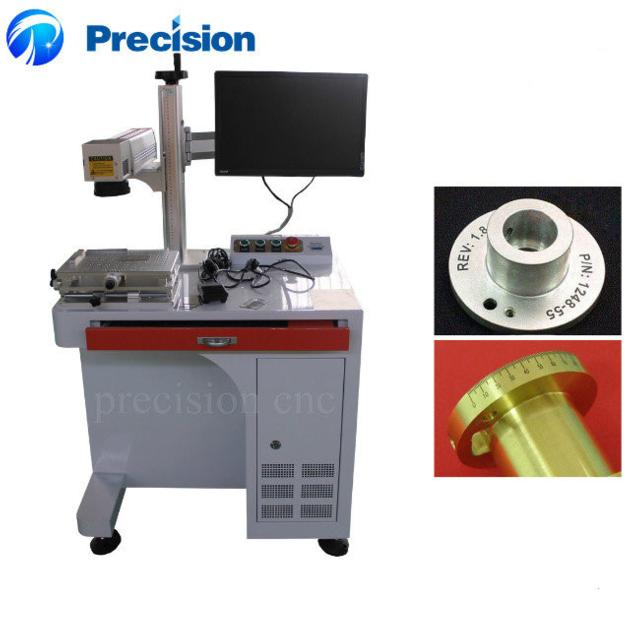

20w 30w 50w Fiber laser marking machine

Choose our reason:
1. Brand New Updating Software
2. More Precise Stepping Motor
3. Reinforced and thickened machine body make transportation absolutely to be safer and longer life time
4. Built heat dispersed fan to reduce all electronic component's temperature
5. Adopt Japan imported advanced motherboard and microchip to make engraving high speed, high accuracy, and machine long-life.
6. Adopt Germany imported bearing and high accuracy stepping belt which not only make the engraving more precise,
also make the machine life time twice to three times than ordinary laser marking machine.
7. Built the micro-active switch to enable the machine do not light when canopy is open which enhance security
8. Support multiple graphic formats including PLT / DXF / BMP / JPG / GIF / PGN and TIF.
9. Life-time free maintenance service

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

3.Parameter of fiber laser marking machine
NO
Model
JP-20W
1.Laser power:Fiber 10W/20W/30W
2.Working area:110*110mm
3.Laser Wavelength:1064nm
4.Response time:0.5ms
5.Frequency of pulse:20-100KHz
6.Max marking depth:≤0.5mm
7.Marking speed:≤7000mm/s
8.Marking lines:1-10 lines(in the marking area)
9.Minimum line width:0.1mm
10.Minimum character:0.15mm
11.Repeatability accuracy:¯0.002mm
12.Resolution ratio:0.1mm
13.Marking content:Text,pattern,date,bar code,etc
14.Operation system:Microsoft Windows XP or Windows 2000
15.Control software:EZCAD control software
16.Graphic format supported:bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
17.Unit power:≤1.2KW
18.Operation temperature:5℃-40℃
19.Relative moisture:≤ 90%,no fog
20.Supply Voltage:220V/50Hz/10A
21.Machine Size:810*650*1560mm
22.Net Weight:160KG
23.Package:Plywood case


5.Configuration of fiber laser marking machine
# Laser power:Fiber 20w
#Laser generator:Wuhan Raycus
# Working area:110*110mm(200*200mm or 300*300mm )
# Beijing Scanzg galvanometer
#Singapore wave length Field lens
# Control system : China PC
# Control software : EZCAD
# Working table : aluminum alloy table
# Red point : clear the working path
# Cooling system : air cooling
#Two years warranty
