20W Laser marking machine
| Price: | US$ 2750 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Qingdao |
Product Details
| Model No.: | MT-F20A | Brand Name: | MORN LASER |
|---|
| Certification: | CE/FDA/ISO 9001 |
|---|---|
| Specification: |
Laser power: 20W MAX
Working Area: 110*110mm Cooling Mode: Air Cooling Laser Wavelength: 10.64 um Frequency of pulse: 20-200 KHz Marking Depth: 0.01-0.1 mm Marking Speed: ≤7000 mm/s Marking Lines: 1-10 lines Minimum Line Width: 0.01 mm Minimum Character: 0.15 mm Repeatability Accuracy: ¯0.001 mm Resolution Ratio: 0.1 mm Marking Content: Text, pattern, date, bar code, etc Operation System:without computer Control Software: EZCAD Control Software Graphic Format : Supported PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF, etc Unit Power: ≤0.8KW Operation Temperature: 5®C-40®C Relative Moisture: ≤ 90%, no fog Power supply requirements: 220V¯10%/50HZ Warranty: 24 months |
Packaging & Delivery
| Packaging: | Fumigation wooden case |
|---|---|
| Delivery/Lead Time: | 7 Days |
| Production Capacity: | 100 sets/mouth |
Product Description
# Desktop type
# Voltage: 220v/50HZ
# Laser power :20W(30W/50W/75W/100W optional)
# Laser source:MAX(Raycus/IPG optional)
# Engraving area : 110*110mm(200/300 optional)
# Aluminum alloy column
# Red point: Clear the working path

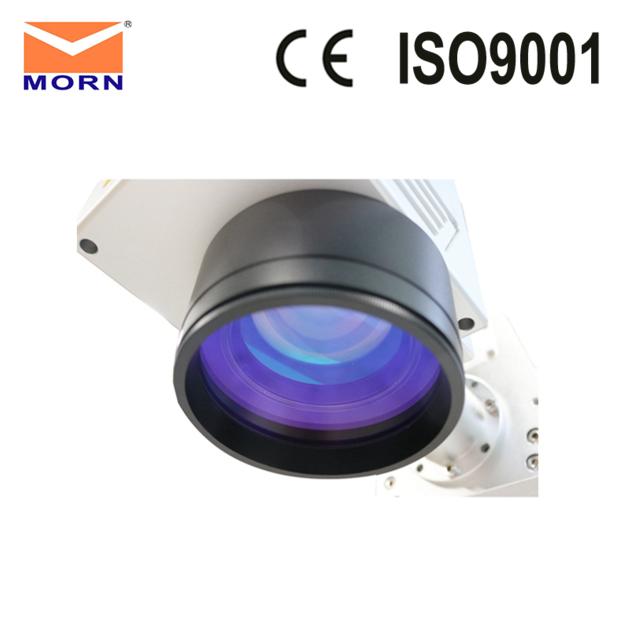

# Marking head: Sino-Galvo brand Galvanometer
# Filed lens: Wavelength
# Control system : with the computer
# Control software : JCZ EZCAD
# Aluminum Alloy Table
# Cooling system : Air cooling
# Foot pedal
# Spare switch
# A set of wrench
# Power Line
# Ruler for measuring focus
Price Term:FOB(If you want us to help you transport to your port or the place you specify, please contact us to confirm the freight)
Payment Term:T/T(If want other,pls contact us)
|
