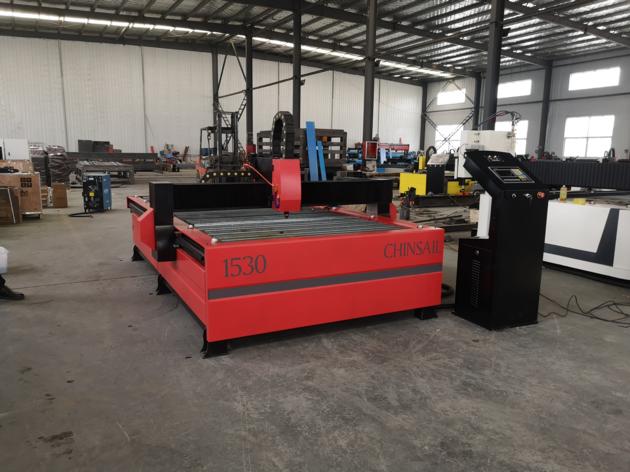

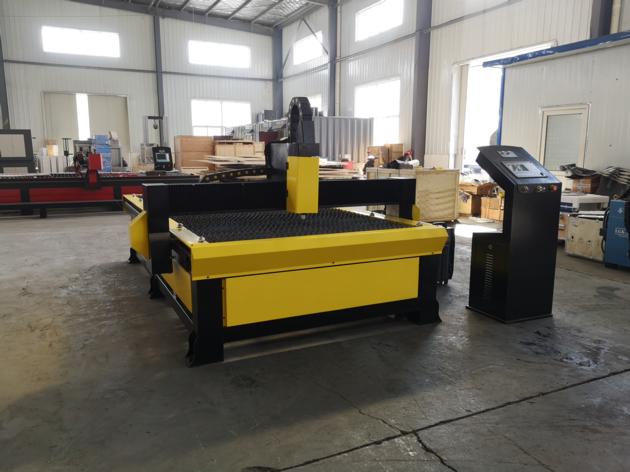

2040 1530 thin mild steel sheet CNC plasma table cutting machine

2040/1530 thin mild steel sheet CNC plasma table cutting machine is especially designed for thin steel plate ( 0-3 mm )fast cutting. It adopts cylinder compacting system to prevent steel plate moving during cutting. It has a very fast cutting speed for the thin plate.
2040 1530 thin mild steel sheet CNC plasma table cutting machine features:
1. The beam uses light structural design, with good rigidity structure, light deadweight and small movement inertia.
2. STARFIRE control system, the file incision and export automatic correction , real-time tracking detection of plasma power in the process of cutting current. The control system uses the U-disk exchange processing document, easy to operate.
3. Z axis adopts Cylinder pressure, so high precision and long life time using are assured.
4. It can apply to iron sheet, the aluminum sheet, the galvanized sheet, hundred steel plates , metal plates and so on. Equipped with other metal equipment, forming the advertising word processing tubeline. Completely solve the traditional manual processing methods. Improve the efficiency of several times.
5. Cutting kerf is small, tidy, and avoid a second dressing processing.
6. High cutting speed, high precision, and low cost and cheap.
7. Support FASTCAM, Astronautics Haire, ARTCAM software, Type3 produce standard G code way document, also can change software to read AUTOCAD software produce DXF form documents.

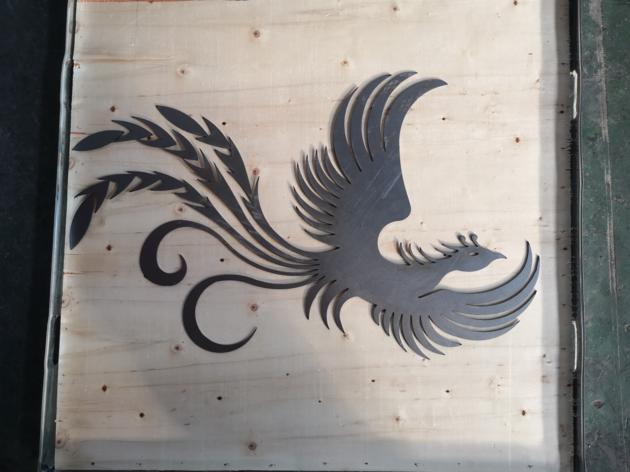

Applicable Materials:
Especially for all kinds of metal materials such as steel, copper, aluminum and stainless steel that thickness less than 8mm cutting.
2040 1530 thin mild steel sheet CNC plasma table cutting machine parameters:

Model RB 1560 2040
Working area (X-Y) 1500mm*6000mm, 2000mm*4000mm
Working material Iron, Steel, Aluminum, sheets, Galvanized, sheets. Titanium, Plates
Working Thickness 0-8mm
Cutting Speed 0-12000mm/min
Power 8.5kw
Input Voltage 380V 50HZ/60HZ
Plasma Current 63A
Connecting Way USB
Working Mode Untouched arc striking
Cooling method With water pump and tank provide circulating water cooling
Rail guide HIWIN square rails
Transmit way Taiwan imported ball screw
Operation language Chinese or English
Command G code, *uoo, *mmg, *plt
Optional power source America HYPERTHERM or China HUAYUAN
Spare parts Electrode ,Electricity nozzle and Water jacket
