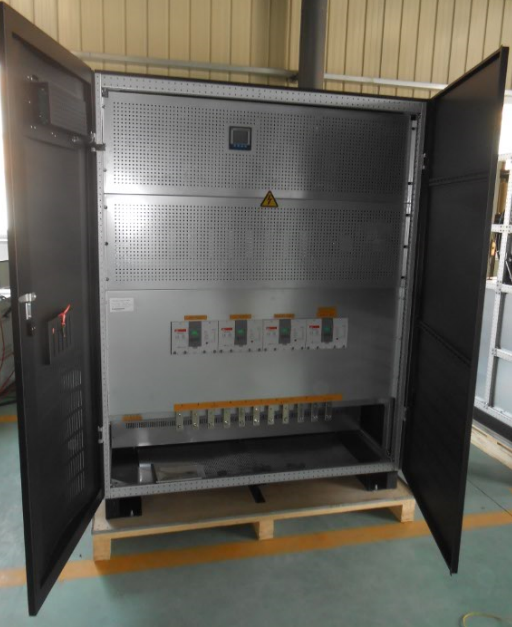

200kw off grid inverter
| Price: | US$ 19500 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | 30% prepayment and the balance against the copy of |
| Port of Export: | Shanghai |
Product Details
| Model No.: | GSI-200KW | Brand Name: | GSO |
|---|
| Certification: | CE ROHS |
|---|---|
| Specification: |
Model GSI360-
Rated power（W） 10K 20K 30K 40K 60K 80K 100K 120K 160K 200K DC voltage 360（384）VDC( rated voltage) Phase Tri-phase+N+G Rated voltage 380VAC¯1%（steady-state load），380VAC¯3%（fluctuation of load） Rated frequency 50Hz¯0.05% Frequency stability ＜¯0.05% Frequency stability:when synchronous ＜¯5% Crest factor 3：1 Output wave Pure sine wave THD linear load＜3%, un-linear load＜5% Dynamic load voltage transient(0-100% jump) ＜¯5% Recovery time ＜10ms Balanced load voltage ＜¯1%；＜¯5%（un-balanced load voltage） Overload capacity 125% 10min，150% 1min Inverter efficiency >90% communication interface RS232，（485, Network remote, optional） working temperature 0～40℃ Relative humidity(non condensation) 30%～90% Max.altitude <1000mts(decrease 1% when the hight increase every 100mts,max.5000mts) cooling method forced cooling noise dB 45～55 Case color Black(optional) Input cable bottom/front easy maintenance front/top/left and right side all can be opened Weight(kg) 220 300 400 480 750 900 1000 1200 1400 1800 Dimension W×D×H（mm） 480*840*1228 765*640*1610 1040*815*1735 1105*900*1810 1490*1100*1910 |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 30 days |
| Production Capacity: | 50pcs/month |
Product Description

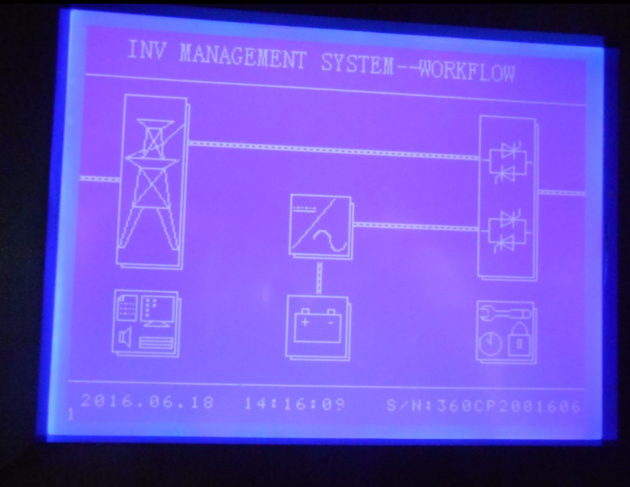

The 360-200KW inverter is one kind of three phase inverter with full digitalization. It is a high intelligent product which is integrated with digitization, informatization and networking, it has the powerful information collection system, signal handling equipment, detection system and perfect protection system. The 360-200KW inverter is widely used in all kinds of electricity environment, personalized design, friendly man-machine conversation functions. The touch screen LCD display is the newest-developed power source display module by our company, which is using the most popular and the most intuitive graphical interface. Comparing with the normal LCD display module, this touch screen LCD display have no complicated operation steps, users can get the concerned information directly when press the simulation button on the display, the operation is easy to understand. And at the meantime the touch screen LCD display module has the real time clock and memorizer. It can record 256 event logs and other settings information.
|
