2000L 3000L 5000L Commercial Beer Brewery Equipment Stainless Steel

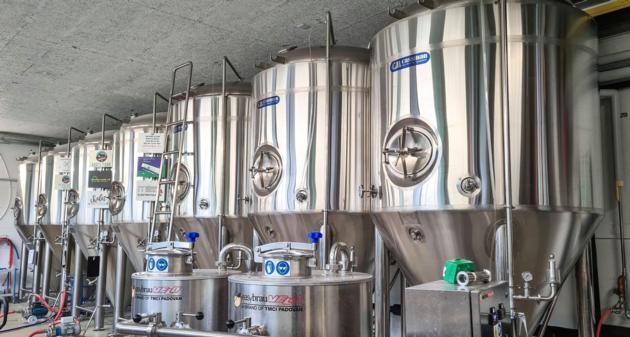

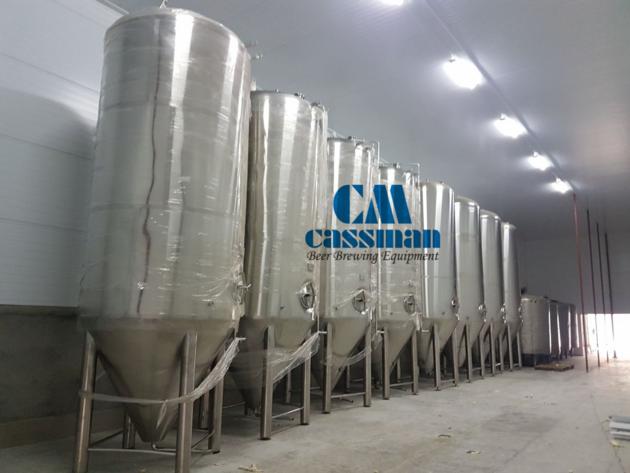

Fermenter&BBT System:

-Capacity:2000L,3000L,5000L, +25% Head space
-Interior shell thickness 3-6mm, Exterior shell=2mm, SUS 304 material
-100% TIG welding with pure argon gas shield
-Interior finish:Pickled and passivated, external polished, 80mm insulated
-Test pressure 3 bar, working pressure 1.5 bar
-Glycol zones (Both on side and concial/bottom)
-Level tube & carbonation stone for chocie
-60®conical bottom for Fermener, Sanitary side manway (top for option).
-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
-24V solenoid valve.Dial Thermometer.Thermowell sensor.
-Mechanical relief valve 3 bar on CIP arm with pressure gauge
-Adjustable tank leveling pads, Lifting ear, Ladder Hooks.

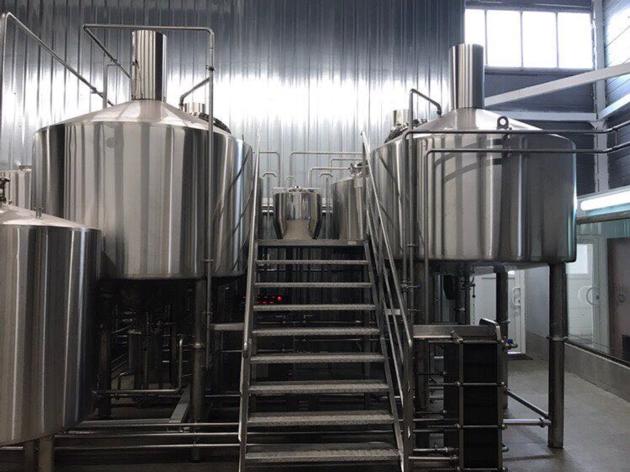

Brew House System :

-Two-Four vessles or combined system.

-Capacity 2000L, 3000L, 5000L.

- Steam heated, electrical heated or natural gas

-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.

-Lauter tun with rake system, milled false bottom, sparging spray ring,VFD motor, insulated 80mm.

-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.

-Whirlpool with Tangential whirlpool inlet. insulated 80mm. Stainelsss steel 304.

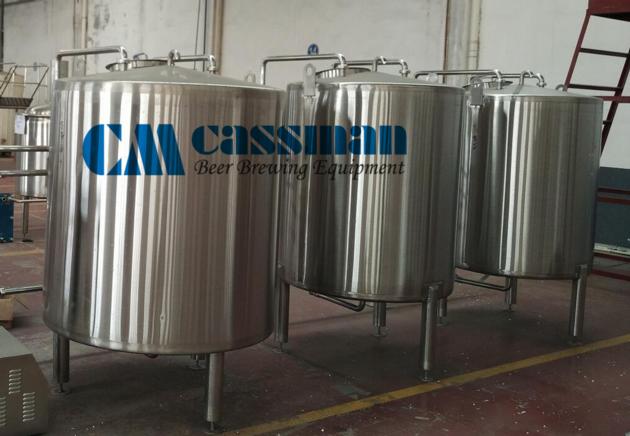

-Insulated HLT and CLT with the pipelines and pumps

-External grant, hops back, heat exchanger.Wort oxygenation system, working platform etc.

-All the necessary pipelines and pumps.
