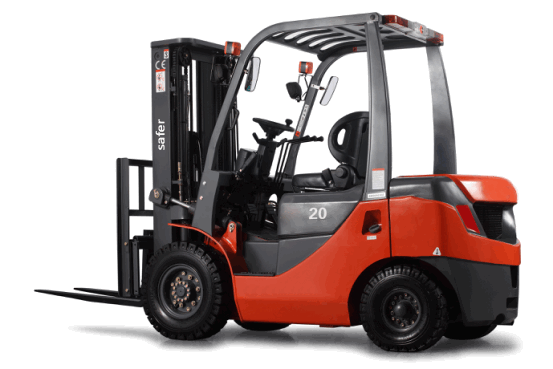

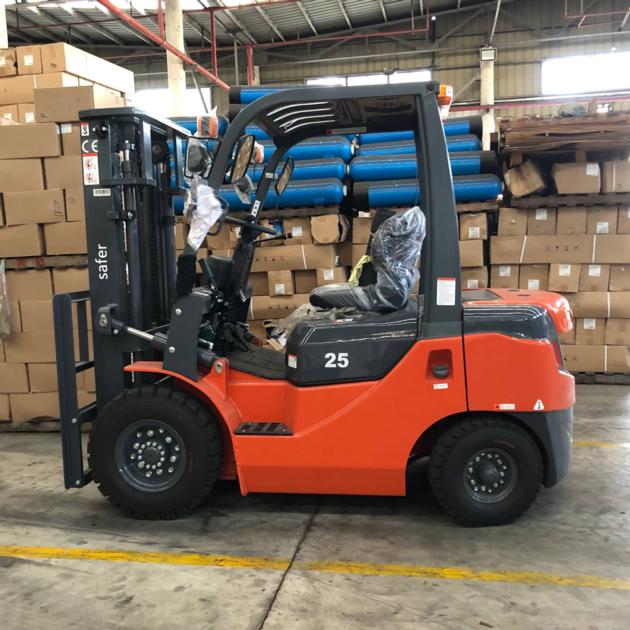

2 tons diesel forklift trucks with CE
| Price: | US$ 7000 |
|---|---|
| Minimum Order: | 1set |
| Payment Terms: | 30% TT as deposit, balanced before shippment |
| Port of Export: | Shanghai |
Product Details
| Model No.: | FD20 | Brand Name: | Saferlifts |
|---|
| Certification: | CE SGS |
|---|---|
| Specification: |
Basic Info Model NO.: FD20 Type: Forklift Load Capacity: 1T - 5T Load center: 500mm Condition: New Color: Orange/Blue/White Tyre: Pneumatic/Solid Transport Package: in Nude Origin: Shanghai, China Cab Location: Option Power: Diesel Engine Fuel: Diesel Lift height: 3000mm-6000mm Mast: 3-6m Engine: Imported/Chinese Engine Trademark: Saferlifts Specification: CE/SGS HS Code: 84272090 Product Description Customer Question & Answer 2ton diesel forklift with Japanese ISUZU engine 1. Wide-view mast gives the operator an enhanced forward visibility, which adds greatly to the efficiency and safty of operator. 2. Specially designed solid over-head guard provides additional security for the operator. 3. Super and non-slip step make operating covenient and safe. 4. The powerful engine ensures GOOSENSE trucks high handing performance and offers an intrinsically safe and efficient operation. 5. This popular feature allows operator to adjust seat to their preferrd position of operation comfortable and free. 6. The instruments offer an easy access to the working condition of the truck, thus makes handling process more efficient and safe. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 15 days |
| Production Capacity: | 2000kg |
Product Description
FD20B-W1 DIESEL FORKLIFT SPECIFICATION General 1 Model FD20B-W1
2 Power Type Diesel
3 Rated Capacity kg 2000
4 Load Centre mm 500
Characteristic& Dimension 5 Lift Height mm 3000
6 Free lift height mm 120
7 Fork Size L× W× T mm 1070× 122× 40
8 Mast Tilt Angle F/R Deg 6« /12«
9 Front Overhang (Wheel center to fork face) mm 482
10 Rear overhang mm 378
11 Ground ClearanceBottom of mast mm 110
12 Overall Dimension Length to face of fork(Without fork) mm 2460
13 Overall Width mm 1150
14 Mast Lowered Height mm 1985
15 Mast Extended Height(With backrest) mm 4030
16 Overhead Guard Height mm 2070
17 Turning Radius (outside) mm 2170
18 Min. right angle asisle width mm 1970
Performance 19 Speed Travel (No load) km/h 20
20 Lifting (Full load) mm/s 510
21 Lowering(Full load) mm/s 450
22 Max. Drawbar Pull(Full load) kn 13.5
23 Max. Gradeability (No load/Full load) % 20
Chassis 24 Tire Front mm 7.00-12-12PR
25 Rear mm 6.00-9-10PR
26 Tread Front mm 970
27 Rear mm 970
28 Wheelbase mm 1600
29 Service weight kg 3350
Power& Transmission 30 Battery Voltage/Capacity V/Ah 12/90
31 Engine Model C240 PKJ
32 Manufacture ISUZU
33 Rated output/r. p. m. kw 34.5/2500
34 Rated torque/r. p. m. N@ m 139/1800
35 No. of Cylinder 4
36 Bore× Stroke mm 86× 102
37 Displacement cc 2369
38 Fuel Tank Capacity L 70
39 Transmission Type Powershift
40 Stage FWD/RVS 1/1
|
SUPPLIER PROFILE
|
|||
|---|---|---|---|
| Company: | Shanghai Saferlifts Machinery Co., Ltd | ||
| City/State | Shanghai, Shanghai | Country: |
China
|
| Business Type: | Export - Manufacturer / Trading Company | Established: | 2006 |
| Member Since: | 2019 | Contact Person | saferlifts forklift |
