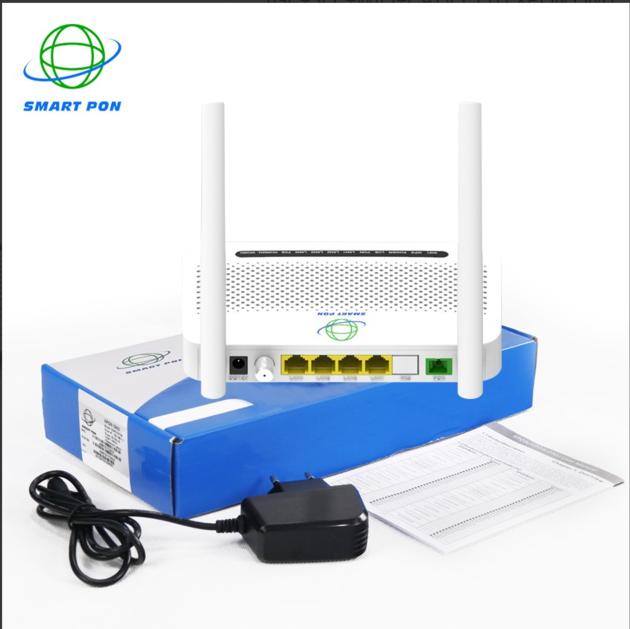

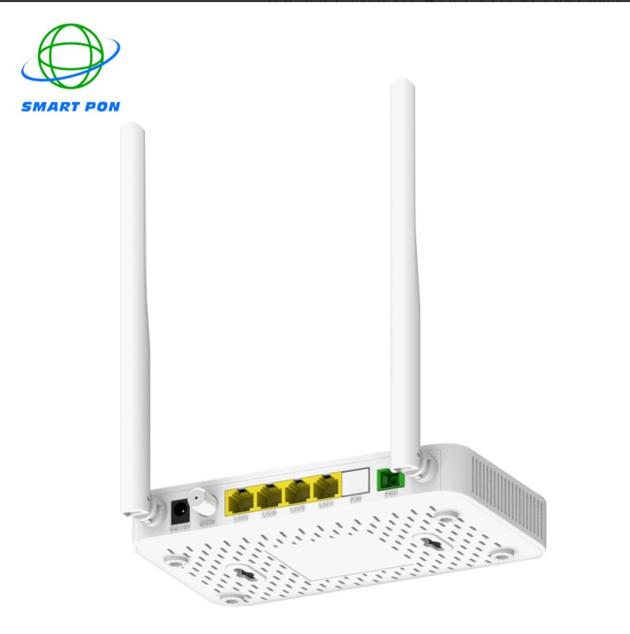

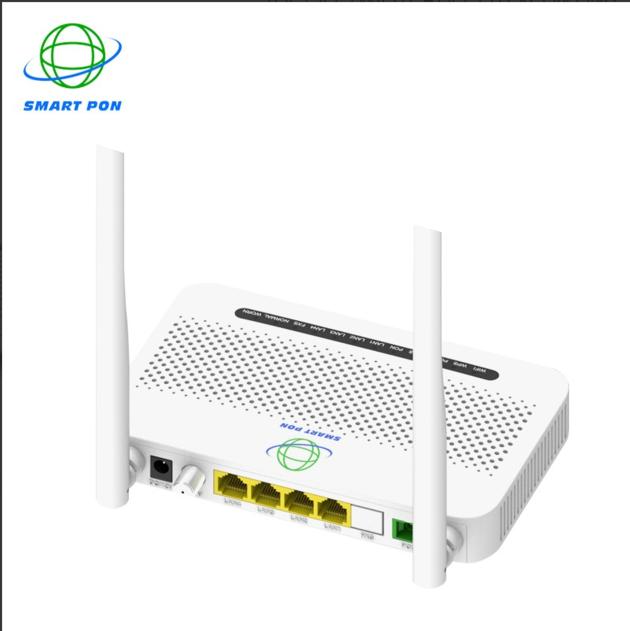

1GE+3FE+WIFI+CATV FTTH XPON ONU
| Price: | US$ 19$ / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | SUR3110XR | Brand Name: | SMART PON |
|---|
| Certification: | |
|---|---|
| Specification: |
Technical item Details PON Interface 1 GPON BOB （Class B+/Class C+） Receiving sensitivity: ≤-27dBm/≤-29dBm Transmitting optical power: +0.5~+5dBm/+2~+7dBm Transmission distance: 20KM Wavelength TX: 1310nm, RX: 1490nm Optical Interface SC/APC Connector Design Scheme RTL9603C+RTL8192FR BOB(i7525BN) Chip Spec CPU 950MHz,DDR2 128MB Flash SPI Nor Flash 16MB LAN Interface 1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector Wireless Compliant with IEEE802.11b/g/n, Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps, 2T2R,2 external antenna 5dBi, Support: Multiple SSID Channel: Auto Modulation type: DSSS, CCK and OFDM Encoding scheme: BPSK, QPSK, 16QAM and 64QAM CATV Interface RF, WDM, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550¬10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: 78dBuV AGC range: -13~+1dBm MER: ≥32dB@-15dBm LED 11 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN4、 Worn、 Normal(CATV) Push-Button 3,For Function of Reset, WLAN, WPS Operating Condition Temperature: 0℃~+50℃ Humidity: 10%～90%（non-condensing） Storing Condition Temperature: -30℃~+60℃ Humidity: 10%~90%（non-condensing） Power Supply DC 12V/1A Power Consumption ≤6W Dimension 162mm×98mm×32.7mm（L×W×H） Net Weight: 0.17Kg |
Packaging & Delivery
| Packaging: | ONU, Power Adapter |
|---|---|
| Delivery/Lead Time: | 1 |
| Production Capacity: | 100000 |
Product Description
Model Number:SUR3110XR Type:FTTH Solutions
Use:FTTH
Application:FTTH FTTB FTTX Network
LAN Interface:1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE)
PON Interface:1 GPON BOB Class B+/Class C+
Optical interface:SC/APC connector Single Fiber
Transmission Distance:20km
Wavelength:Tx1310nm/Rx1490nm
Power Consumption:≤6W
DC power supply:+12V,1A
Transmitting optical power:+0.5~+5dBm/+2~+7dBm
Warranty:1 Year
1. Overview
* SUR3110XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* SUR3110XR is based on mature and stable, cost-effective XPON technology.
* SUR3110XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X.
2.Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 2.4G WIFI and 2*2 MIMO
* Support CATV interface for Video Service and remote control by Major OLT
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system

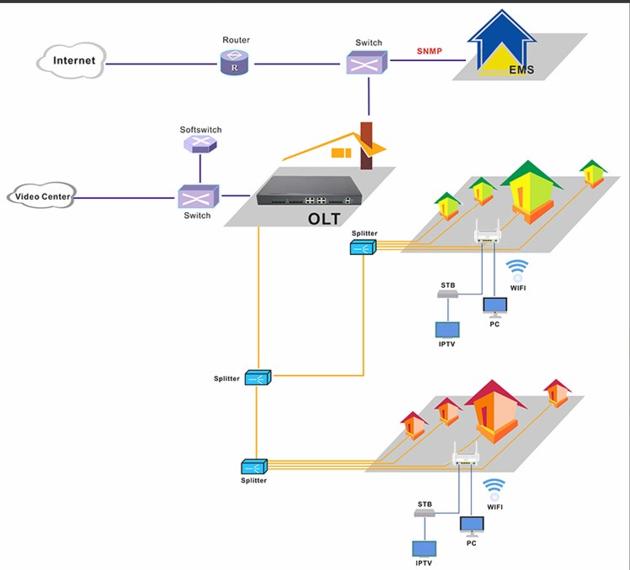

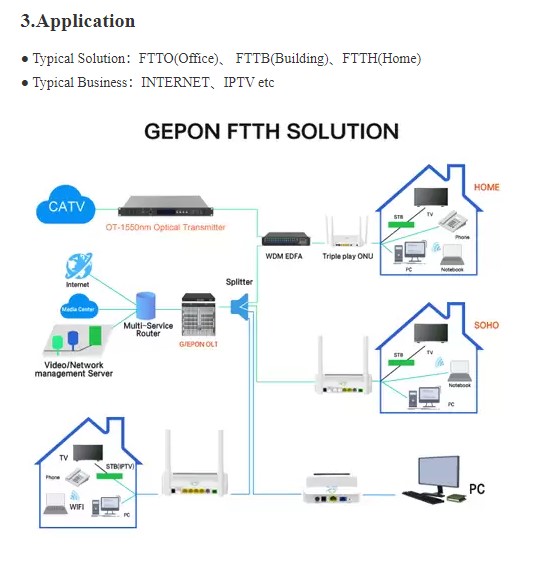

3.Application
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Business：INTERNET、IPTV etc
|
