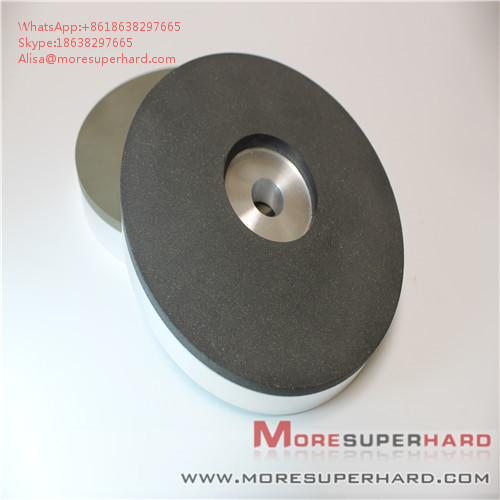

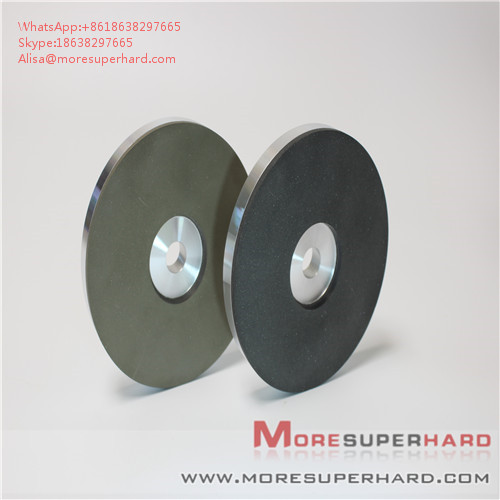

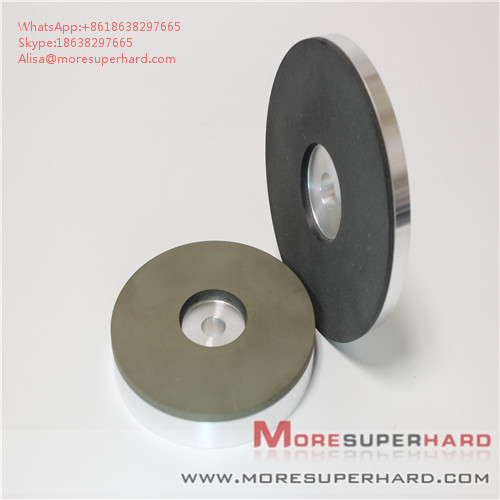

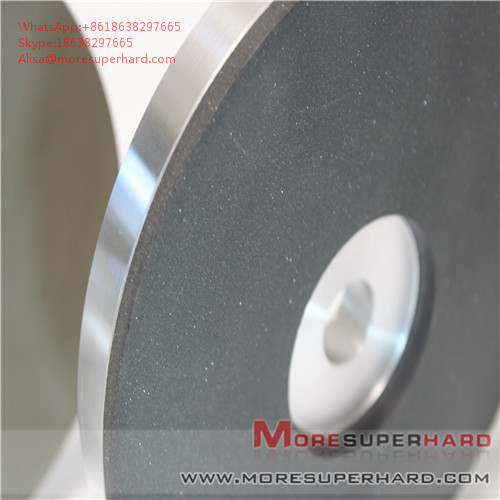

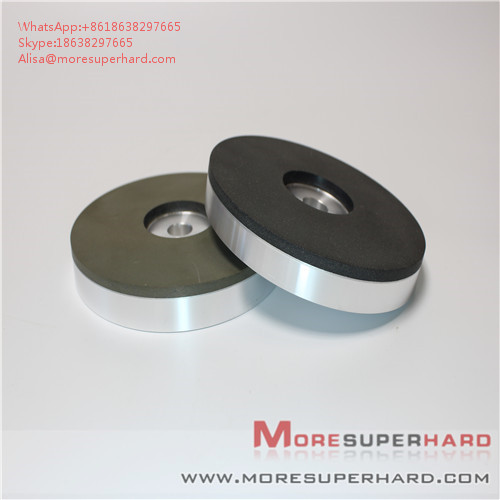

1A1 resin bond CBN abrasive disc processing tool steel [email protected]

Introduction to resin diamond grinding wheel
The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materials. Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.

1:Name:1A1 resin bond CBD grinding mill tool steel
2:Type Code: 1A1
3:Material: Diamond, CBN
4:Size: D. 25-500mm; T. 5-40mm; H. 10-127mm.
5:Line speed: 35~80 (M/S)
6:Grit: 80#~5000# (D251-D1)
7:Application Industry: Jewelry, Automobile, Aerospace, Oil drilling, Coal mining, Metal processing
8:Certification: ISO 9001:2008
9:Diamond grit: #100, #150, #200, #300, #400, or upon your request
10:Type: straight wheel, bowl-shaped wheel, cup-shaped wheel, dish- shaped wheel
tapered one side or two sides and so on

Product Feature
1:Easy to dress
2:Good self-sharpening
3:High finishing of work piece
4:Specially for precision grinding and polishing





Resin bond diamond grinding wheel model:
1: parallel grinding wheel
2: parallel arc grinding wheel
3: double-sided concave grinding wheel
4: double bevelled grinding wheel
5: bowl wheel








The diamond resin grinding wheel has good polishing effect, and the grinding wheel is sharp and difficult to plug. The specific features are as follows:
1. High grinding efficiency and relatively slow grinding wheel consumption;
2. Good self-sharpening, low calorific value during grinding, easy to clog, and reduce working burn during grinding;
3. The grinding wheel has a certain elasticity, which is conducive to improving the roughness of workpiece surface. It is mainly used in fine grinding, semi-fine grinding, knife grinding, polishing and other processes;
4. The diamond resin grinding wheel is solidified at low temperature with short production cycle and simple equipment and supply process;Because the resin has fluidity, easy to form complex surface grinding wheel.

product classification
Diamond resin grinding wheel (resin knife grinding wheel) can be selected according to product models (parallel grinding wheel, parallel with arc grinding wheel, double concave grinding wheel, double hypotenuse grinding wheel, bowl shaped grinding wheel).
1.Parallel wheel: mainly used for grinding of carbides and cutting edge
2.Parallel - belt arc grinding wheel: mainly used in forming grinding of carbide and arc surface
3.Double concave grinding wheel: mainly used for grinding measuring tools and non - core grinding machine
4.Double bevelled grinding wheel: mainly used for forming grinding of carbide gear hob and thread cutter
5.Bowl wheel: mainly used for cutting edge grinding of carbide cutting tools, high - speed steel cutting tools, also used for milling

1A1 Diamond grinding wheel is used for machining of conical,cylindrical and flat surface,cylindrical and conical aperatures. Our 1A1 diamond grinding wheels include ceramic diamond bruting wheel for natural diamond polishing, resin diamond grinding wheel for HVOF tungsten carbide coating, cylindrical diamond grinding wheel for PCD tools, CBN grinding wheel for crankshaft and camshaft grinding,vitrified diamond grinding wheel for rough and precision PDC cutter, etc

Model D (mm) T (mm) H (mm) X (mm)
1A1 25 12 6 6
50 12 6 6
100 12 12 10
300 25 12 10
400 25, 50 127 10, 25
500 25, 50 127 10, 25
600 25, 50 254 10,16,25
750 25, 50 304.8 50
914.4 25, 50 304.8 25, 50
1100 25, 50 304.8 50
Other specification can be made according to customer requirement

Advantages Of Resin Diamond Grinding Wheel:
1.High Cutting Efficiency,Good Self-Sharpening, Less Blocking,Reducing The Grinding Burn Occurs When The Phenomenon Of Work
2.Good Flexibility Will Help To Improve The Surface Roughness, Mainly Used For Rough Grinding, Semi-Fine Grinding, Polishing And Other Processes
3.Compared To Conventional Silicon Carbide , Resin Diamond Wheel Has Good Material Removal Rates, Longer Wheel Life And Lower Grinding Costs
4.Resin Bond Diamond Wheels Generally Remove Material Up To Ten Times Faster Than Metal Bond Wheels
Production process of Resin bond diamond grinding wheel

1. Mix: the binders and diamond powder are fully stirred and fused in a certain proportion
2. Weighing: weighing according to the volume, ring width and density of the grinding wheel required by the customer
3. Feeding: put mixed diamond powder and binding agent into the grinding tool
4: compression ring (let stand for a period of time to wait for molding)
5: back mould
6: the abrasive layer is air-dried
Cook for 10 hours at 7:670 degrees
8: cooling (prepare the matrix at the same time)
9. Fixed decoration of the whole
10: measure stationarity


FAQ:
Q1. Can negotiate the price?
A: yes, you can. We will give some discount according to your quantity.
Q2. How can now my order’s production progress?
A: we will keep closely track the production and shipment progress. And we will inform you with the newest progress about producing and shipping.
Q3. How can you ensure your quality?
A: We have pass the ISO 9001:2008. If there is any problem with our products, please send me the detailed picture of the problem, once we verify it, we will change the products for you within 30 days.
Q4: When I contact you is suitable?
You can contact Us at any time, we promise that we will reply you within 12 hours.
A:So, please contact me for more information about our product, service and related issues.


Why choose our product
More SuperHard Products Co., Ltd is dedicated to finding solutions that help our clients in all markets succeed. More SuperHard has been manufacturing high-quality, competitively priced superabrasive diamond and cbn tools that are designed to perform in a wide range of industrial ,such as pcd tools grinding, natural diamond polishing, auto parts processing , thermal spray coated industry, optical glass, semicon and led industry, woodworking tool , cnc tool grinding and roll machining ,others ultral precision industry.
The company production and sales of products covered vitrified bond tools, resin bond tools, metal bond tools, electroplated diamond/cbn tools, vaccum brazed products, cvd diamond tools, polycrystalline diamond (pcd) tools, cubic boron nitride (cbn) tools.our objective is to meet all the customers’ needs and help every customer achieve maximum benefits.  more brings in revenue for you, you win, we win!
More SuperHard supplies the wheels for several application mainly:
1.Carbide round tools on cnc machines : flute grinding, gash grinding, end facing, clearance angle and cylindrical grinding .
2. Insert grinding for machines such as: agathon, wendt, haas, waida and ewag.
3.Woodworking saw blade and tools .
4.Hss tools
5.Cutting wheels
Products Range:
1. vitrified bond/resin bond/Metal bond/Electroplated diamond grinding wheel & other diamond tools
2. PCD milling tools, PCD turning tools, PCD drilling tools, PCD engraving tools, PCD/pcbn inserts, PCD/pcbn cutting tools, PCD/pcbn grooving tools, CBN inserts
3. PCD/TSP diamond, CVD diamond tools, large size synthetic diamond, Natural diamond tools, diamond abrasive tools
4. diamond grinding&cutting discs, diamond cutting blade, diamond cup wheel, diamond dressers
5. Roller cutting tools, PDC cutters, PDC drill bits& PDC core bits
6. PCD tool grinder & PCD grinding machine

Our product’s advantages:
1.High grinding efficiency
2.Wonderful edge quality
3.Long service life
4.High polishing efficiency
5.Large Exports
6.Considerable after-sell service
7.Amazing performance
8.Various types and sizes available
9.Direct Factory Manufacturer
10.Backing/substrate material: Aluminum
11.Abrasive layer: diamond
12.Bond: vitrified
13.Excellent cutting edges
14.Reduced cycle times
15.Custom Engineered


If you have any questions, please contact us
Whats App:+8618638297665
Skype:18638297665
*
Tel:18638297665
URL:*

To meet your requirements
In every way, we need the following information.
1. Shape and Dimension of the wheels
2. Grit size (Mesh, refer to Table#1)
3. Concentration
4. Bond (Resinoid, Vitrified, Metallic, Electroplated)
5. Quantity
