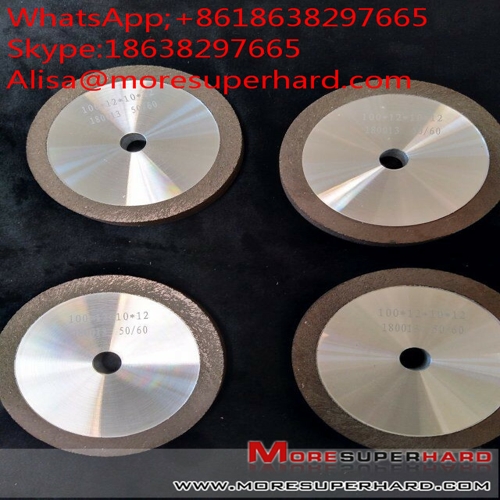

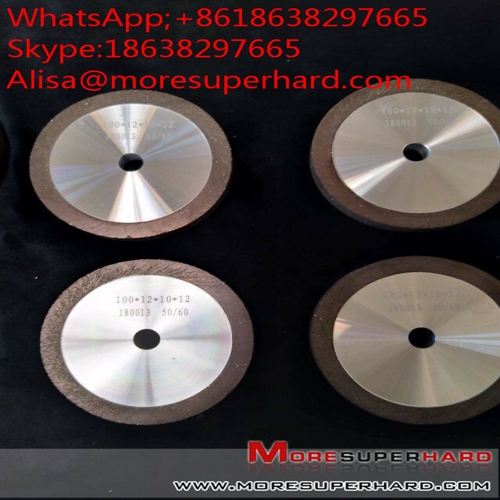

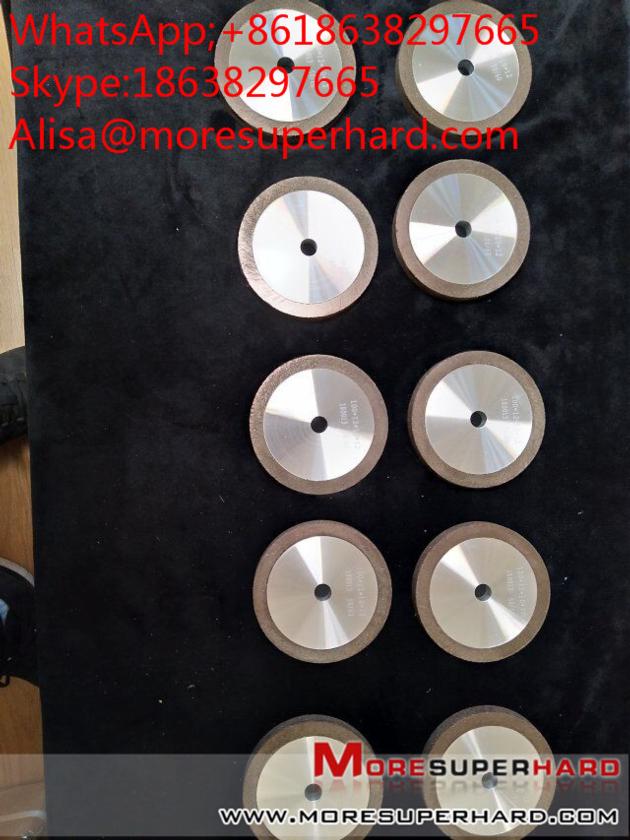

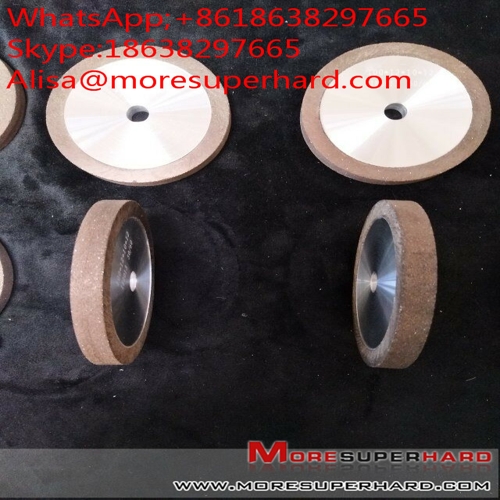

1A1 Resin bonded diamond parallel cutter grinding wheel [email protected]

Introduction to resin diamond grinding wheel
The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materials. Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.

Production of diamond grinding wheel with resin binder:
Resin as the bond material, metal powder, metal oxide, ordinary abrasive as filler mix to make the binding agent. The abrasive and binder are mixed into the molding material according to the requirements of concentration. The product is formed by hot pressing, curing and subsequent processing

Feature
1:Name:Resin bond wheels
2:Type Code: 1A1, 3A1, 11A2, 14A1,1 6A1,6A2, 12A2, 12V2, 6A2T, 11V2, 9A1, 1A1R,
3:Material: Diamond, CBN
4:Size: D. 25-500mm; T. 5-40mm; H. 10-127mm.
5:Line speed: 35~80 (M/S)
6:Grit: 80#~5000# (D251-D1)
7:Application Industry: Jewelry, Automobile, Aerospace, Oil drilling, Coal mining, Metal processing
8:Certification: ISO 9001:2008
9:Diamond grit: #100, #150, #200, #300, #400, or upon your request
10:Type: straight wheel, bowl-shaped wheel, cup-shaped wheel, dish- shaped wheel
tapered one side or two sides and so on

Product Feature
1:Easy to dress
2:Good self-sharpening
3:High finishing of work piece
4:Specially for precision grinding and polishing


Resin bond diamond grinding wheel model:
1: parallel grinding wheel
2: parallel arc grinding wheel
3: double-sided concave grinding wheel
4: double bevelled grinding wheel
5: bowl wheel



Application of resin bond diamond grinding wheel:
Resin-bonded diamond grinding wheel has high hardness, high strength and strong grinding ability. It is mainly used to grind high and hard alloy, non-metal material, hard and brittle hard alloy, non-metal mineral, etc. Such as hard alloy, PCBN, cubic boron nitride integral and welding tool, ceramic, agate, optical glass, semiconductor materials and wear-resistant cast iron, stone, etc

.
Application of Resin diamond grinding wheel
1： machining tungsten carbide
2：ceramic materials
3：magnetic materials,
4：silicon materials
5：thermal spraying alloy materials

Resin diamond wheel products
1：resin cup diamond wheel
2:resin diamond polishing wheel
3: CNC resin diamond grinding wheel
4:resin diamond cutting wheel
5:resin diamond wheel for glass
6:resin centerless grinding wheel
Production process of Resin bond diamond grinding wheel
1. Mix: the binders and diamond powder are fully stirred and fused in a certain proportion
2. Weighing: weighing according to the volume, ring width and density of the grinding wheel required by the customer
3. Feeding: put mixed diamond powder and binding agent into the grinding tool
4: compression ring (let stand for a period of time to wait for molding)
5: back mould
6: the abrasive layer is air-dried
Cook for 10 hours at 7:670 degrees
8: cooling (prepare the matrix at the same time)
9. Fixed decoration of the whole
10: measure stationarity
7: resin diamond profile wheel

Why choose our product?
Our product’s advantages:
1.High grinding efficiency
2.Wonderful edge quality
3.Long service life
4.High polishing efficiency
5.Large Exports
6.Considerable after-sell service
7.Amazing performance
8.Various types and sizes available
9.Direct Factory Manufacturer
10.Backing/substrate material: Aluminum
11.Abrasive layer: diamond
12.Bond: vitrified
13.Excellent cutting edges
14.Reduced cycle times
15.Custom Engineered


If you have any questions, please contact us
WhatsApp:+8618638297665
Skype:18638297665
*
Tel:18638297665
URL:*
Please provide us details when you order, For example,
Product needed: Resin bond diamond grinding wheel
1) Diameter   (25, 40,100,200,300…750mm)
2) Hole/state bore dimension
3) Thickness   (4/5/6/8/10/…40/50/60mm)
4) Shape (1A1 /1A1R/1A8/1A1W/1L1/1F1/6A2/12A2/11V9/4A1/14A1…)
5) Grit size (16/18, 18/20…40/45,80/100…325/400. In GB or ISO standard)
6) Other request
