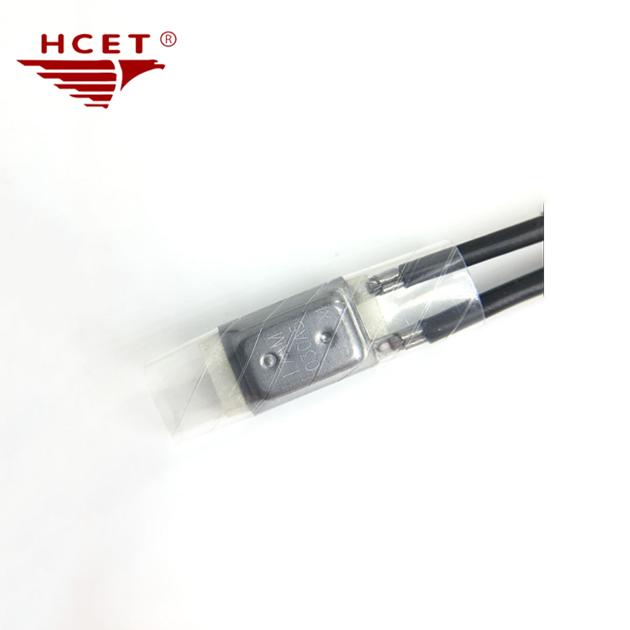

17AM Series Thermal Protector
The 17AM series thermal protector is a both temperature and current sensitive protector. It has a small size but high capacity. The applications are motors, lighting and home appliances.
Special Features:
● Temperature is 100% calibrated.
● Snap action.
● Both temperature and current sensitive.
● Type and length of wires are optional.
● Terminals can be same or opposite end.
● 100% comply with RoHS.
Electrical Characteristics:
● 20amps/16volts DC
● 10amps/250volts AC
● 20amps/125 volts AC
Technical Parameters:
● Available with nominal calibration temperatures from 50℃ to 180℃.
● Tolerance Code: ¯3℃,¯5℃.
Main applications are as follows:
● Various motors
● Pumps, air compressor, and cleaners
● Fluorescent ballasts and lightings
● Heating pad, electrical blankets
● Electrical tools, chargers, transformers
● Home appliances, heating appliances
Product Coding:
17AM *** * * + A10

MODEL NO. Ⅰ Ⅳ V WEEK AND YEAR OF CALIBRATION
TEMPERATURE CODE Ⅱ Ⅲ TOLERANCE CODE
TERMINAL SHAPE
NO. Comments
Ⅰ MODEL NO. : 17AM Series Thermal protector .
Ⅱ TEMPERATURE CODE: From 050(50℃) to 180(180℃);
Ⅲ TERMINAL SHAPE: A: A TYPE, B: B TYPE
Ⅳ TOLERANCE CODE: ¯ 3℃, ¯ 5℃;
V YEAR OF CALIBRATION: A=2000 through Z=2025;
WEEK OF CALIBRATION: 1~52 possible
