160ton beam launcher equipment used in bridge construction
| Price: | US$ 200000 |
|---|---|
| Minimum Order: | 1 Set/Sets |
| Payment Terms: | L/C,T/T,L/C+T/T |
| Port of Export: | Qingdao, Shanghai or Tianjin Port, China |
Product Details
| Model No.: | BL | Brand Name: | Shenghua Heavy Crane Group |
|---|
| Certification: | CE ISO GOST |
|---|---|
| Specification: |
Feature: Bridge Crane.
Condition: New. Application: subway,bridges,viaducts,highway,expressway,railway. Rated Loading Capacity: 80ton--160ton. Rated Lifting Moment: 1600kn, 800Kn--1600kn. Max. Lifting Load: 160t. Max. Lifting Height: 10m. Span: 30m-50m. Place of Origin: Henan, China (Mainland). Model Number: BL. Certification: CE ISO GOST. Warranty: 12 months. After-sales Service Provided: Engineers available to service machinery overseas. Product Name: 160ton bridge construction beam launcher equipment. Girder Type: Double Truss. Maximum longitudinal slope: ≤5%. Maximum Transverse slope: ≤4%. Skew Bridge Angle(¬): 45¬. Minimum horizontal radius: 300m. Motor: Chinese famous brand or SEW, SIMENS. Electrical: Schnider, SIMENS or as request. |
Packaging & Delivery
| Packaging: | electrical equipment are packaged by high quality plywood crates,main beams are packaged by plastic |
|---|---|
| Delivery/Lead Time: | Shipped in 40 days after prepayment |
| Production Capacity: | 50 Set/Sets per Month |
Product Description
Product Description

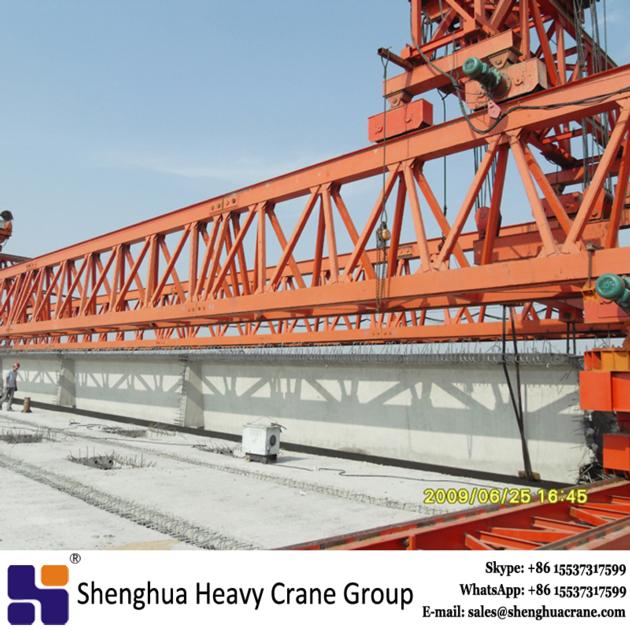

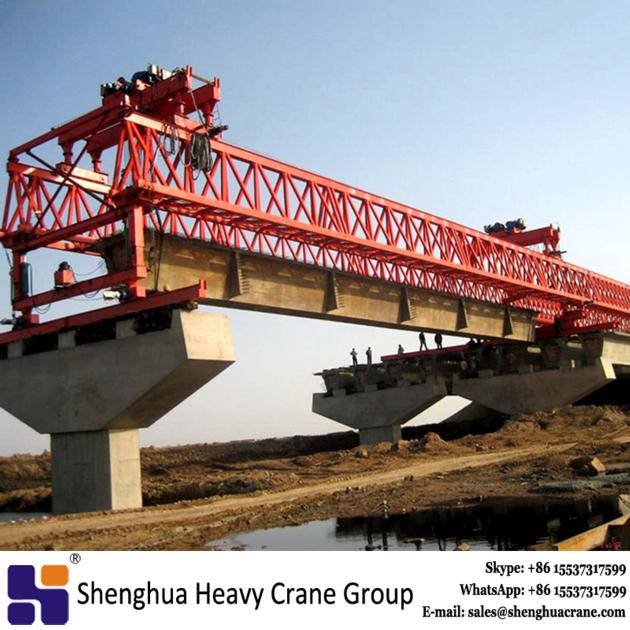

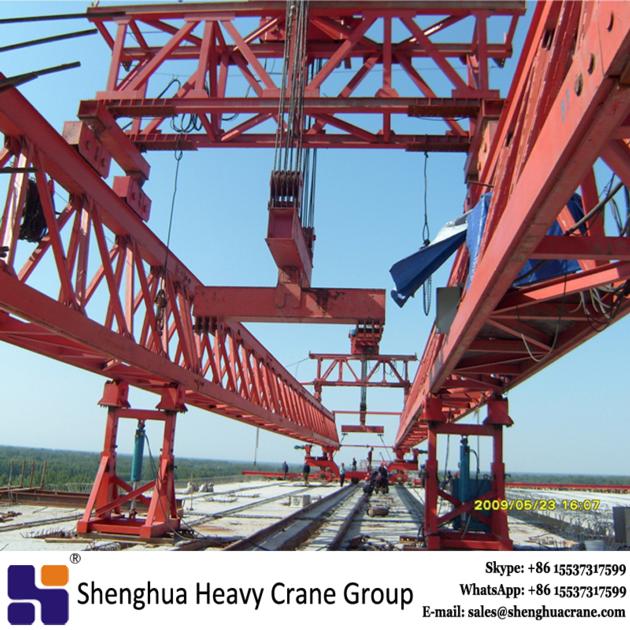

The unique 160ton bridge construction beam launcher equipment is designed for subway project. According to the situation of present railway with less subgrade, more bridges and tunnels which connected too closely, our company design and manufacture the new and special beam launcher. It is mainly used for lifting concrete girders in bridge construction in general railway and highway projects.
This patented product is an excellent piece of equipment for erecting Bridge Beams; whether steel or precast concrete, any shapes or sections, with curve or straight, with slope, skew or super-elevation.
The Beam Launcher comes with centralize control system, multi-speed Crane and Wagons, Hydraulic powered Support, Mechanical powered Self Advancing system, and spare-parts.
Safety Features
Safety is the most important issue for cranes.To ensure the safety, the following safety devices are equiped in 160ton bridge construction beam launcher equipment.
▪ Crane traveling limit switch.
▪ Overload protection device.
▪ Lifting height limit device.
▪ Voltage lower protection function .
▪ Phase sequence protection function.
▪ Emergency stop function.
▪ Rain cover for outside hoist, driving units, electric cubicle.
▪ Warning indicator : flashing nights and warning sounds.
▪ Wire-less infra-detector for anti-collusion.
|
