160W car power inverter 18W QC3.0 charger 24W 3*usb sockets 12V 110V 60Hz
| Price: | US$ 12 |
|---|---|
| Minimum Order: | 1000pcs |
| Payment Terms: | TT |
| Port of Export: | China |
Product Details
| Model No.: | HYD-MD160W | Brand Name: | HENYED |
|---|
| Certification: | CE.ROHS |
|---|---|
| Specification: |
Input voltage：DC11-14V

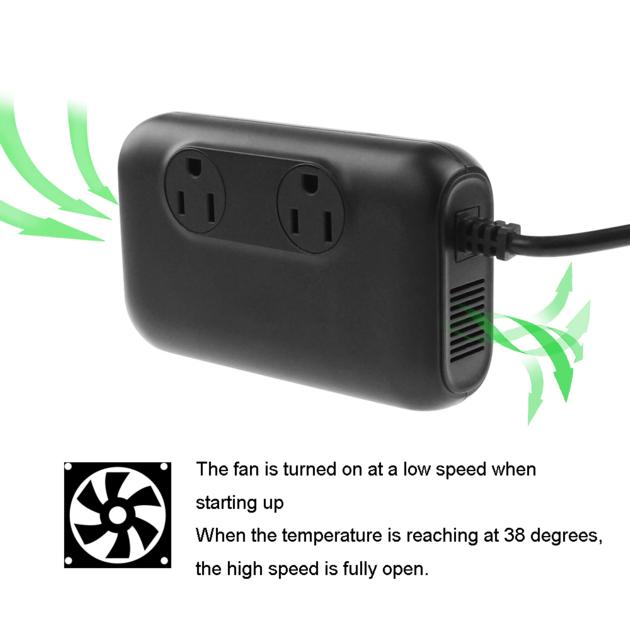

No-load current：≤0.4A Case temperature：≤50℃（full load） Cooling：Fan（the fan is work at a low speed When the machine is turned on, and at fast speed when temperature around 38 degrees） Switch：Control inverter part except USB Continous power：200W（power inverter 160W+QC3.0 18W+USB24W） Output voltage：110VAC¯10% Frequency：60HZ¯2HZ Wave:Modify sine Efficiency：88%（MAX） Over-load protection：200W¯30W Temperature protetion：65¯5℃（Internal ambient temperature） Low-voltage protection：10.0V¯0.5V Over-voltage protection：15.5V¯0.5V Short-circuit protection：Yes LED light：work status |
Packaging & Delivery

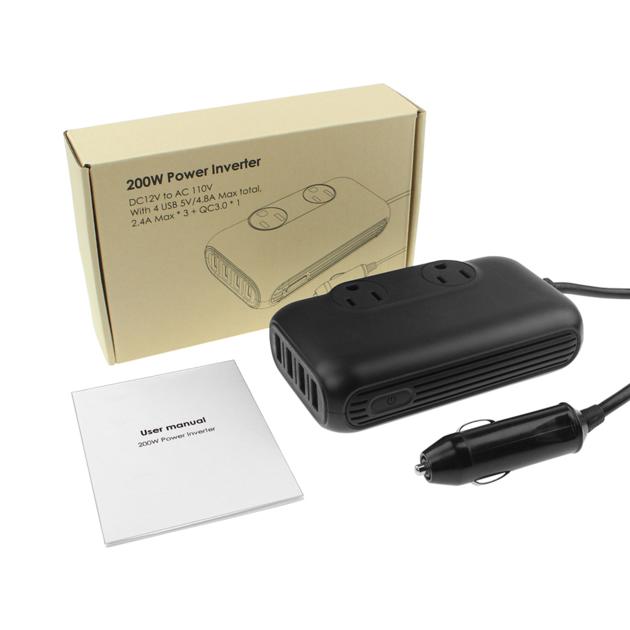

| Packaging: | Color box |
|---|---|
| Delivery/Lead Time: | 25-30days |
| Production Capacity: | 60.000pcs/month |
Product Description
Alarm function: When the inverter over temperature, overload, over voltage, low voltage, short circuit , it will sound with the alarm
USB1 USB2 USB3 output parameters
Power on/off mode: When the cigarette connected, they start working, and stop working when they are disconnected.
USB output voltage: 4.75~5.20V (full load)
Output rated current: 4.8A (MAX)
Output voltage ripple: ≤150mV
Output overcurrent protection: ≤ 5.8A
Output short circuit protection: yes
USB recognition mode: automatic identification
USB4 output parameters
Power on/off mode: Switch on/off mode: When the cigarette connected, they start working, and stop working when they are disconnected.
USB output voltage: 4.75~5.20V (full load)
Output rated current: 5V3A, 9V2A, 12V1.5A (12V output requires input voltage more than 12.5V)
Output voltage ripple: ≤150mV
Output overcurrent protection: ≤3.8A
USB recognition mode: automatic identification Support QC3.0
Note: All the above parameters are measured at an ambient temperature of 25 ® C.
|
