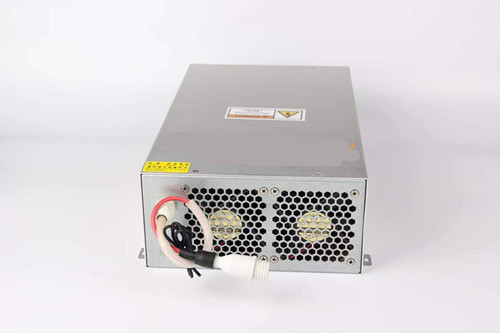

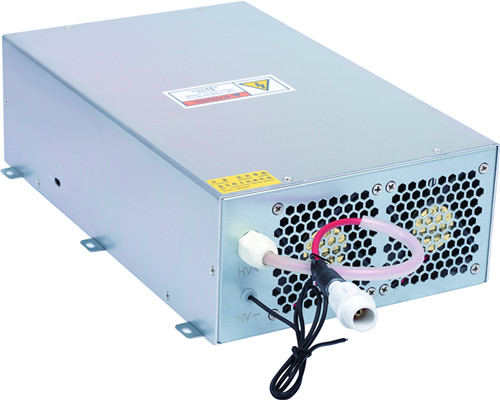

130W laser power supply for 130/150W CO2 laser tube
| Price: | US$ 129 / Piece |
|---|---|
| Minimum Order: | 30 |
| Payment Terms: | t/t western union |
| Port of Export: | qingdao china |
Product Details
| Model No.: | ZR-130W CO2 LASER POWER SUPPLY | Brand Name: | ZRSUNS |
|---|
| Certification: | ce |
|---|---|
| Specification: |
Specification Input Input voltage AC220V¯10% (AC110V specified while order) AC frequency 47~440HZ Maximum input power 970W Maximum input current 4.3A Output Maximum output voltage 40KV Maximum output current 36mA (depending on the laser tubes of different manufacturers) Efficiency More than 90% (Full load) Response speed Not more than 1ms Control lnterace TTL multilevel switching control,effective level can be high and low selection (see control wining diagram) Insulation lnput-output AC 1500V 1 minutes not more than 10mA lnput-shell AC 1500V 1 minutes not more than10mA Output-shell Connection Open Circuit Protection Can be short circuit (requires a good grounding shell,while avoiding the positive electrode and the shell between the arc) Environmental Requested Working temperature -10℃~50℃ Storage of temperature -20℃~75℃ Relative Humidity Maximum 85%RH (non-condensing) Altitude 100,000 feet of work 200,000 feet of storage,dose not work Cooling methods Forced air cooling (fan cooling) Dimensions (LxWxH) 335mmx205mmx100mm |
Packaging & Delivery
| Packaging: | carton and faom |
|---|---|
| Delivery/Lead Time: | 3-4 working days after payment received |
| Production Capacity: | 4000pcs each month |
Product Description
ZR-130W CO2 laser power supplies Feature
1. The laser tube's CO2 power supplies has stable working performance: Each high voltage CO2 power supplies has been much more rigorous testing procedures, under full load high temperature (52~55 degrees Celsius) 24 hours of aging, to ensure the stability of each 130W CO2 power supplies
2.This laser tube's CO2 power supplies have a built-in network cable interface, which can be used to connect with external LCD module through the network cable. The external LCD module can display the working status, output current and common fault codes. This is helpful for operators to understand the working status of 130W CO2 power supplies and quickly solve problems. The output current can be adjusted through the rotary potentiometer of the liquid crystal module.
3. Good compatibility: The high voltage CO2 power supplies can drive EFR,Yongli,SPT,Weiju and other brand 1.6 or 1.65 meter length 130W CO2 laser tube and it also have a strong adaptability and fast response, cutting advantages of good effect.
4. This laser tube's CO2 power supplies adopt G/P/L/G/IN/5V as control signal output interface.The high voltage CO2 power supplies adopts aluminum upper cover and base, and galvanized steel shell.
5.Laser power control is simple on this laser tube's CO2 power supplies, 0-5V analog signal control the laser power can be used, It can also use the PWM (pulse width modulation) signal to control output laser power.
6. Protection function: This laser tube's CO2 power supplies have open circuit protection: Under the condition of good protective earth, the high voltage CO2 power supplies can work in open-circuit for a short time, which could avoid the damage to the 130W CO2 power supplies
7. Control is simple: This 130W CO2 power supplies use high or low level control, the use of TTL-level control of the laser can start and stop. At the same time it increases the protection switch, testing is through the external water and ventilation on this high voltage CO2 power supplies
|
