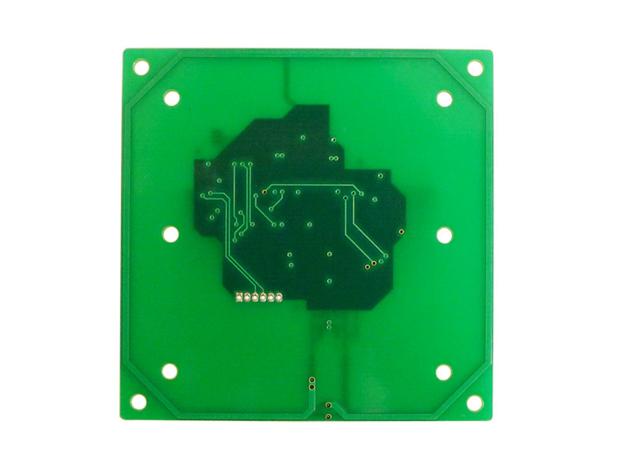

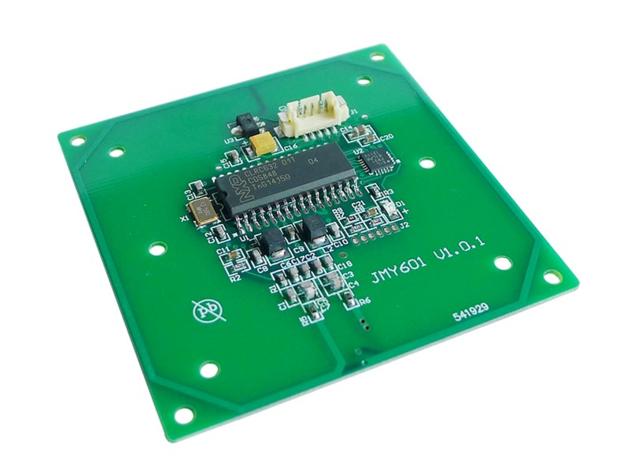

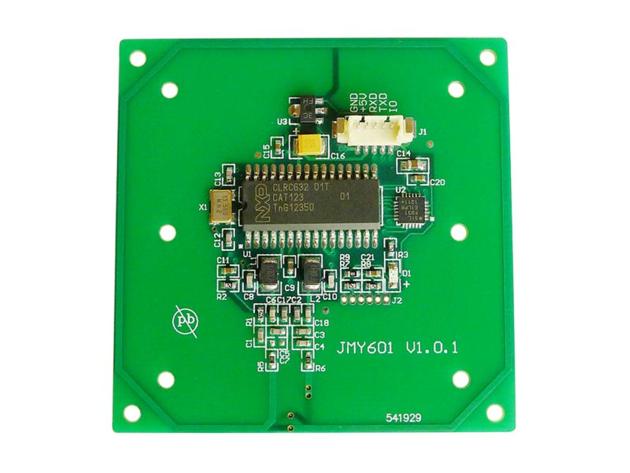

13.56MHZ RFID Reader module-JMY601

JMY601 is a series of RFID read/write module with UART or IIC communication port. It has various functions and supports multi ISO/IEC standard of contactless card. The RF protocol is complex, but the designer combined some frequent used command of RF card and then user could operate the cards with full function by sending simple command to the module. The module and antenna is integrated. The impedance between RF circuit and antenna was tuned by impedance analyzer, and then the module has excellent performance and stability.
Main Characteristics
• Modules integrated antenna, excellent consistency and stability
• Light and slim
• RF protocol in accordance with EMV2010

Qualifications
• PCD: NXP MF RC531, SL RC400, CL RC632
• PCB Layers：4
• Working frequency: 13.56MHz
• Termsed standard: ISO14443A, ISO14443B, ISO15693
• Anti collision ability: Full function anti collision; be able to set multi-cards or single card
• Auto detecting card: Termsed, default OFF, could be set
• Data FLASH: 512 Bytes
• Power supply: DC 5V (¯10%)
• Interface: UART or IIC by order
• Communication speed:
IIC: Max.200Kbps
UART: 19200bps, 9600bps, 38400bps, 57600bps, 115200bps
• Max.command length:
JCP04: 253bytes
JCP05: 510bytes
• Interface level: UART / IIC: 3.3V (TTL level; 5V tolerance, by pull up)
• Power consumption: 150mA
• Operating distance: 100mm (M1 typical distance, depending on card quality)
• Dimension: 60mm*60mm*5.7mm
• Weight: About 20g
• ISP: Termsed
• RoHS: By order
• CE certification: in plan (Jan. 17, 2015)
• Operating temperature: -25 to +85®C
• Storage temperature: -40 to +125®C
