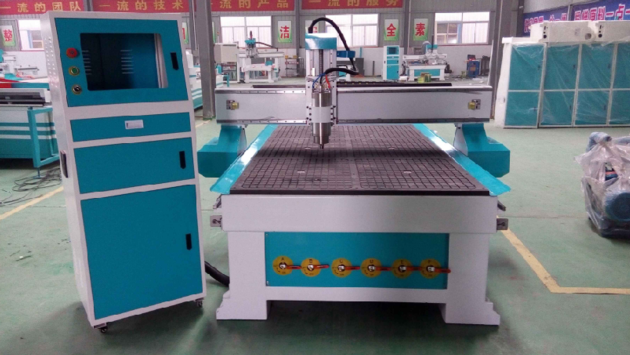

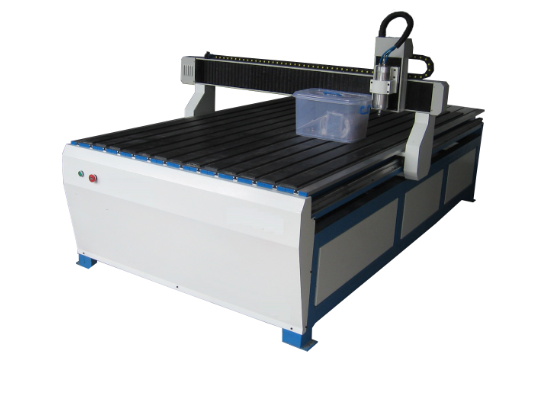

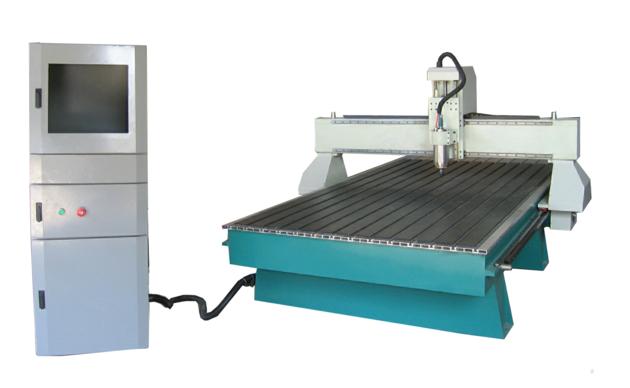

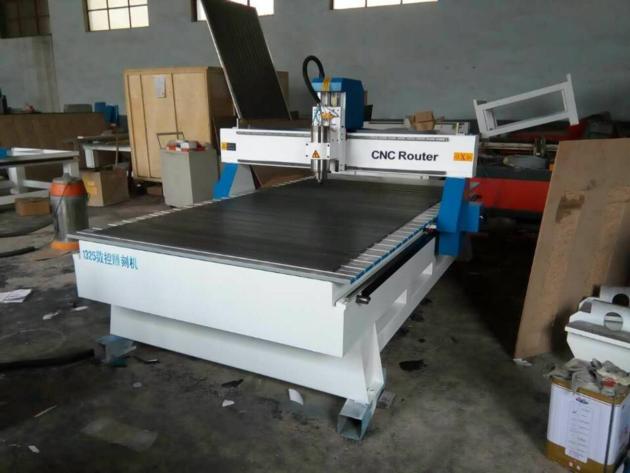

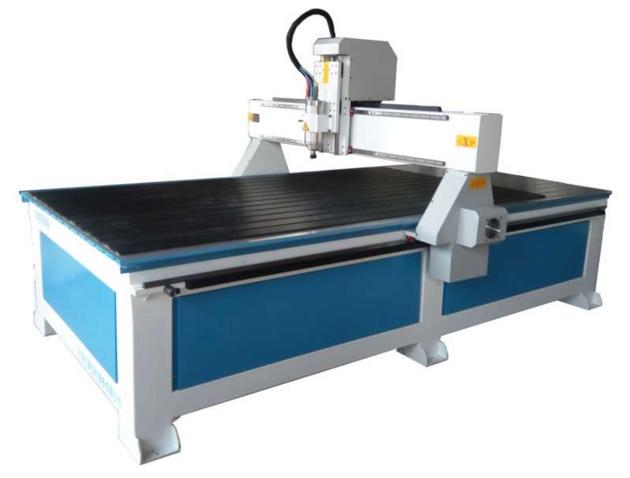

1224C plastic cutting machine
| Price: | US$ 4680 / Kit |
|---|---|
| Minimum Order: | 1Pieces |
| Payment Terms: | Advance wire transfer, payment received, 3 working |
| Port of Export: | Qingdao |
Product Details
| Model No.: | CNC-1224A | Brand Name: | Art sea |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Model 1224 - Plastic Cutting Machine 1 XYZ work area 1220x24400x120mm 2 Table size 1340X2845mm 3 XYZ travel positioning accuracy ¯ 0.03 / 300 mm 4 XYZ Relocation positioning accuracy ¯ 0.04 mm 5 X, Y structure ball screw, shaft linear bearing 6 Z structure ball screw, shaft linear bearing 7 maximum power consumption of 3.5 kilowatts 8 maximum speed 0-6000mm / min 9 maximum working speed 0-5000mm / min 10 Spindle motor 2.2Kw Self-cooling liquid spindle (option: 3.0Kw HSD) 11 Spindle speed 0-24000RPM 12 working mode step 13 Working voltage AC220V / 50 / 60HZ 14 command G code, * uoo, * mmg, * plt 15 operating system DSP system 16 interface USB 17 flash memory 128M 18 XYZ work fine <0.01mm 19 software Type3 software, Wentai software, Artcam software 20 Operating ambient temperature: 0 ® C to 45 ® C Relative humidity: 30% ~ 75% 21 Package size 1800x1830x1450mm 22 net weight 400KG 23 Total weight 450KG All the above parameters are subject to change without notice |
Packaging & Delivery
| Packaging: | Wooden packing |
|---|---|
| Delivery/Lead Time: | 25 to 35 days |
| Production Capacity: | 3000 pieces / month |
Product Description
CNC cutting machine, CNC machine, CNC router, wood cutting machine, plastic cutting machine, automatic cutting machine, engraving machine
Computer numerical control machine, computer cutting machine
E-mail: *
1224 CNC cutting machine - Features:
1, the use of imported linear square rails, double row four ball slider, bearing capacity, smooth operation, high precision, long life. Import ball screw high precision, accurate under the knife.
2, one computer control cabinet, more convenient, clean and tidy. Design more humane, using a unique intelligent budget rule, give full play to the potential of the motor to achieve high-speed processing, straight line curve, the curve is more perfect, does not account for computer memory and can achieve the automatic start and stop cutting spindle.
3, software compatibility, compatible type3 / Artcam / Castmate / Wentai and other CAD / CAM design software.
4, the use of high-speed drive stepper motor and drive, Y-axis with a dual-motor drive, so that high-speed operation up to 30 m / min or more empty line speed, with strong cutting spindle can make the carving speed is more improved.
5, equipped with automatic lubrication system, just a touch can be on all rail slider oil.
1224 CNC cutting machine - its main application industry:
1, woodworking industry: MDF, MDF, particleboard, synthetic plate hollow engraving, cabinet doors, solid wood doors, craft doors, Mianqi doors, screens, craft fan window processing, shoe shine machine, game cabinets and panels, mahjong Table, computer tables and plate furniture products, auxiliary processing.
2, the advertising industry: advertising signs, logo production, acrylic cutting, plastic molding, a variety of materials advertising decorative products.
3, other industries: you can carve a variety of large relief, shadow carving, widely used in craft gift industry.
4, flat wood, acrylic, organic board, stone, plastic, MDF (MDF) and other materials line carving, cutting, chamfering, drilling two-dimensional sculpture and three-dimensional relief
