110 160 315mm Pipe Welding Machine/HDPE Pipe Welding Machine/Butt Welding Machine/PE PP PPR Butt Wel
| Price: | US$ 1200 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | LC,TT |
| Port of Export: | Shanghai |
Product Details
| Model No.: | WP315A | Brand Name: | Welping |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Model WP315A
Suitable materials PE, PP, PVDF Range 110-125-140-160-180-200-225-250-280-315mm Power supply 220V Frequency 50 Hz Total power 4.85 KW Heating plate 3.1 KW Planing tool 1.0KW Hydraulic station 0.75 KW Max.Pressure 6.3MPa Hydraulic oil L-HM46 Max.Temperature of heating plate 270ºC Temp.Deviation in Surface ¯7ºC Total Weight 200kg Net weight 174kg Basic Frame plywood 970*660*550mm Hydraulic Unit & planing tool & heating plate plywood 770*610*720mm |
Packaging & Delivery
| Packaging: | Polywood case |
|---|---|
| Delivery/Lead Time: | 15 days |
| Production Capacity: |
Product Description

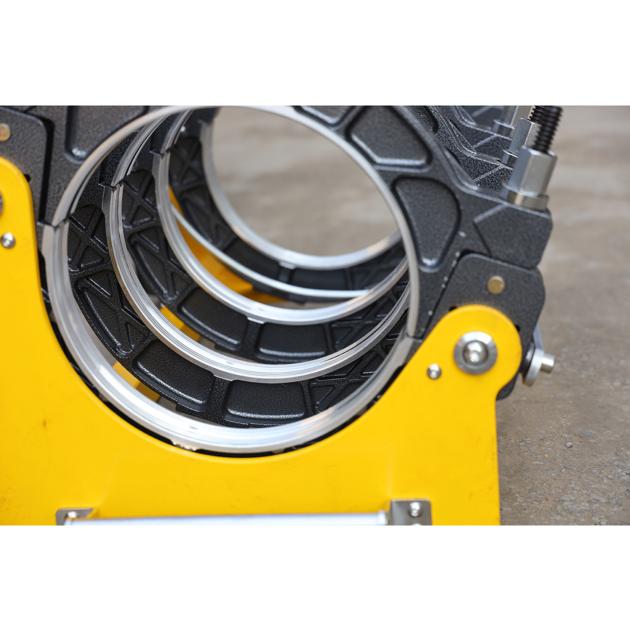

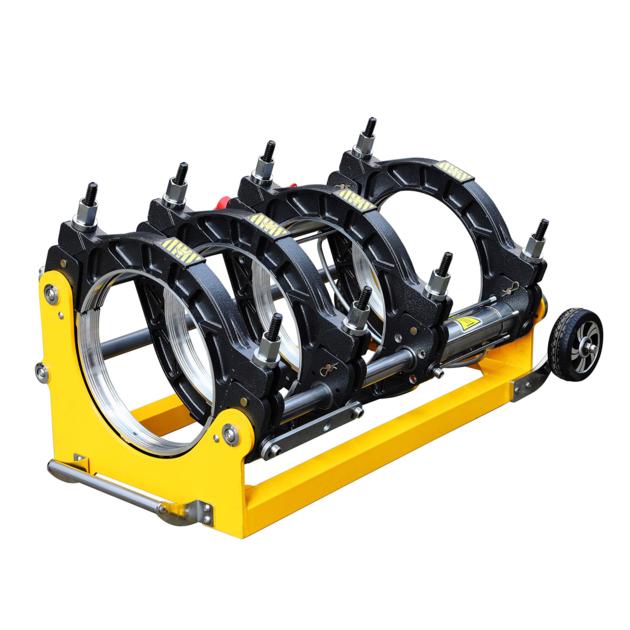

Basic frame
· Italy DNP quick coupler
· Chromated hydraulic cylinder made
of 1045(ASTM)/S45(JIS)/C45(DIN) steel
· Chromated integral shaft made
of1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Base made of Q235 steel with spraying treatment
· Cast aluminum clamps, sandblasting & Spraying
treatment

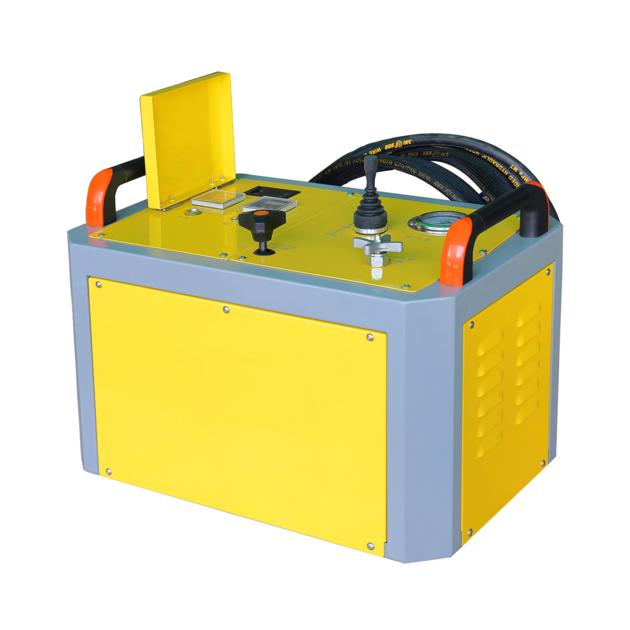

Hydraulic station
·Fully enclosed housing with vents can prevent dust and dirt from entering
·220V asynchronous motor
·CHNT electricity leadkage protection switch
·Data logger(optional)
·500V/100A electric meter
·Ø100mm presure meter
·Relief valve, regulating valve, maintaining valve

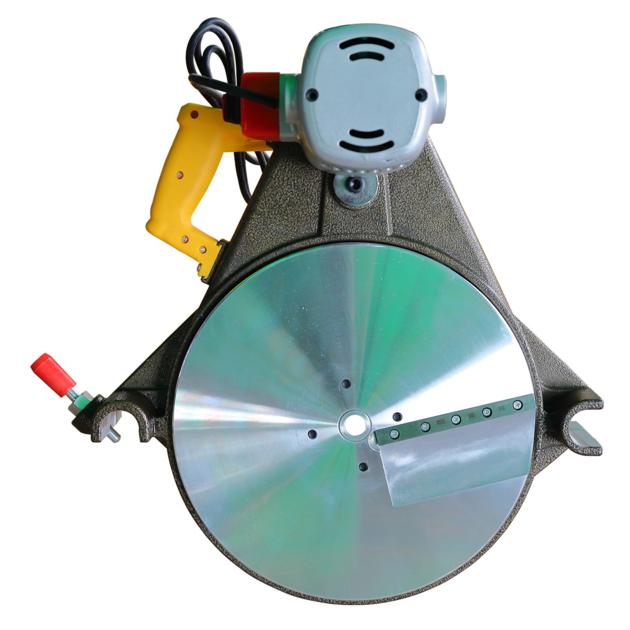

Planing tool
·HSS blade with double edge
·Die-cast aluminum trimmer plate, durable and ·anti-corrosion
·Aluminum alloy frame of motor with good heat dissipation performance
·Carbon brush motor with pure copper wire

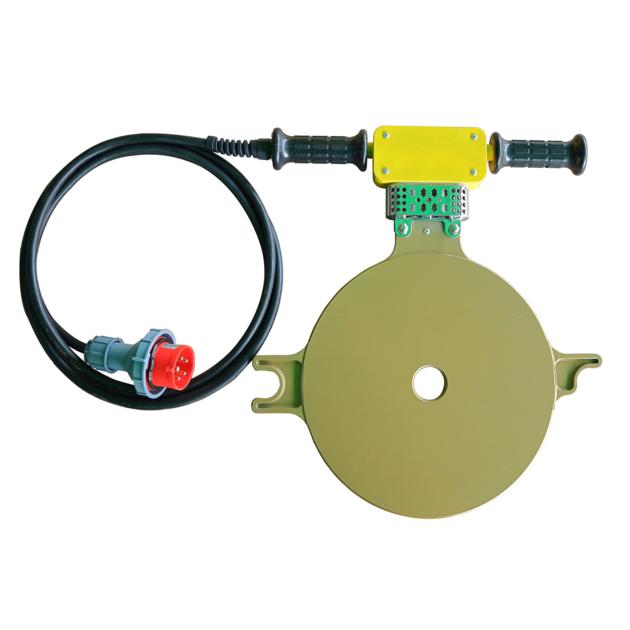

Heating plate
·Bakelite handle with high insulating property and thermal insulation
·Thermocouple temperature sensor
·Heating element
·Teflon Coating imported from Daikin in Japan
·Aviation plug
|
