10e-5PA High Vacuum Thermal Evaporation Coater for Evaporation Coating of Most Metals and Certain Or
| Price: | US$ 8000 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C T/T D/P Western Union Paypal Money Gram Others |
| Port of Export: | Zhengzhou, Shanghai, Qingdao, etc. |
Product Details
| Model No.: | CY-GZK103-A | Brand Name: | CYKY |
|---|
| Certification: | CE |
|---|---|
| Specification: |

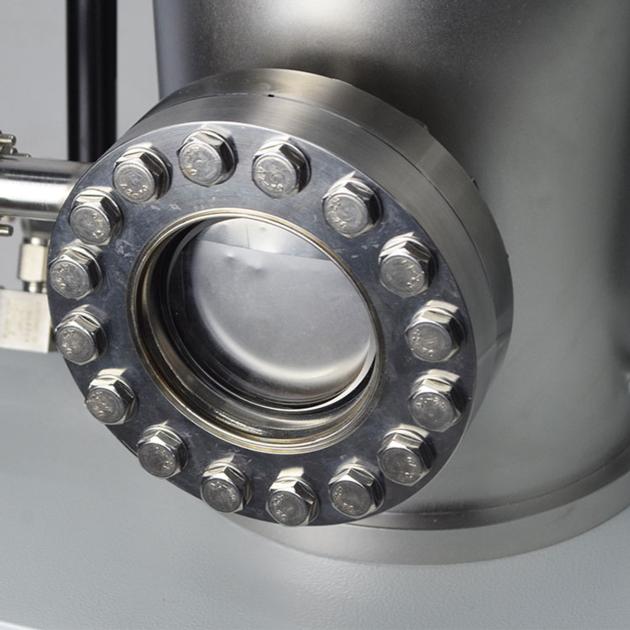

Sample stage Size Φ65mm Rotary speed 1-20rpm adjustable Distance to evaporation source 60mm~100mm adjustable Evaporation source Tungsten wire basket Max temperature 1700℃ Thermocouple S type thermocouple Chamber size φ170mm × 200mm Chamber material Stainless steel Observation Window Quartz observation window φ70 Opening way Top cover open Backing pump Rotary vane pump Vacuum measurement Compound vacuum gauge Ultimate vacuum 1.0E-5Pa Pumping rate Molecular pump: 600L/S rotary Rotary vane pump: 1.1L/S comprehensive pumping performance: 20 minutes vacuum up to: 1.0E-3pa Supply voltage AC220V,50Hz Dimensions 600mm×300mm×470mm Total power 1.5kw Total weight 40kg |
Packaging & Delivery
| Packaging: | Standard export wooden box packaging |
|---|---|
| Delivery/Lead Time: | 30 days |
| Production Capacity: | 200 Sets/Month |
Product Description

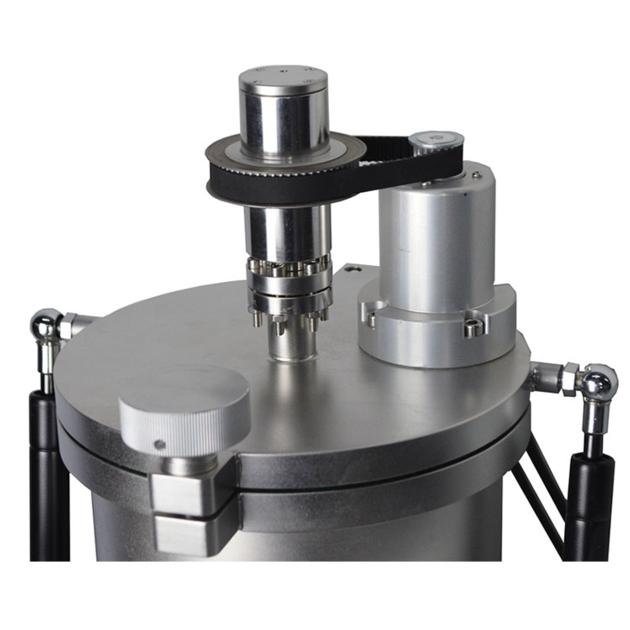

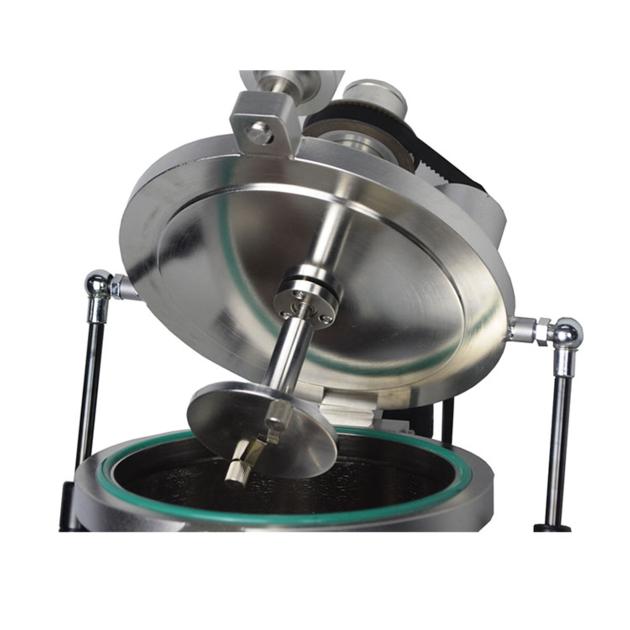

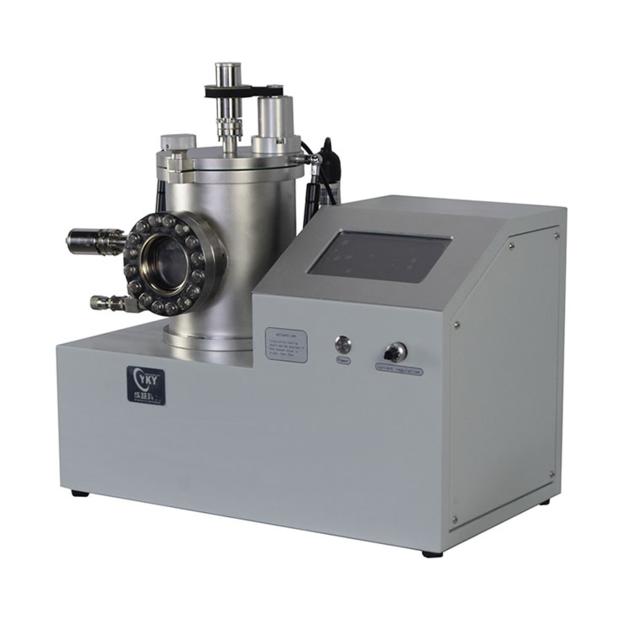

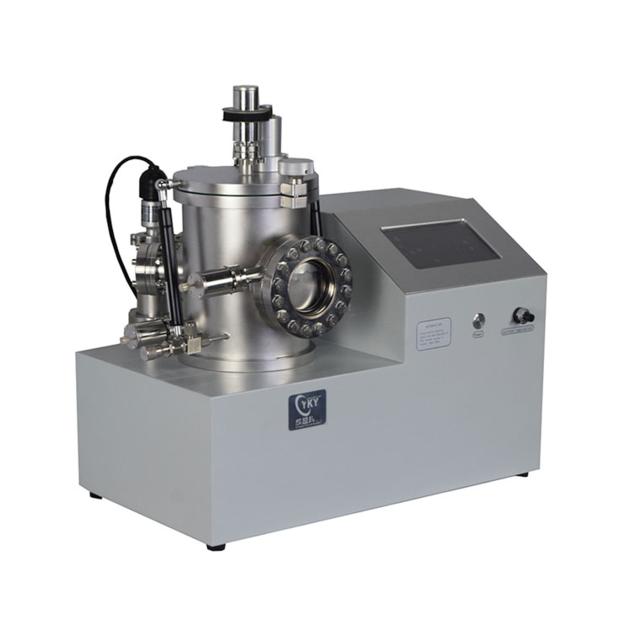

The instrument is a high vacuum compact thermal evaporation coater with evaporation temperature from 200℃ to 1700℃. The tungsten wire basket is used as the evaporation source, and the evaporation source is built in at the bottom of high purity alumina crucible. The upper cover is equipped with a rotatable sample stage, which can effectively improve the uniformity of film formation. The instrument has a high-precision temperature control system and uses circulating heating method, which can stabilize the evaporation of metals and organic matter. Stainless steel high-vacuum chamber design, with high-precision molecular pump, can achieve high vacuum requirements, the high vacuum can effectively improve the efficiency and quality of the evaporation coating. This equipment is suitable for evaporation coating of most metals and certain organic material films.
|
