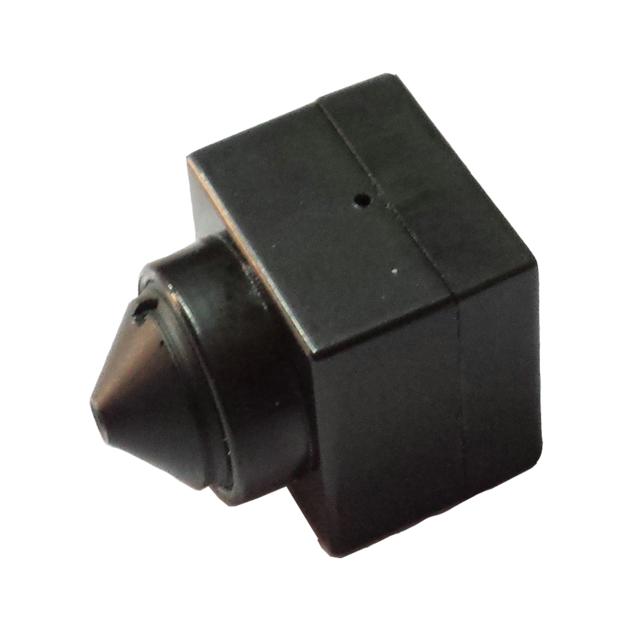

1080P Mini 4 in 1 OSD Camera
| Price: | US$ 65 |
|---|---|
| Minimum Order: | |
| Payment Terms: | T/T |
| Port of Export: |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |
High definition, image quality is brighter and clearer With P2P coaxial transmission, no any delay support OSD menu, multi-language to select With new analog modulation technology, high frequency electromagnetic radiation and strong anti-interference ability Using coaxial cable75-3(or above), the transmission distance can up to 500M Switch with real 1080P mode. Perfect match with AHD DVR |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
AHD means analog high definition, AHD’s birth, would be to solve the transmission distance limitations of existing HD-SDI solution. AHD supports video transmission over traditional 75-3 coaxial cable around 500 meters, also it becomes another alternative for HD analog solution. By the real way, it inherits and carries forward benefits of traditional analog solution, video signal are uncompressed, keep all of the original video details, to seriously achieve high definition uncompressed lossless, no video effect latency. Much like other HD analog solutions, through utilizing the progressive scan CMOS image sensor, the AHD camera can deliver 1.0 megapixel, 1.3 megapixel, 2 megapixel resolution, added with ICR filter, the camera achieve true day/night video surveillance; and same just like the traditional analog system, AHD products support plug-and-play installation, simple to use.
Model NO. VG-AHD2.0MP-MA-ATM
Sensor 1/2.9” SONY HD CMOS IMX323
Horizontal Resolution 2000TVL
Resolution 1920*1080
Pixel 2.0MP
Lens 3.7mm 90®
Minimum illumination 0.0001LUX
TV format PAL/NTSC(OSD）
Shutter AUTO 1/25-1/10,0000 OSD
AGC 0-15 OSD
Sens-up OSD ON/OFF
Brightness 0-100 OSD
D-WAR OSD ON/OFF
Defog OSD ON/OFF
BLC OSD ON/OFF
HSBC OSD ON/OFF
S/N Ratio ≥48dB
White balance ATW/INDOOR/OUTDOOR/AWB/AUTO
Image color COLOR/BW/AUTO
NR 2D/3D
Camtitle OSD ON/OFF
Freeze OSD ON/OFF
Mirror OSD ON/OFF
Motion OSD ON/OFF
Privacy OSD ON/OFF
Language CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/ENG
Video out 1.2Vp-p75Ω AHD/TVI/CVI/CVBS
Audio out Monophonic
Input power DC9V-12V
Power consumption 9V/100mA 12V/80mA
Power adapter DC9V 1A or 12V 1A
Working temperature -30～+50℃
Base size 16*16mm
|
