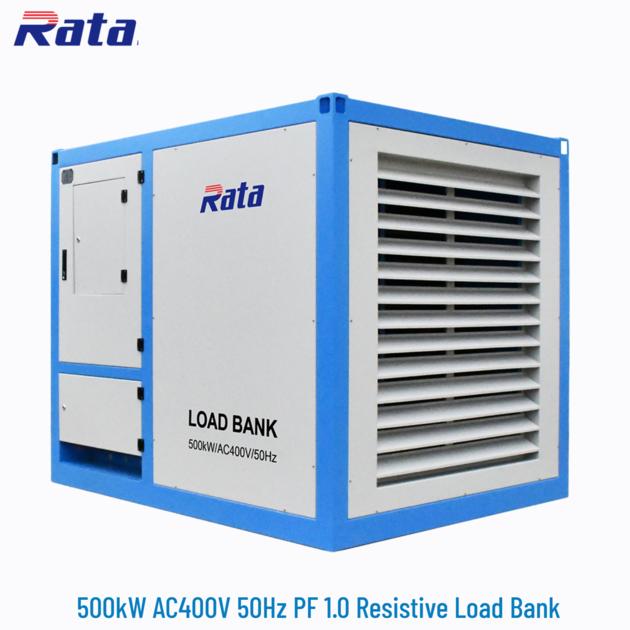

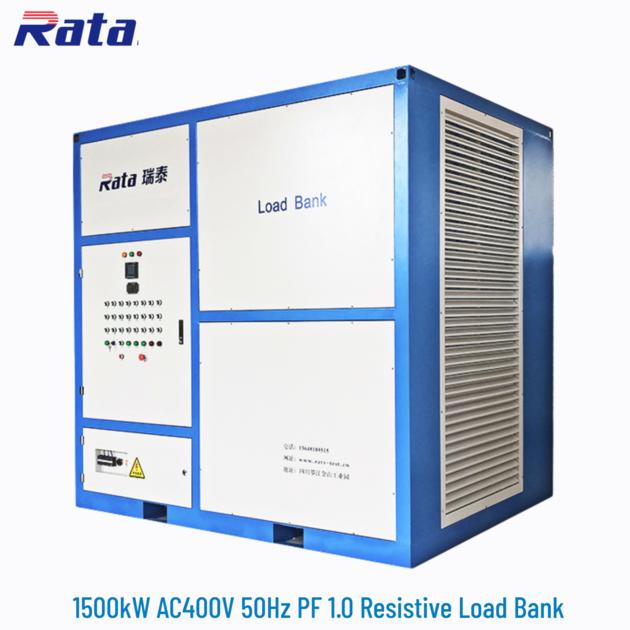

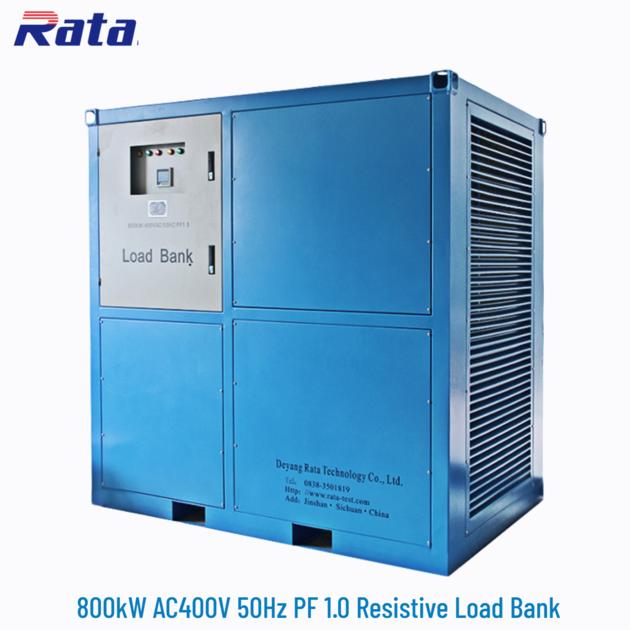

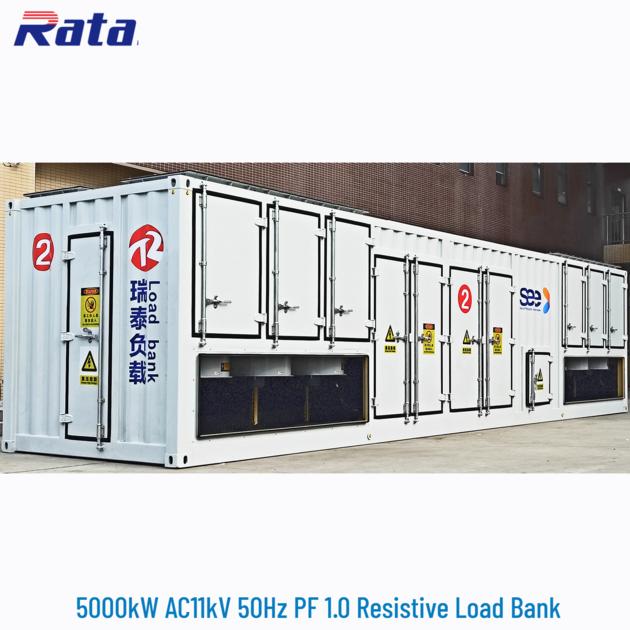

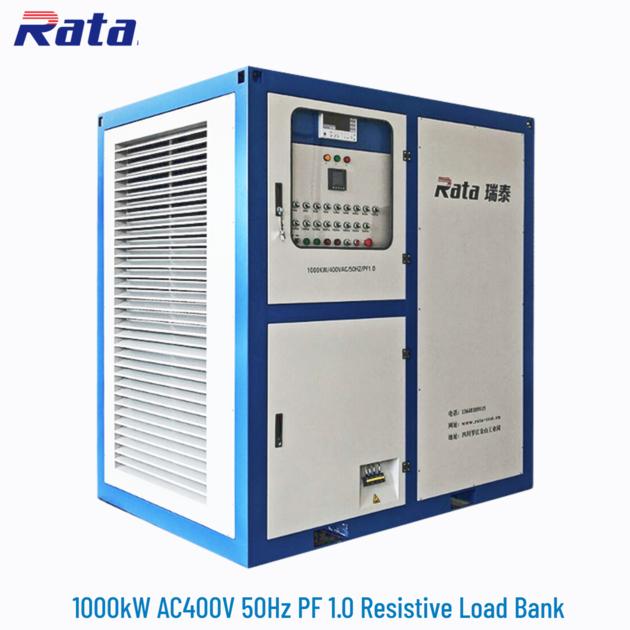

100kW~10000kW AC 3P Air Cooled Generator/Genset/UPS application resistive Load Bank

RESISTIVE LOAD BANK
Resistive load bank is a special equipment for generator type test and delivery inspection.The optional intelligent test system can automatically complete the measurement of all electrical parameters of the generator and automatically generate various charts,curves and reports.Our high-voltage load can directly measure the high-voltage power supply without transformer.They generally adopt remote operation mode,which is connected with the load body through the network cable of notebook or experimental platform to control the load and ensure the safety of operators.

Load Bank Application
Load bank application mainly include:
1. Generator set: diesel generator set factory test
2. Data center: load test of back mounted generator set
3. Offshore ships: marine generator unit test, oil platform load test
4. Military ships: ship generator set test
5. Emergency power supply: regular test of AC and DC emergency power supply
6. Power plant: load simulation loading, transformer on load test

Resistive Load Bank Specification
Nominal voltage: AC400V/630V/10.5kv/Customized
Nominal power: 100kW to 8000kW or Customized
Frequency: 50/60Hz
Power factor: 1.0
Min. step: Customized
Load step: according to customer needs
Load connection: copper bar,3-phases 4 wires
Resistor:
Each resistance element: insulation impedance DC2000V/10MΩ above
Withstand voltage AC2000v for 1 min;
Resistance error of each resistance tube: ¯2%
Can stable work under 350ºC.
Load control: local manual button control,remote PC/console control
Loading accuracy: ≤ 3%
Three phase balance: unbalance degree: ≤3%
Working mode(Duty cycle): continuous work / customized
Load protection: short circuit,overcurrent,high temperature,fan fault protection
Pour source: AC380V/50Hz
Cooling mode: forced air cooling,horizontal air outlet,vertical air outlet
Insulation class: F
Measurement accuracy: the display accuracy is 0.5,the sampling accuracy is 0.2
Electrical parameter display: three phase voltage,three-phase current,frequency, power,etc
Voltage rising mode: realized by transformer
Load expansion: parallel expansion of multiple load containers
Standard: meet international standard,ship standard and telecommunication standard
Transport: load-bearing lifting hole,castors or forklift hole can be selected.
Color: blue / customized
Ambient temperature: -20ºC to 50ºC
Humidity: up to 100%
Altitude: up to 2500m
Atmospheric pressure: 86 to 106kPa
