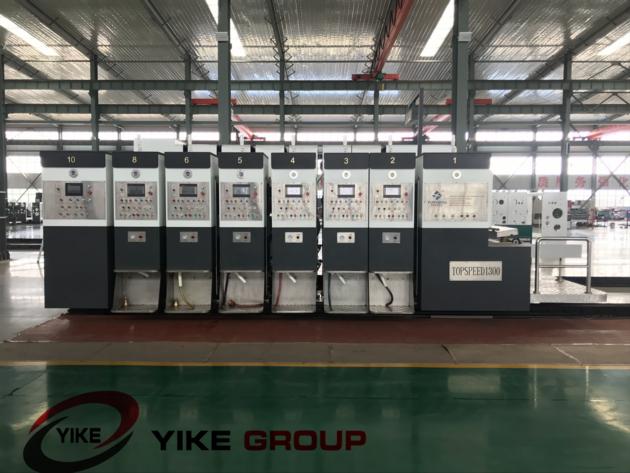

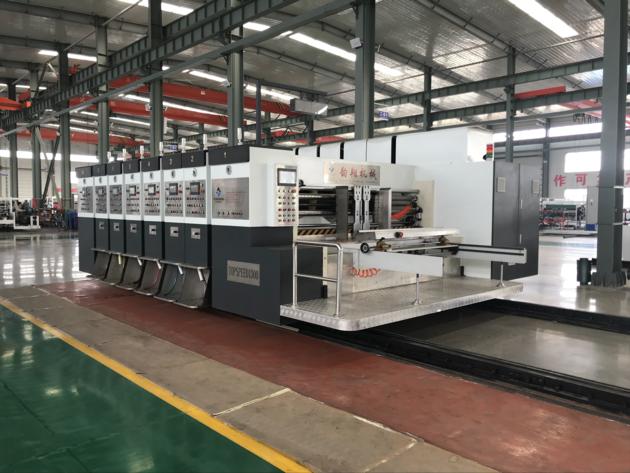

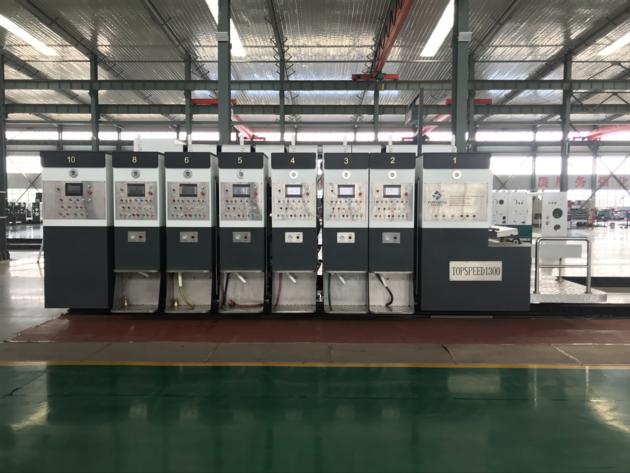

1.High Speed Flexo Printer Slotter Die Cutter Machine

1.Lead-edge Feeding System
A.Lead-edge suction feeding system, easy operation, high accuracy，（adopts lead feeder system).
B.7.5KW high pressure centrifugal fans, according to the cardboard
warping degree of frequency control pressure, to ensure warp
cardboard or thin cardboard high-speed accurate transmission.
2.Printer Unit

A.Printing Roller
1.With printing plate, outer diameter φ420mm
2.High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
3.Roller horizontal direction and circumferential direction with datum line, convenient for align plate
4.Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

3.Slotting Unit

a.Single-axle double-knife slotter, use Internal tooth structure adjutment the height of box, So that oil does not easily contaminated cartons
b. The first pressure line round, after preloading cardboard not easily crush
c. The above press round Urethane appearance package, will not damage the cardboard
d. The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise
e. Slotting phase and box height, computer and electric digital control
Preload, creasing gap adjustment adopt computer and electric digital control


4.Die-cutting Unit

a.Rubber roller mechanical spiral commutation 40mm move about horizontal structure
b. Die-cutter phase, computer and electric digital control
c. Horizontal phase, computer and electric digital control, range ¯5mm
d. Rubber roller and die roller gap use computer and electric digital control
