1.3KW Series Sealed Portable charger

Product introduction and application areas
1.3KW Series Sealed Portable charger are designed with integrated die-casting structure. They are suitable for flooded lead-acid batteries, sealed (colloidal) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. They can be used to cycling charge and floating charge the battery in electric car, electric motorcycle, sightseeing car, patrol car, forklift, communication, electric power, ship,etc.
Technical parameters
. Ac input voltage range: 180-260VAC;45-65HZ
. AC max input current: 6A@220VAC
. Power factor: ≥0.98
. Noise: ≤45dB
. Protection grade: IP67
.Working temperature:-30℃~＋55℃
.Storage temperature:-40℃~＋95℃
Product specifications
.Dimensions:280*132*85mm
. Net weight: 3.0kg
Optional advanced configuration
.Can be with CAN bus;
Can be connected with three-color indicator light;
Charging lock function(The vehicle power system can be locked through the relay during charging process);
Meet the requirements for various occasions.
Multiple protection
.Output over current protection .Input over voltage protection
.Output over voltage protection .Input under voltage protection
.Output short circuit protection .Over temperature protection
.Output no-load protection .Fully charge automatic shutdown
.Output reverse connection protection .CAN failure protection

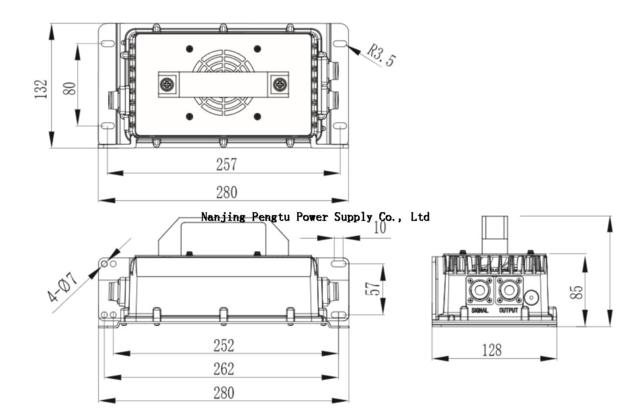

Mechanical Size&Model selection
Item Battery Rated Voltage Max Output Voltage Max output current
PA1K3M24FB30 24V 34V 30A
PA1K3M36FB30 36V 51V 30A
PA1K3M48FB20 48V 68V 20A
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.
