1.2KW Series Sealed On board charger

Product introduction and application areas
The 1.2KW Series Sealed On board chargers are designed with integrated die-casting structure.They are suitable for flooded lead-acid batteries,sealed(colloidal)lead-acid batteries,lithium batteries,nickel-metal hydride batteries,nickel-cadmium batteries,etc.They can be used to cycling charge and floating charge the battery in electric car,electric motorcycle,sightseeing car,patrol car,forklift,communication,electric power,ship,etc.
Technical parameters
.Ac input voltage range:180-260VAC;45-65HZ
.AC max input current:6A 220VAC
.Power factor:≥0.98
.Max Efficiency:93%(Full Load)
.Noise:≤45dB
.Protection grade:IP67
.Working temperature:-30℃~＋55℃
.Storage temperature:-40℃~＋95℃
Optional advanced configuration
.Can be with CAN bus;
.Can be connected with three-color indicator light;
.Charging lock function(The vehicle power system can be locked through the relay during charging process);
.Meet the requirements for various occasions.
Product specifications
.Dimensions:281.00*128.00*84.00mm
.Net weight:3.0kg
Multiple protection
.Output over current protection .Input over voltage protection
.Output over voltage protection .Input under voltage protection
.Output short circuit protection .Over temperature protection
.Output no-load protection .Fully charge automatic shutdown
.Output reverse connection protection .CAN failure protection

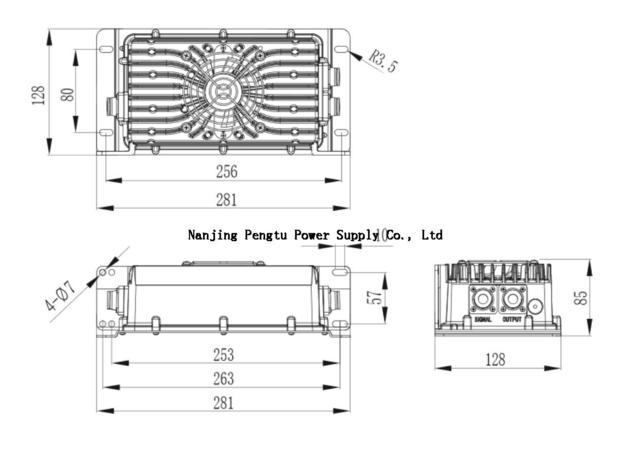

Mechanical Size&Model selection
Item Battery Rated Voltage Max Output Voltage Max output current
PA1K2M48FM15 48V 68V 15A
PA1K2M60FM15 60V 85V 15A
PA1K2M72FM15 72V 102V 15A
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.
