railway suspension bridge erecting beam launcher crane 180t 200t
| Price: | US$ 2000000 |
|---|---|
| Minimum Order: | 1Set |
| Payment Terms: | T/T,L/C |
| Port of Export: | Qingdao or Tianjin Port, China |
Product Details
| Model No.: | BL | Brand Name: | Shenghua |
|---|
| Certification: | CE ISO GOST |
|---|---|
| Specification: |
Product Model SH50-160 SH40-140 SH40-120 SH35-120 SH30-80 Span (m) 50 40 40 35 30 Lifting Capacity (T) 160—260 140 120 120 80 Crane Moving Speed (m/min) 2.7 2.7 2.7 2.7 2.7 Trolley Moving Speed (m/min) 4.5 4.5 4.5 4.5 4.5 Trolley lifting Speed (m/min) 0.8 0.8 0.8 0.8 0.8 girder-carrying speed of rear part (m/min) 0-9 0-9 0-90-9 0-9 Skew Bridge Angle (®) 45 45 45 45 M45 Applicable curve radius (m) R350 R300 R300 R300 R300 Power (KW) 96 96 96 96 96 |
Packaging & Delivery
| Packaging: | Hydraulic and Electrical parts are packaged by high quality plywood crates |
|---|---|
| Delivery/Lead Time: | 40 days after received the deposit |
| Production Capacity: | 180T |
Product Description

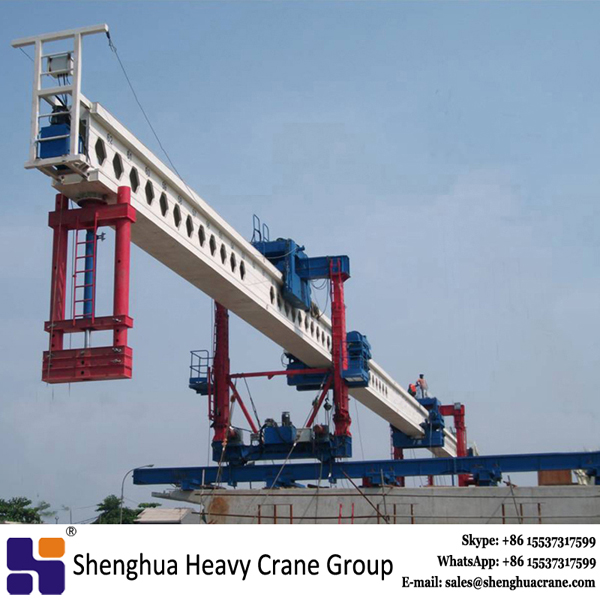

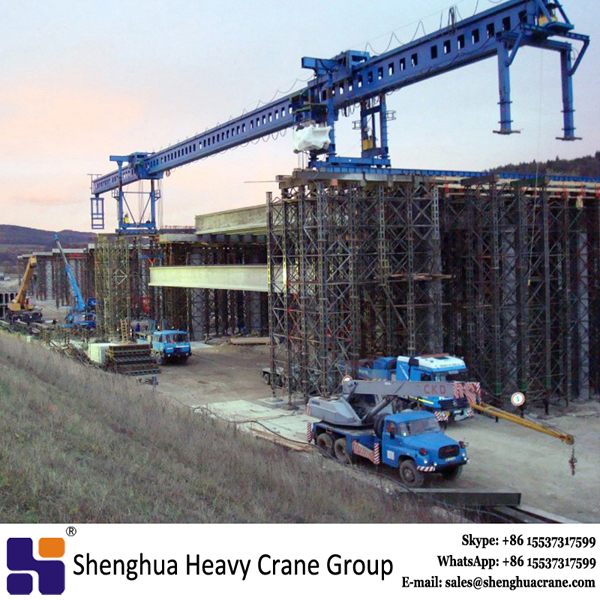

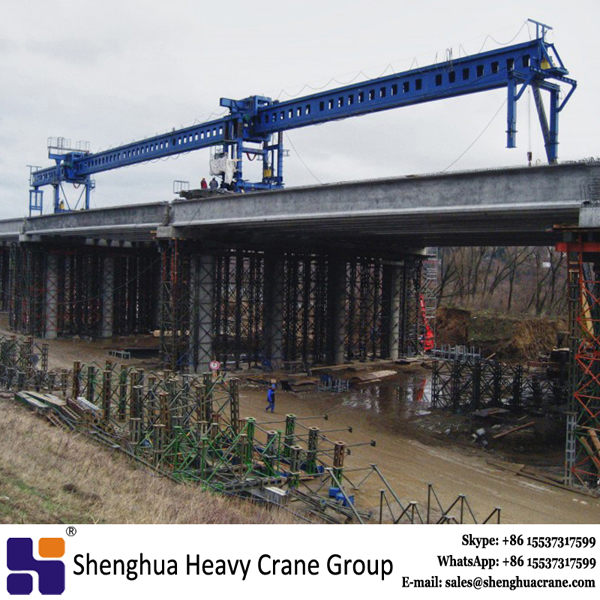

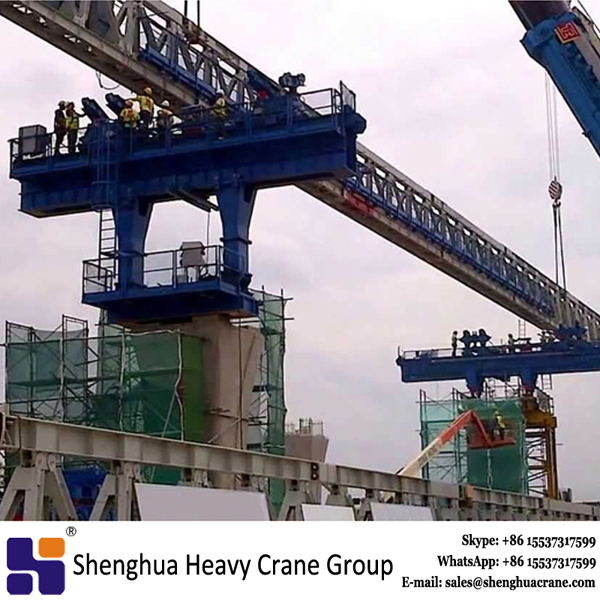

Railway suspension bridge erecting beam launcher crane 180t 200t is used in the erection of precast beam bridges for span by span method of construction for precast beam girders like T beam, U beam, etc. This self-beam launcher is suitable for bridge construction over river, valley or highway and so on. railway suspension bridge erecting beam launcher crane 180t 200t is suitable for the construction of bridge for roads, railways and other bridge erection construction site. Its main function is to lift the prefabricated beams, then transported onto the prefabricated pier. railway suspension bridge erecting beam launcher crane 180t 200t has big difference from the general cranes. It requests high security.
|
