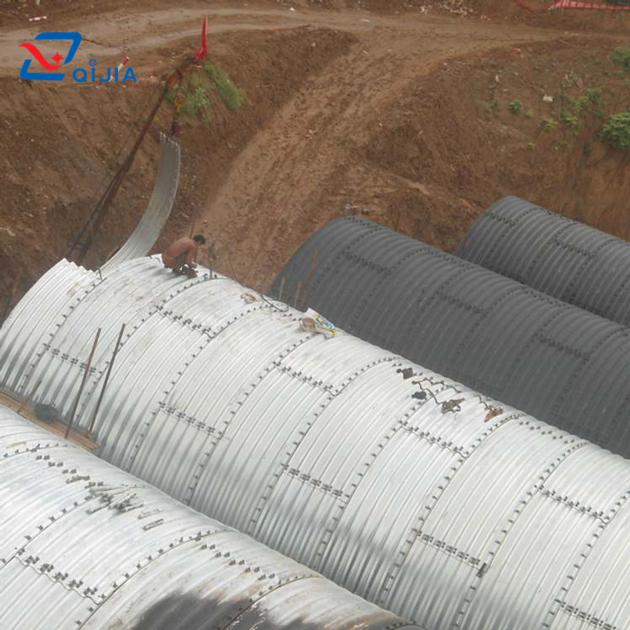

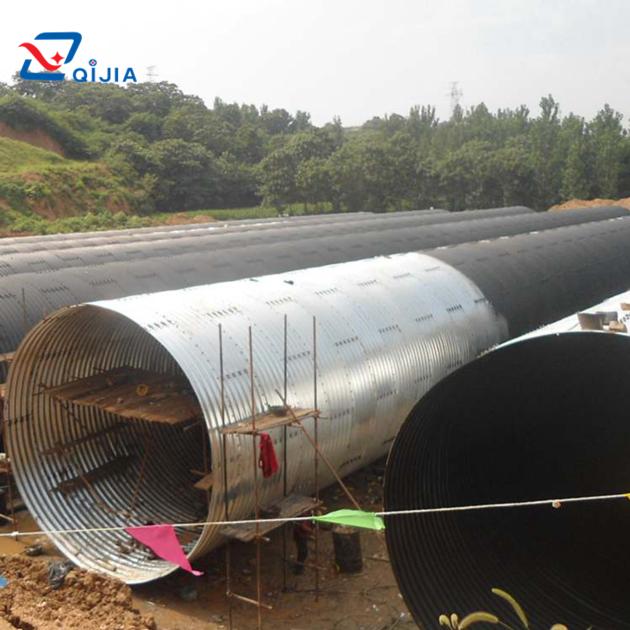

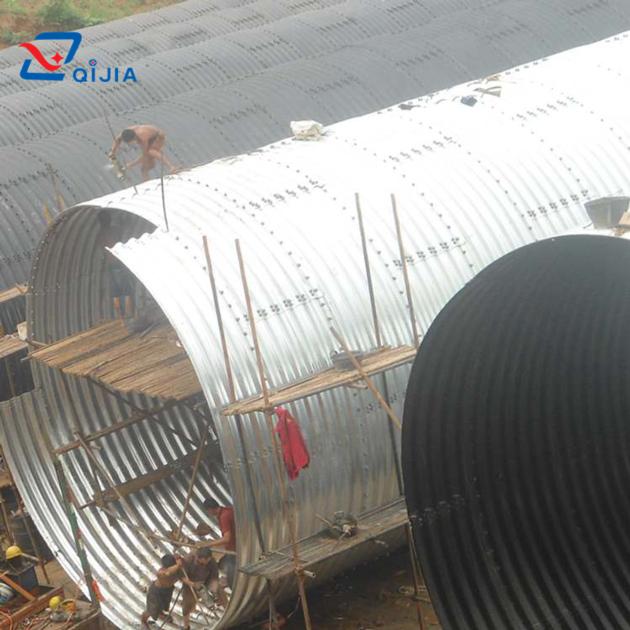

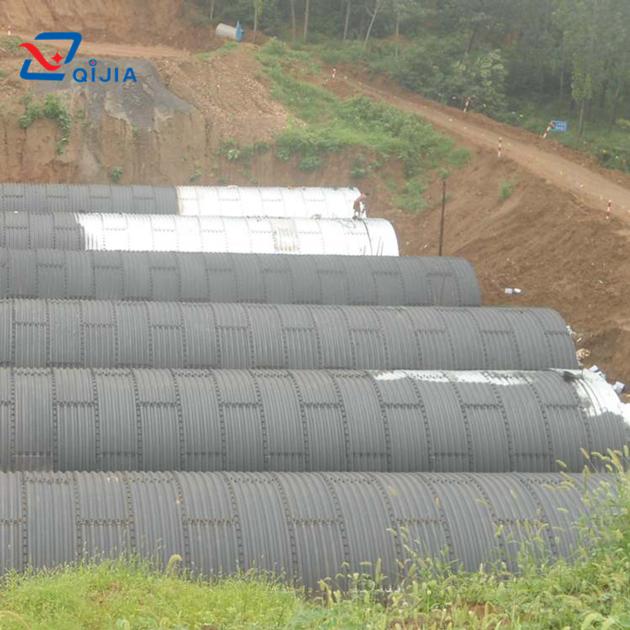

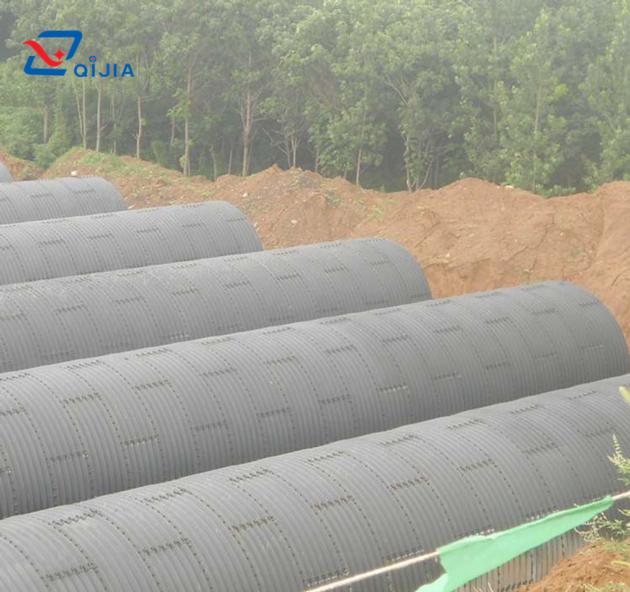

Underground steel culvert multi plates assembled corrugated galvanized metal road culvert pipe

▶ COMPANY PROFILE:
We-Qijia. Co. was founded in the year 2006. We specialize in producing corrugated steel culvert pipe for 19 years.
The total registered capital is RMB 160 million Yuan and covers an area of more than 200 mu. The company has not only introduced German Hi-tech production line, but also become a large-scale local modern manufacturer. The company now has 480 staffs, among them, there are 76 engineering technicians, 21 senior engineers, over 260 professionals for machine manufacturing, over 60 professionals for electronics, 36 professionals for property management, more than 120 professionals for engineering construction and more than 60 administrative staffs, all of them have college degree or above, thus setting up an efficient and united management team.
▶ TECHNICAL SPEC:
1.Material of steel plate: Q235 or SS400
2.Thickness of steel plate:1.5mm-8mm
3.Pipe Diameter: 400mm-9000mm
4.Corrugation Size: 68*13,125*25, 150*50, 200*55, 300*110, 380*140, 400*150
5.Depth of fill: 1.5-60m
6.Anti-corrosion treatment: hot dip galvanized ≥84μm（610g/㎡）
The second anti-corrosion: usually asphalt(bitumen) coated or epoxy resin coated.
Using life:≥100years.
7.Standard: JTT 791-2010 ,or AASHTO M36.
▶ TECHNICAL ADVANTAGES
1. High strength:1.5-3 times stronger than concrete
2. Light weight:1/15-1/5 weight of same specification concrete weight.
3. Long service life:normally more than 100 years
4. Low cost:when the span is larger than 1meter, the bigger the span is, the more obvious it shows
5. Convenient construction:no need of large machinery, only little manual operation.
6. Axial direction:can be used in a severe sedimentation area.
7. Shorten construction period for about half time, save labor charges.
8. avail to improving the structure of the soft soil foundation and the interlocking of the junction of the embankment, which improves the comfortableness of the car on the bridge.
9. Environmental, low carbon:Reduce or abandon normal construction materials, like concrete, yellow sand, cobblestone, and woods, which means a lot to environment.
10. Convenient maintenance, even no need to maintain under certain condition, lower the operating cost.

▶ PACKING & DELIVERY

-Packing Details: Standard export packing or as customer's requirement
-Delivery Time: 4000m within 1 month
-Delivery Term: FOB Tianjin Xingang port or CIF customer’s destination port.
