Skid steer loader, four-wheel drive, various auxiliary tools, Front shovel typeeasy to operate

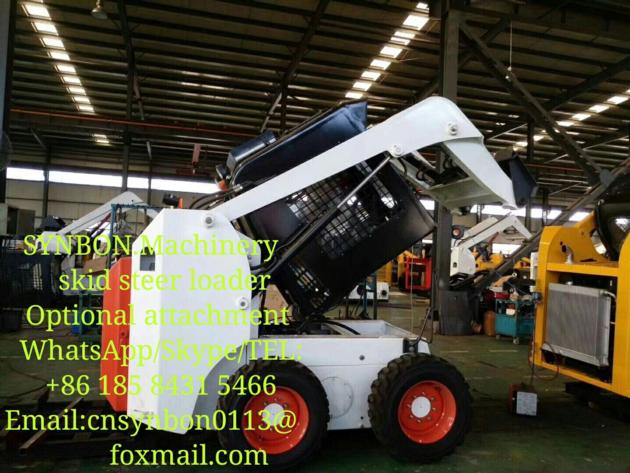

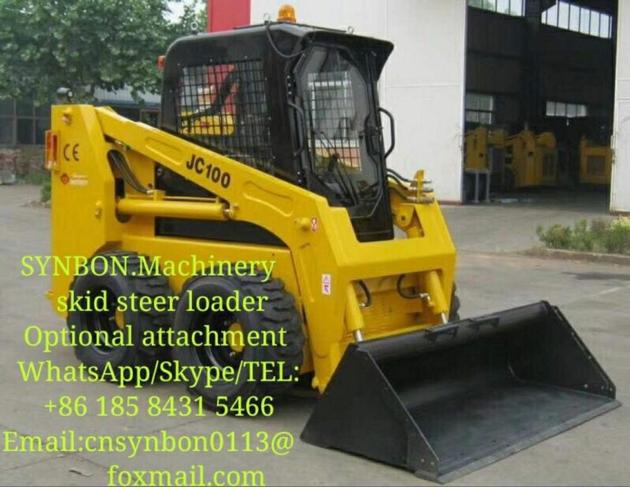

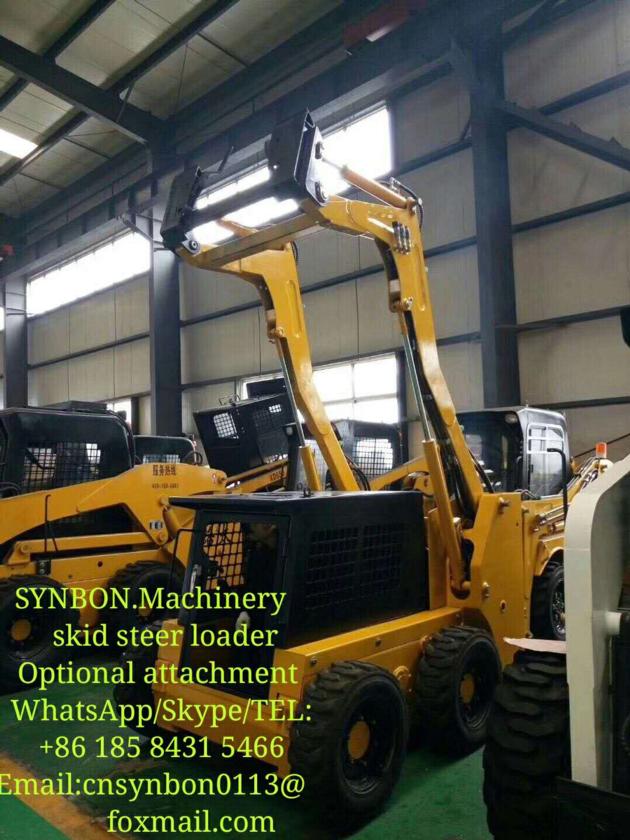

Skid Steer Loader JC-100
Skid Steer Loader JC-100 is a model of multifunctional construction equipment. It is easy to operate due to the small size. And kinds of attachment can be quickly added to implement different works. It is widely used in landscape, project, recycling, garden, road work, construction and agriculture, etc.
Product Features
(1)Compact structure, maneuverable suitable for narrow space operation
(2)Open cabin with mechanical control system
(3)Double accelerograph control
(4)Multi-function with a wide range of attachments
(5)Hydraulic brake
(6)Mechanical levelling system
Main Specifications:
1 Rated operating capacity(kg) kg 1200
2 Tipping load(kg) kg 2400
3 Bucket capacity(m3) m3 0.55
4 Operationg weight(kg) Kg 3500
5 Max. travel speed(km/h) km 0-12
6 Hydraulic pump flow(L/min) L/min 79.2-120.2
7 Fuel tank capacity(L) L 90
8 model 12/16.5NHS
9 Overall dimensions(mm) mm 3560*1800*2050
10 Maximum operating heightmm 4070
11 Height to bucket hinge pin(mm) mm 3105
12 Boom excavated power kg 2680
13 Width with bucket(mm) mm 1850
14 Track width(mm) mm 1500
15 Wheelbase(mm) mm 1185
16 Turn radius before mm 2100
17 Ground clearance(mm) mm 260
18 Dump angle ® 45
19 Dumping height(mm) mm 2450
20 Pour and extend mm 560
21 Rollback at ground ® 26
22 Angle of departure ® 20
23 Bucket digging force kg 2350

================================================
