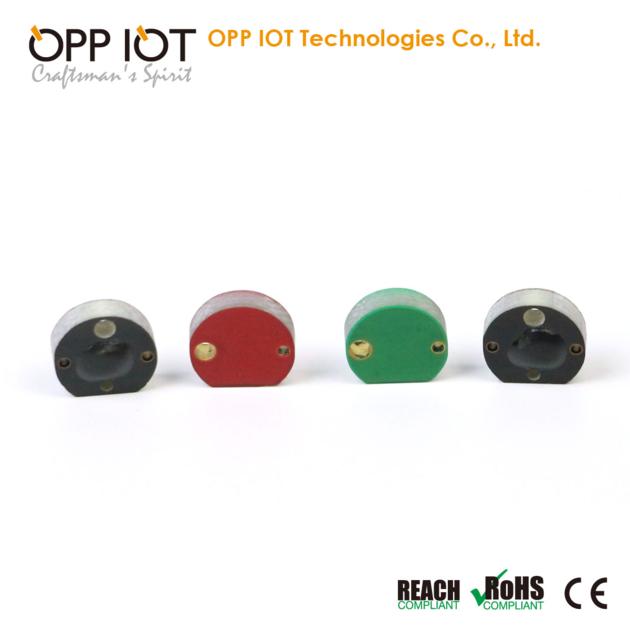

Size 16mm Long Reading Distance RFID UHF Metal Tag
| Price: | US$ 0.5 |
|---|---|
| Minimum Order: | 100 |
| Payment Terms: | T/T |
| Port of Export: |
Product Details
| Model No.: | OPPD10 | Brand Name: | OPP IOT |
|---|
| Certification: | CE/RoHs |
|---|---|
| Specification: | 10mm |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Functional Specifications: RFID Protocol: EPC Class1 Gen2, ISO18000-6C
Frequency: (US) 902-928MHz, (EU) 865-868MHz
IC type: Alien Higgs-3
Memory EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
Write Cycles: 100,000times
Functionality: Read/write
Data Retantion: Up to 50 Years
Applicable Surface: Metal Surfaces
Read Range :(Fix Reader:ThingMagic FU-M6-E) 150cm - (US) 902-928MHz, on metal130cm - (EU) 865-868MHz, on metal
100cm - (US) 902-928MHz, on metal95cm - (EU) 865-868MHz, on metal
Warranty: 1 Year
Physical Specification:
Size: Diameter10mm
Thickness: 3.0mm without IC bump, 3.7mm with IC bump
Material: FR4 (PCB)
Colour: Black(Red, Blue, Green, White)
Mounting Methods
Weight: 0.5g
Environmenal Specification:
IP Rating: IP68
Storage Temperature: -40®С to +150®С
Operation Temperature: -40®С to +100®С
Cerifications: Reach Approved, RoHS Approved, CE Approved
|
