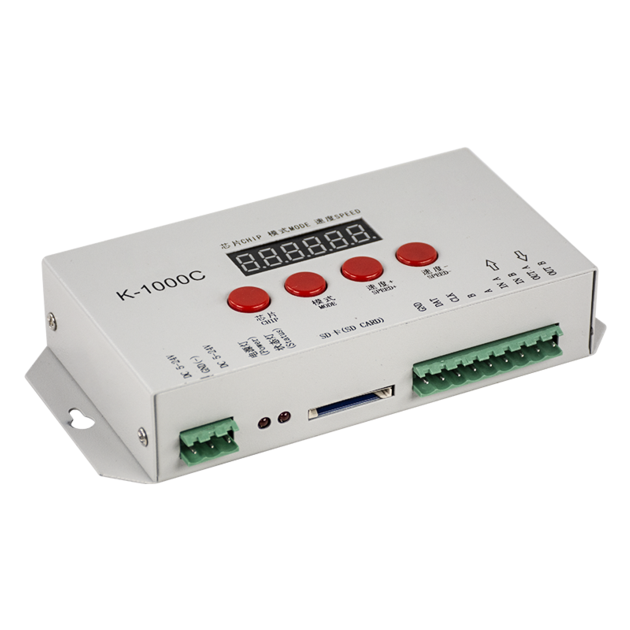

Single-port offline Controller with SD card (256MB) K-1000C digital led strip led controller

Single-port offline Controller with SD card (256MB) K-1000C digital led strip led controller

Product Description
1.Product description

Offline control K-1000C digital led strip led controller with SD card, you can program the lighting effect and save the effect in SD card. It can be used with dmx led strip, such as LC8812,LC8822, LC8823, LC8808, WS2811, WS2812B , UCS1903, LC8808s, GS8208 etc.

2.Features:

1. 32 to 65536 degree Gray control, Gamma correction procession handle.

2. Support various point, line light source, and all kinds of rules and specific shaped handle.

3. The controller has one output port, can support up to 512/2048 pixels(DMX lighting support up to 512 pixels).

4. Play content stored in the SD card , the SD card can store up to 32 effects File, SD card capacity support 128MB-32GB.

5.The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M° pure copper power cord.

6. The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.

7. For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.

8. Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.

9. Enhanced 485 TTL and 485 differential (DMX) signal output.

10. The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.



Product Name model Description Support IC model
Single port offline Controllerr LC-K-1000C
1. The input voltage is DC5V-24V.
2. Up to 2048 ICs can be set.
3. SD self-programming change mode.
4. Net weight 0.35Kg with packaging; SD card*1; carton*1) See specifications for details
5. With buttons, multiple controllers can be cascaded and synchronized to achieve splitting of pictures, lines and pictures;
6. 1 port output, which can be equipped with 1024/2048 lights; 7. It can be used offline by a single unit,
LC8812,LC8822, LC8823, LC8808, WS2811, WS2812B , UCS1903, LC8808s, GS8208 etc.


(All the above ICs and APPs can be selected. Both Android and Apple mobile phones can be used)
Single-port offline Controller with SD card (256MB) K-1000C digital led strip led controllerSingle-port offline Controller with SD card (256MB) K-1000C digital led strip led controller
Packaging & Shipping
Packaging:

Package dimensions:115*80*27mm.
Net Weight:0.35kg
Packing sise:410*310*150mm/60PCS

Shipment:

1.Ship Way:Door to Door express or by Air and Sea

2.Shipping port: Shenzhen, Mainland China

3.Leadtime:Sample can be delivered in 3-5days

4. Production lead time for 10000M:7-10days

Our Services
1.Reply you in 24 hours

2.Customized design,ODM/OEM Customized Service are available
3.Professional engineer team provide full support in the whole control system solutions.
4.Experienced sales consultant to cooperate with your work





Warranty:

1.All products we sell are in good quality and have been tested before they are shipped out.

2.We offer 3 years Warranty.
