SYNBON SY936 Front shovel wheel loader, a variety of auxiliary tools, simple operation, wide applica

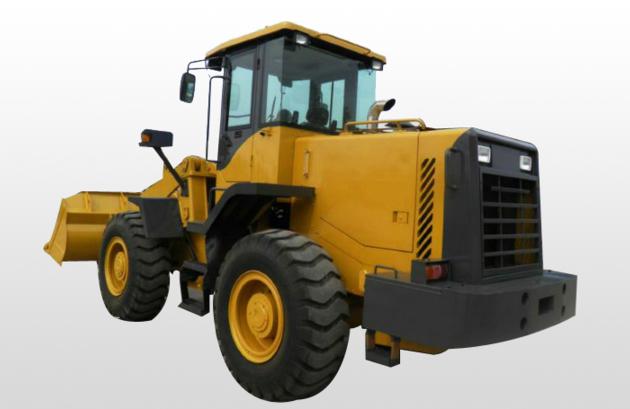

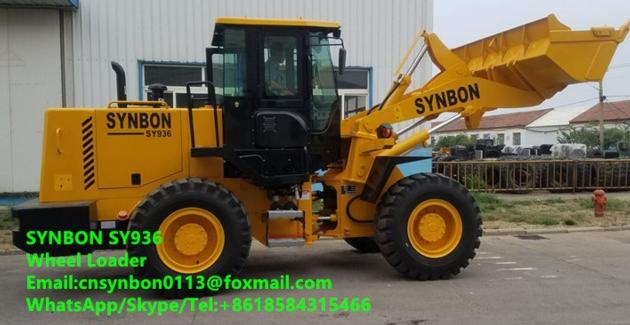

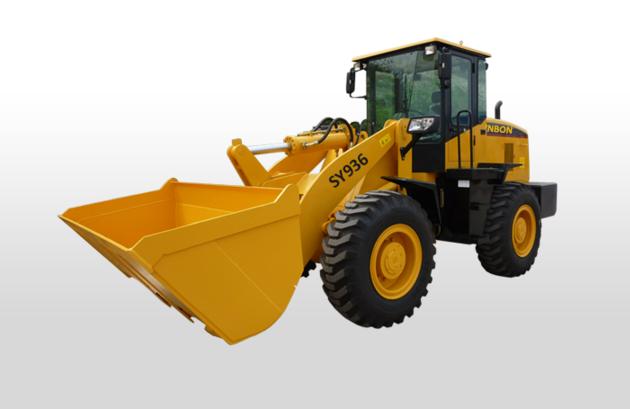

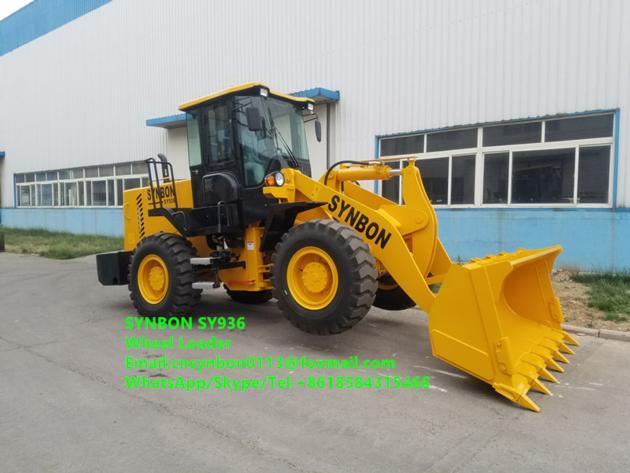

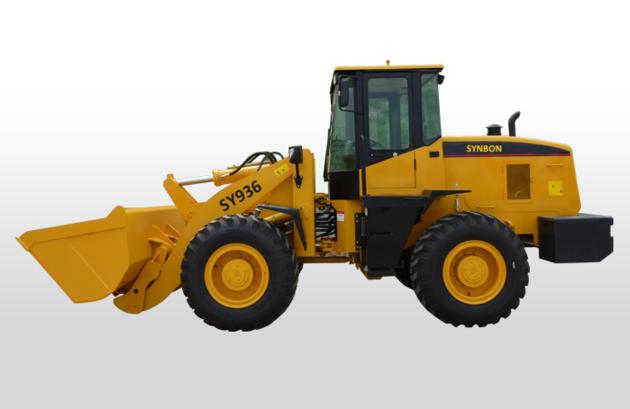

SYNBON wheel loader SY-936
1、 Equipped with Yuchai engine of high quality with strong torque and power.
2、 the hydraulic steering system provides much stability; powered shifting allows much convenience and flexibility in operating.
3、 A new type of sealed cab with an all-in-one dashboard is designed, which keeps a driver safe and comfortable.
4、 Pilot and air conditioners are standard equipments, whereas Cummins Engine, rock bucket,coal hopper, quick coupler and fork are optional ones.
Performance
rated loading
3000kg
overall weight
9600kg
bucket capacity
1.7-2.5m3
maximum traction force
95KN
maximum breakout force
127KN
maximum grade ability
30℃
maximum dump height
3100mm
maximum dump reach
1006mm
overall dimension (L×W×H)
6890*2430*3070mm
minimum turning radius
5097mm
Engine
model
Weichai Duetz
type
Vertical, in-line, water cooled, 4-stroke diesel engine
NO. of cylinder-bore*stroke
6-108*125
rated power
92kw—2200r/min
maximum torque
500N.m

min. fuel-consume ratio
≦210Kw h
Transmission system
torque converter
YJ315-X
gearbox mode
Power shaft normally engaged straight gear
gears
4 forward 2 reverse
maximum speed
40km/h
Drive axles
main reducing spiral
bevel gear grade 1reduction
decelerating mode
Planetary reduction grade 1
wheel base (mm)
2660mm
wheel tread
1800mm
ground clearance
400mm
Hydraulic system
system working pressure
16,5MPa
boom lifting time
4.83
total time
9.15¯0.5s
Brake system
service brake
air assist disc brake on 4 wheels
parking brake
Manual disk brake
Tyre
type specification
17.5-25
front tyre pressure
0.4Mpa
rear tyre pressure
0.35Mpa
