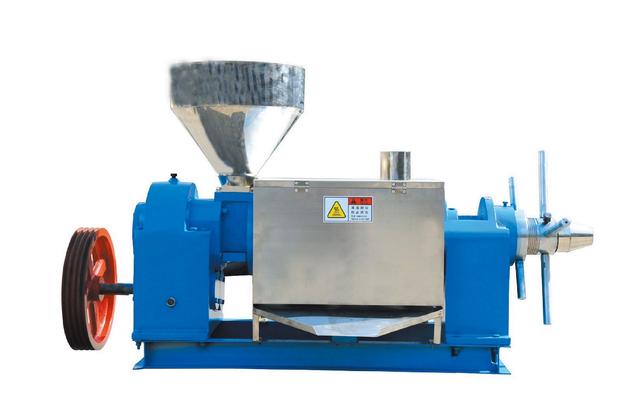

Mustard Oil Pressing Machine with Big Processing Capacity

The spiral oil press has electric control part, vacuum filter, pressing chamber,pressing spindle, motor etc.This is a complete oil extraction line and is suitable for commercial working, small oil mill in city or countryside.

Model 6YL-118E
Production Capacity(T/24h) 5.8
Main spindle speed 30-35rpm
Matching Power 11KW+1.1KW
Rated Power 380V,50HZ
Vacuum Filter Size None
Automatic Grade Automatic
PreHeating function Yes
Size 1900*800*1200mm
Weight 630kgs
Package Wood case


Features & Advantages:

1. Proper for hot oil extraction., oil is purer with strong aroma.
2. Higher degree of automation.automatic pressing, filtering and temperature controling.
3. Due to slow speed of the spindle, higher oil output rate, also lower residual oil rate.
4. Alloy steel & stainless steel ensure the oil press machine durable and cleaning easily.
5. The pressing screw is made of Cr12 steel and its service life is 150 000kgs(raw material)
6.Various of raw materials peanut, sesame, rapeseed, sunflower, soyben, linseed, pumpkin seed, castor seed, mustard seed are fit for the machine.also this model is best for cold extraction of olive, walnut, pine seed, avocado, coconut, tea seed, herbal, flower, orange peel, grape seed etc
7.Animal oil like sheep fat oil, beef fat oil are also suitable for the hot working.
8.After filtering by vacuum filter & centrifugal filter. high quality edible oil is available(no water or residual contained)
9.Application industry: food, medicine,cosmetic, feed, chemical etc.
Reminder:
1.one time pressing is enough for parched raw materials.
2.The production capacity is different when choose different raw materials.
3.Pressure filter and centrifugal filter are available for the model.
4.Prepared machines like roaster machine,sheller are also available.
5.without oil filter and AC motor.
