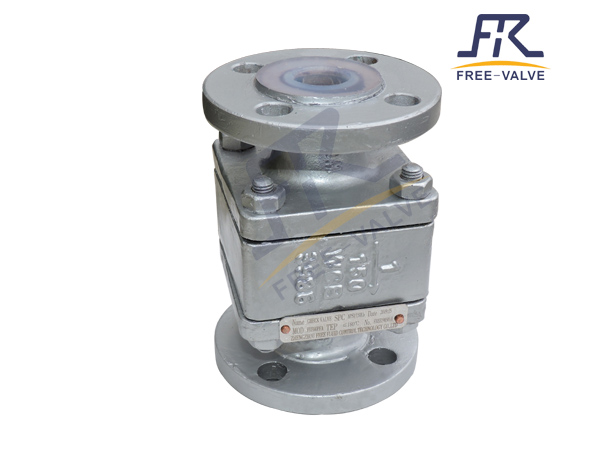

Lined Flanged Floating Ball Check Valve,Floating Ball Check Valve for Small Size Flange Type
Price: | US$ 200 / Set |
---|---|
Minimum Order: | 1 |
Payment Terms: | TT,LC |
Port of Export: | shanghai |
Product Details
Model No.: | FRHQ40 | Brand Name: | FREE-VALVE |
---|
Certification: | |
---|---|
Specification: |
1.Size Range: DN15~DN200 2.Applicable Temperature: 0~200℃ 3.Connection Type:Flange 4.Lining Material:PTFE , PFA , FEP 5.Body material:WCB, CF8 ,CF8M 6.Pressure test:GB/T13927, API598 7.Face to Face: GB/T12221, ASME B16.10 |
Packaging & Delivery
Packaging: | wooden box |
---|---|
Delivery/Lead Time: | 30 days |
Production Capacity: | 200 set/month |
Product Description
FREE-VALVE’s Lined Flanged Floating Ball Check Valve is straight type three piece design and manufactured in full port uni-directional body design fully lined with FEP, PFA And PTFE having Flanged Ends.The valve uses PTFE as the rolling valve ball, the valve can be opened or closed by ball rolling up and down in the slide of the body chamber body under the medium acting.Under normal flow the valves solid PTFE ball is pushed away from it’s seat and fluid flows through the valve, in a backwards flow condition the ball is pushed firmly back into it’s seat and prevents flow through the valve stopping process, etc.
Features
1. The valve body adopts full bore, with large flow and small resistance.
2. Good sealing performance, noiseless closing, no water hammer.
3. Horizontal or vertical installation is acceptable.
4. Fully Lined Design to eliminate surface contact which provides maximum corrosion resistance
Application:
FREE-VALVE’s Lined Flanged Floating Ball Check Valves are mainly used in cold water, chemical and other pipe networks to prevent media flow back.
Model:FRHQ40
Price:200-1000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
Wechat:FreeValve
