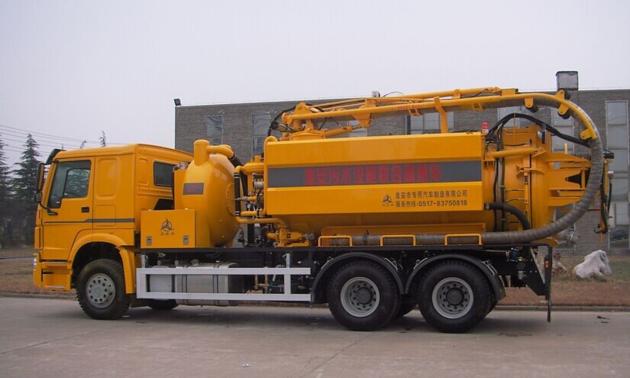

HOWO combination vacuum suction sewer cleaner truck

Engine
Make and model………………… WD615.69
Maximum output………………336 HP@ 2200 rpm ( 247KW @ 2200 rpm )
Max. torque ............ 1300NM@1300-1600 rpm
emission standard……………………EUROII

Clutch
Model………φ430


Gearbox
Type..………………… HW15710
No. of speeds ......... 10 forward, 2 reverse

Steering
Type....................ZF8098

Fuel tank capacity………400L

Tire ……..........…295/80R22.5
Quantity………………9+1

HOWO cabin with one bed and air conditioner

Overall dimension (length×width×height) .....……………………10426×2496×3730mm
Wheelbase……………4600+1350mm
Front Track…………2022mm
Rear track……………1830mm
Approach angle………16º
Departure angle……12º
Front overhang………1500
Rear overhang…………2900

Body

Waste water tank:
Volume………………………………………………6000L
Material……………………………………………Q235
Thickness……………………………………………5mm
Discharging type……………………Rear or dumping

Vacuum Pump:
Type………………………………………Water-cooling
Flow of air……………………………………450m3/h

Clean water tank:
Volume……………………………………………5500L
Material…………………………………………Q235
Thickness…………………………………………4mm
High pressure water pump:
Type………………………………triple plunger pump
Pressure……………………………………………18MPA
Flow………………………………………………130L/min

Winch:
Hose length…………………………………………60M
Nozzle……………………………………………2 unit
