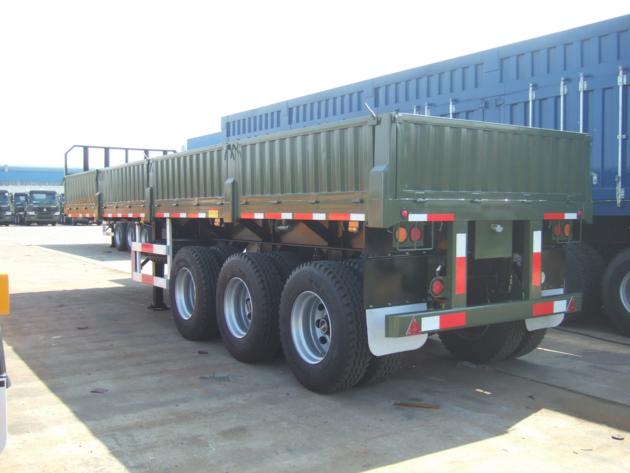

Flat Top Semi-Trailer 3 axles

Dimension:
Length: 12,336 mm«10mm (approximate)
Width: 2,490 mm «10mm (including mud guard)
Height: 1,476mm @ unload (without twist locks)
King Pin Location: 900 mm from the front face of the front bolster (No confirm).
Axle spacer: 7200mm + 1310mm + 1310mm
Fifth Wheel Height: 1,230mm with the chassis level (No confirm).
Landing Gear location: 2,440mm behind the king pin location(No confirm).
(The above dimension will be adjusted according to the tractor specification. )

Weight:
Tare Weight (Tolerance 0~-4%): approximate 7,490 kg
Max. Payload: 40,000 kg
GVWR: 47,490 kg

OEM Parts Configuration:
King Pin: 2” exchangeable(bolted) king pin, supplier & type: JOST KZ1010.
Twist Locks: Twelve (12) retractable ISO type twist locks.

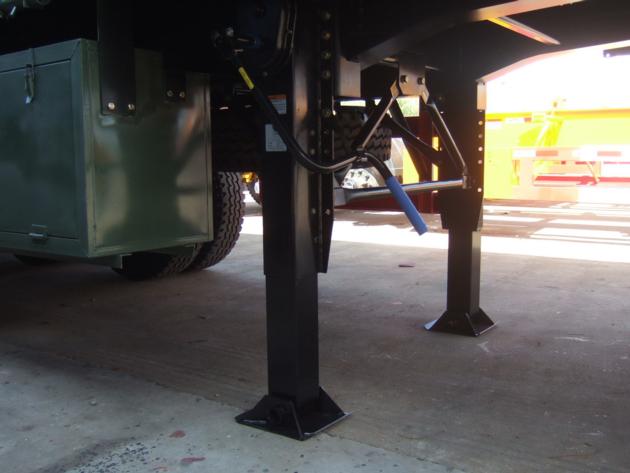

Landing Gear: 2 speed road side winding with sand shoe, Lifting capacity 24T. Type: JOST D200T or HOLLAND 50000, left operating.
Suspension: Mechanical suspension with 8 pieces leaf springs (90mm width by 16mm thickness per leaf).
Axles: FUWA 13 tons capacity..
Tires: 12.00-20, Nylon Tyres,12 pieces;
Brake System: Dual air brake system, WABCO relay emergency valve, none ABS brake system .
Brake Chamber: 30/30 type on rear two axles, 30 type on front axle
Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.
Accessories:

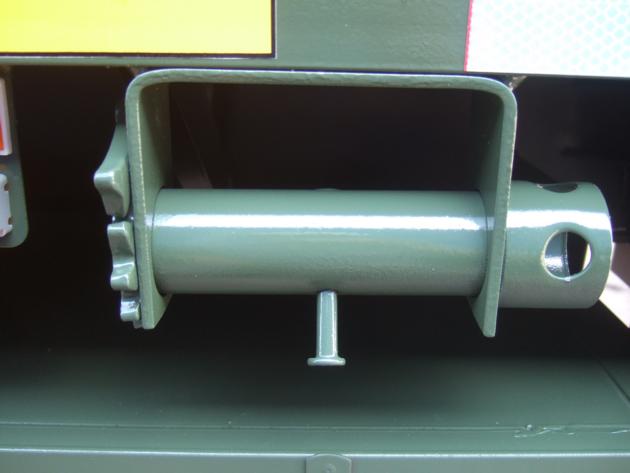

Spare Tire Carrier: Equipped one set per chassis without spare tire.
Side Guard: None Steel Side Protection.
Tool Box: Equipped one set.
Painting: Color by customer’s requirement.
