Factory Supply Auto Shut-off Nozzle for Diesel Dispensing
| Price: | US$ 12.45 |
|---|---|
| Minimum Order: | 10 |
| Payment Terms: | L/C T/T Western Union Paypal |
| Port of Export: | ningbo |
Product Details
| Model No.: | ZYQ89-11A | Brand Name: | Galaxy/ Yinhe/OEM |
|---|
| Certification: | ISO9001 PEI |
|---|---|
| Specification: |

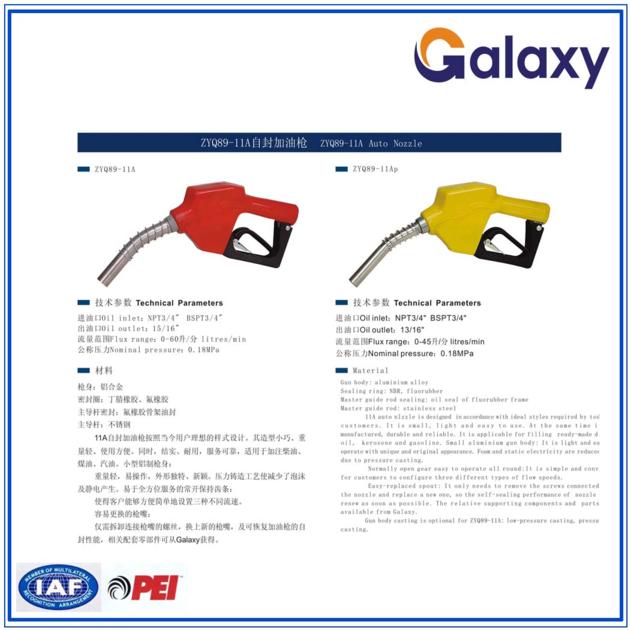

Technical Parameters Oil inlet:NPT3/4" BSPT3/4" Oil outlet:15/16" Flux range:0-60 liters/min Nominal pressure:0.18MPa Color of jacket :Red Yellow Green Blue Black |
Packaging & Delivery
| Packaging: | Cartons |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: | 370x360x420mm |
Product Description

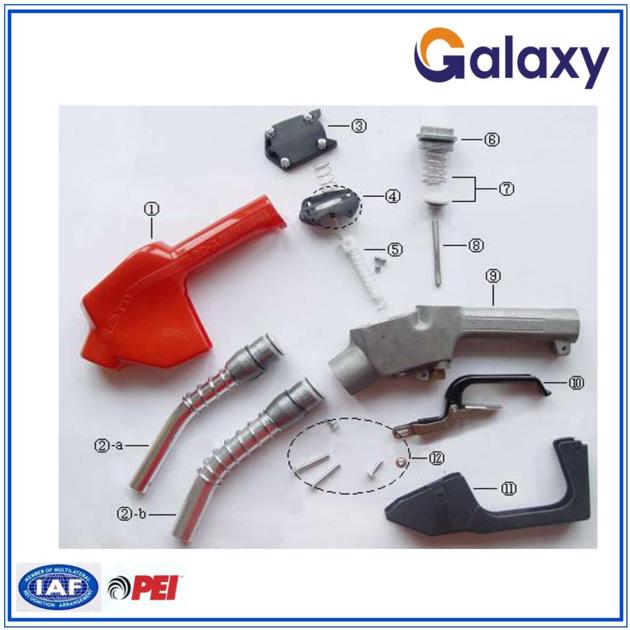

Material Gun body : aluminium alloy
Sealing ring: NBR, fluororubber
Master guide rod sealing : oil seal of' fluororubber frame
Master guide rod: stainless steel
ZYQ89-11A auto nozzle is designed in accordance with ideal styles required by today's customers. It is small, light and easy to use. At the same time it is well manufactured, durable and reliable. It is applicable for filling ready-made diesel oil, kerosene and gasoline. Small aluminium gun body : It is light and easy to operate with unique and original appearance. Foam and static electricity are reduced due to pressure casting.
Normally open gear easy to operate all round: It is simple and convenient for customers to configure three different types of flow speeds.
Easy-replaced spout : It only needs to remove the screws connected with the nozzle and replace a new one, so the self-sealing performance of nozzle can renew as soon as possible. The relative supporting components and parts are available from Galaxy.
Gun body casting is optional for ZYQ89-IIA: low pressure casting, pressure casting.
When oiling, the switch rises and the mandril opens the master valve to let pressure oil flow into its lower chamber. The pressure oil applies pressure on the skew valve and opens it with oil streaming into the oiled container through the nozzle. In the flow of oil, the air in the cavity behind the skew valve is carried away. When the container is not full of oil, the carried-away air is compensated by that from the wind-pipe and the windpipe nozzle. The nozzle is not self-sealing. When the container is completely filled with oil, the air hole is blocked up by the oil, and the air can not be compensated. Negative pressure emerges after the air in the cavity is taken away. At this time, the diaphragm distorts upward and the diaphragm axis moves with it. Then the stopping steel beads slide toward the center and the axis falls down. Without the balance of fixed pivot point, the master valve automatically seals under the pressure of spring. It is plays the role of self-sealing.
