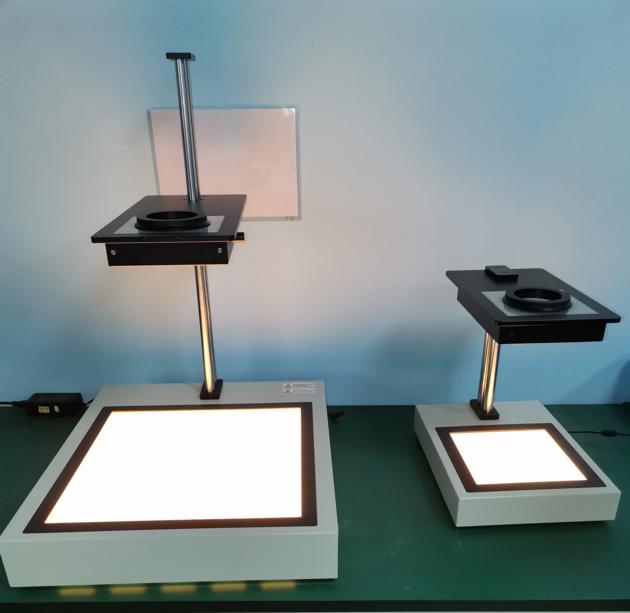

Extra-large stress meter (Ref. PSV-413L)
| Price: | US$ 5700 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Shanghai |
Product Details
| Model No.: | PSV-413L | Brand Name: | PTC |
|---|
| Certification: | |
|---|---|
| Specification: |
Model PSV-413L Analyzer Diameter 78mm Viewing field 400×400mm Glass tempering grade 0-10 Measuring range ( Optical retardation ) 0-280nm Measure height ( adjustable ) Max 600mm Light Source Warm white LED light 10W Power 220VAC 50-60HZ Size W485×D584×H732mm Weight 14Kg |
Packaging & Delivery
| Packaging: | BOX |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Function 1. Observe thermal stress distribution after annealing
2. Measure glass tempering grade
3. Measure optical retardation caused by thermal stress in glass
Detecting object
transparent glass products with complex construction.
such as : glass container , glass handicraft ,glassware , tableglass , lamp
penicillin bottle, light tube, light bulb,solar glass ,automobile glass etc
Instrument structure: a 1/4 wave plate in the analyzer and a full-wave plate in the polarizer (wavelength 565nm). Slow axis of the plate is at 90û to the polarization plane .
5.A dial on the Analyzer is used to measure the rotating angle (range: 0-180û)
Model PSV-413L
Analyzer Diameter 78mm
Viewing field 400×400mm
Glass tempering grade 0-10
Measuring range ( Optical retardation ) 0-280nm
Measure height ( adjustable ) Max 600mm
Light Source Warm white LED light 10W
Power 220VAC 50-60HZ
Size W485×D584×H732mm
Weight 14Kg
Detecting methods
Sensitive Color Tint Method and Senarmont Compensation method
|
