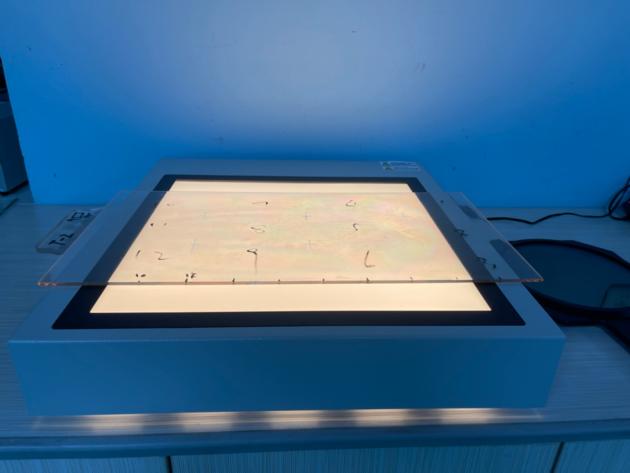

Extra-large Handheld Polariscope PSV-202-DL

The handheld Polariscope ( Ref.PSV-202-DL ) has been designed to cover a wide range of strain viewing applications.
It can be applied to the quality control inspection of glass and plastics components and may be employed as a vertical or horizontal viewing instrument.

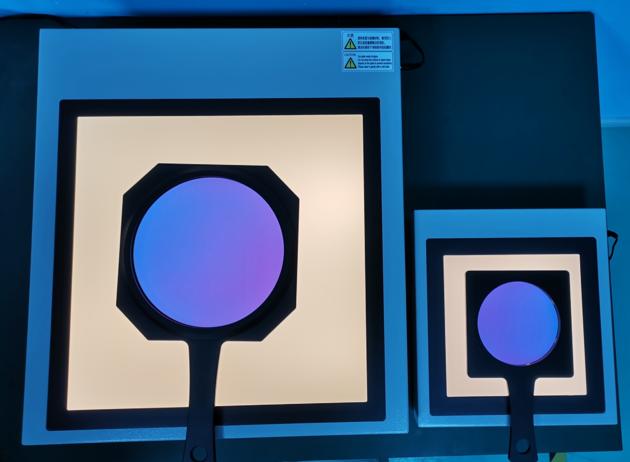

Different from common bench type Polariscope , this handheld Polariscope adopt seperating design , that means the analyzer and polarizer are movable . In this way , the net weight is almost reduced to half . This lightweight design make it more convenient to carry .

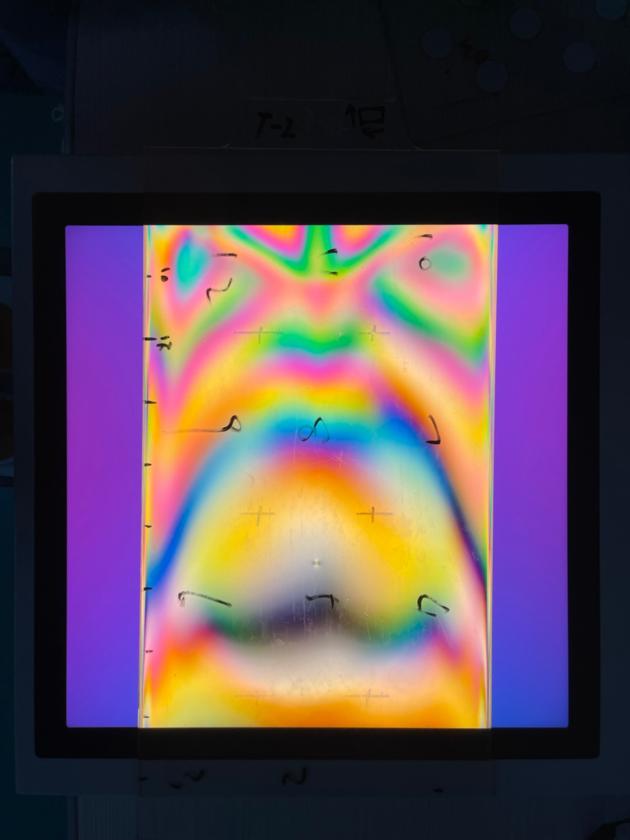

The working space available within the unit enables a wide variety of components to be accommodated for hand held examination under polarizing light.

Detecting object
1. any transparent glass products
such as : fish tank , mobile phone cover, lighting tube, solar glass ,automobile glass,sapphire, glass container , glass handicraft
2. any transparent plastic samples
such as : PET preform, plastic bottle , cosmetic bottle , beverage bottle, plastic tray, plastic film
3. Crystaline material

Specifications
Optical path difference of full-wave plate : 560nm
Viewing field（ illuminating area ）: 400mm*400mm

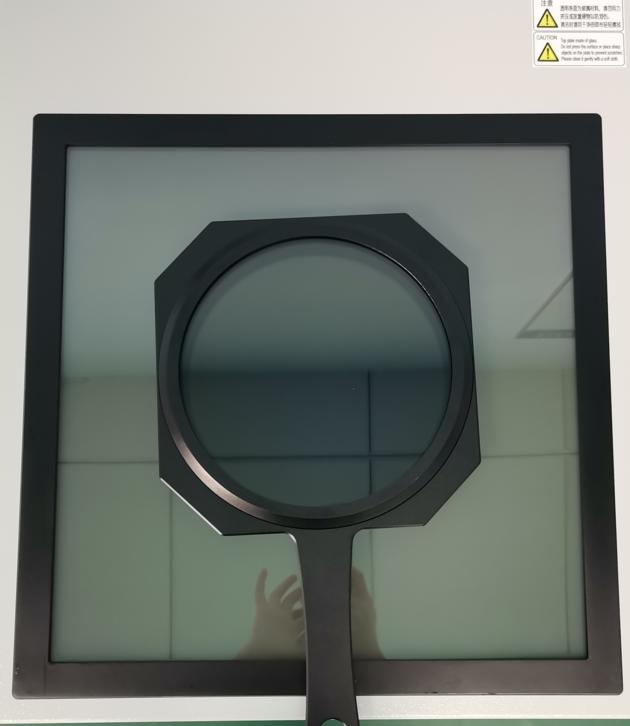

Analyzer（ on the top ) : diameter 200mm
Overall size:500mm*500mm*90mm
Voltage: 220VAC
Light source: White LED lamp
