Duplex Triplex Quadruplex Aluminum Service Drop Cable
Price: | US$ 1.7 / Meter |
---|---|
Minimum Order: | 100meters |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Port of Export: | Qingddao/Tianjin/Shanghai/Guangzhou/Ningbo |
Product Details
Model No.: | Brand Name: | Huadong cable |
---|
Certification: | |
---|---|
Specification: |
ANSI/ICEA S-76-474 Neutral-supported power cable assemblies with weather-resistant extruded insulation rated 600V ASTM B-230 Aluminum wire, 1350-H19 for Electrical Purposes ASTM B-231 Aluminum conductors, concentric lay-stranded ASTM B-232 Aluminum conductor, concentric-lay-stranded,coated steel-reinforced(ACSR) ASTM B-399 Concentric-lay-stranded 6201-T81 aluminum alloy conductor ASTM B-498 Zinc-Coated steel core wire for ACSR We can also supply other international Standard, eg:BS/ICEA/NFC/VDE/DIN standard etc |
Packaging & Delivery
Packaging: | Wooden or Iron Drum |
---|---|
Delivery/Lead Time: | Shipped in 5 days after payment |
Production Capacity: | 150 Kilometer/Kilometers per Month |
Product Description

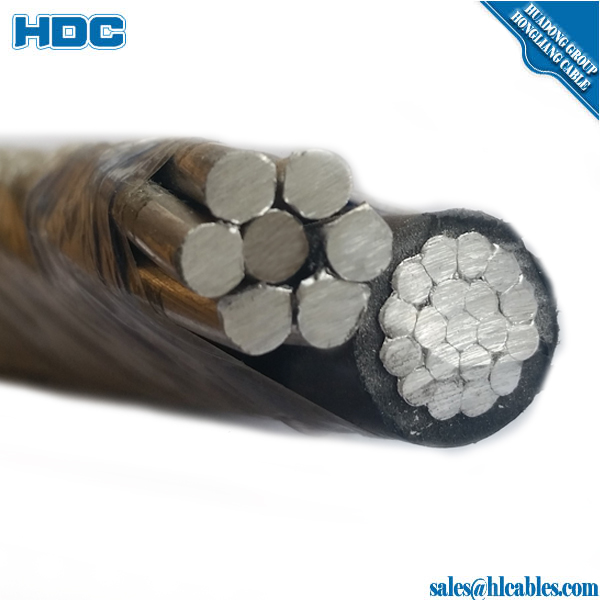

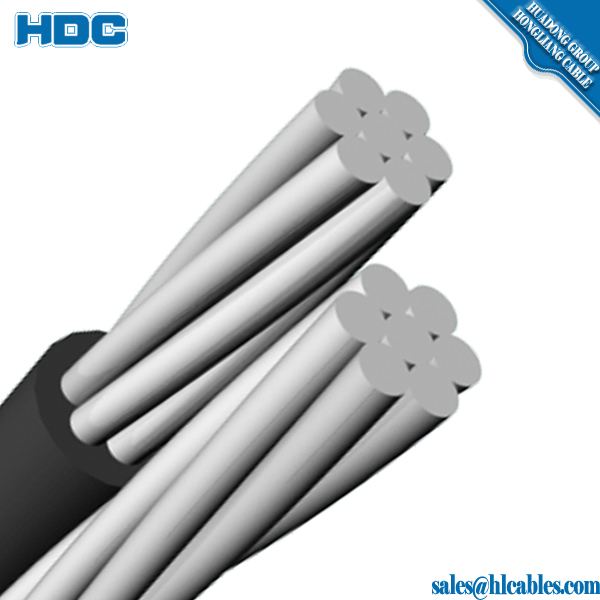

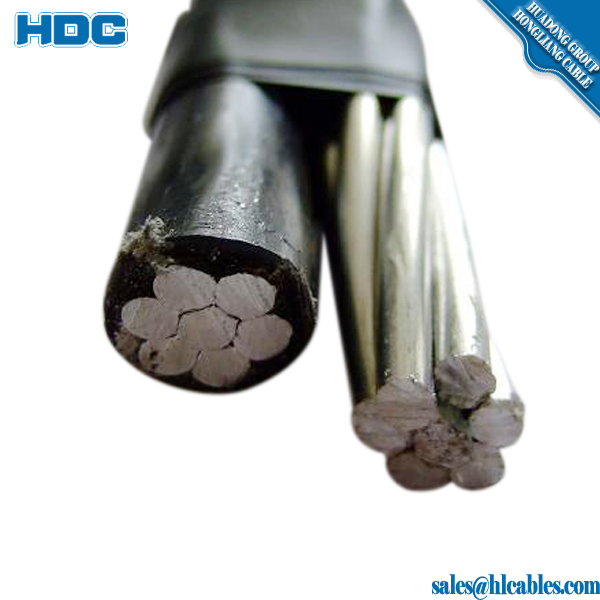

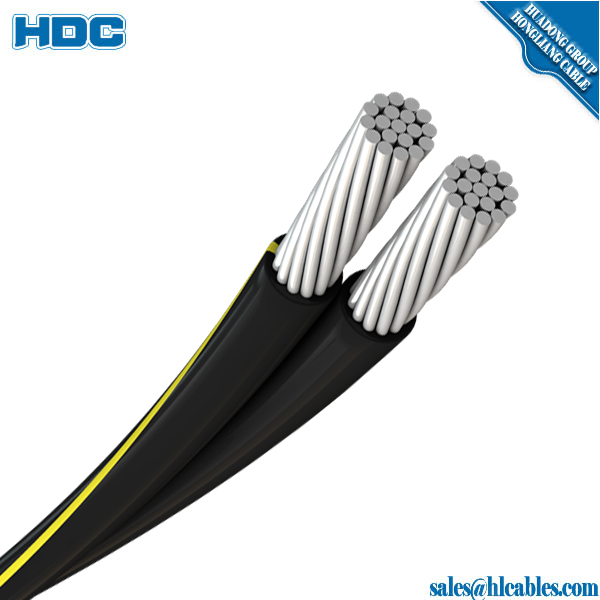

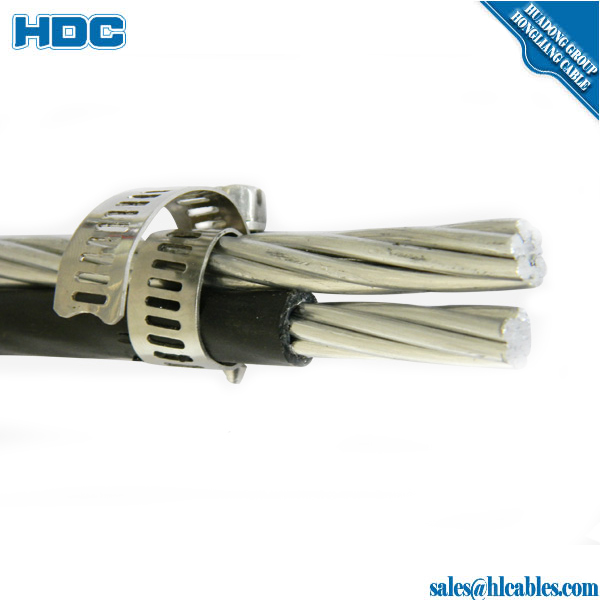

Duplex Service drop cable Description: Duplex Overhead Service Drop Cable assemblies consist of one insulated phase conductor and a bare neutral conductor. They are intended for use either as a service drop cable between a power pole and the service entrance, or as a secondary distribution cable between poles.Their use should be limited to circuits not exceeding 600 volts phase-to-phase and a 90®C normal conductor temperature.
Duplex Service drop cable Construction:
Cable assemblies are available with the following neutral conductors;
Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded
Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded;
Aluminum alloy 6201-T81, concentric-lay-stranded
Insulation Material:
1.The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE).
The XLPE insulation meets the requirements of ANSI/ICEA S-76-474-2004 (Standard for Neutral-Supported Power Cable Assemblies with Weather-Resistant Extruded Insulation Rated 600 Volts).
2.Alternatively, black linear low-density polyethylene (LLDPE) insulation with a 75®C temperature rating is available upon request.
3. The LLDPE insulation meets the requirements of ASTM Standard D1248-05 (Standard Specification for Polyethylene Plastics Molding and Extrusion Materials).
