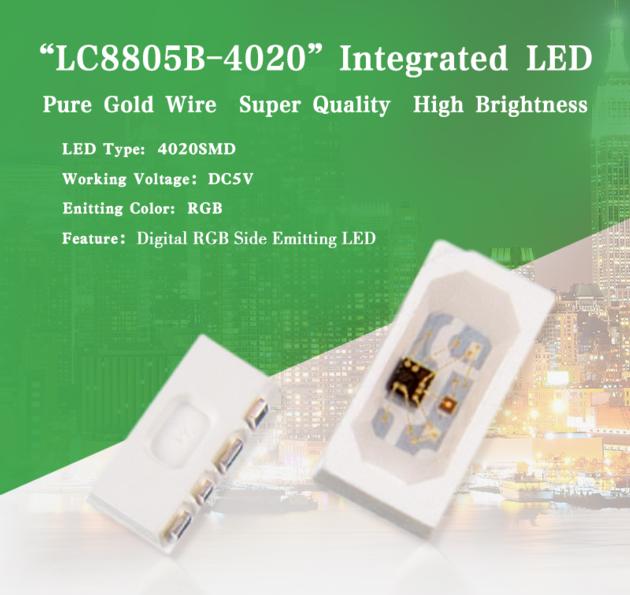

DC5V LED Chip SMD 4020 LED Side Emitting Chip Digital RGB SK6812 Chip

1. Product Overview :

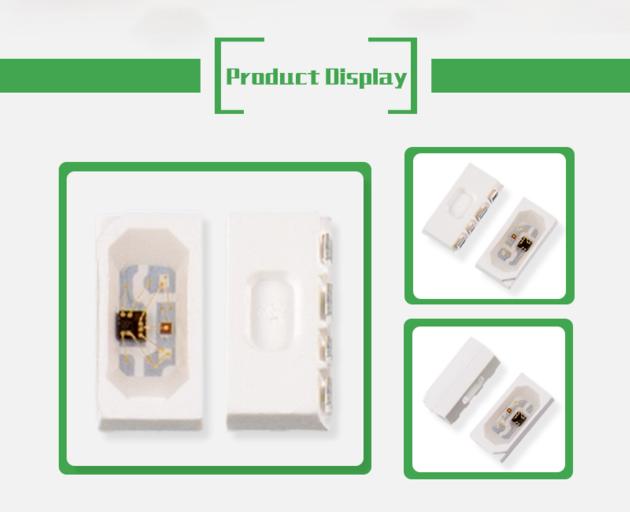

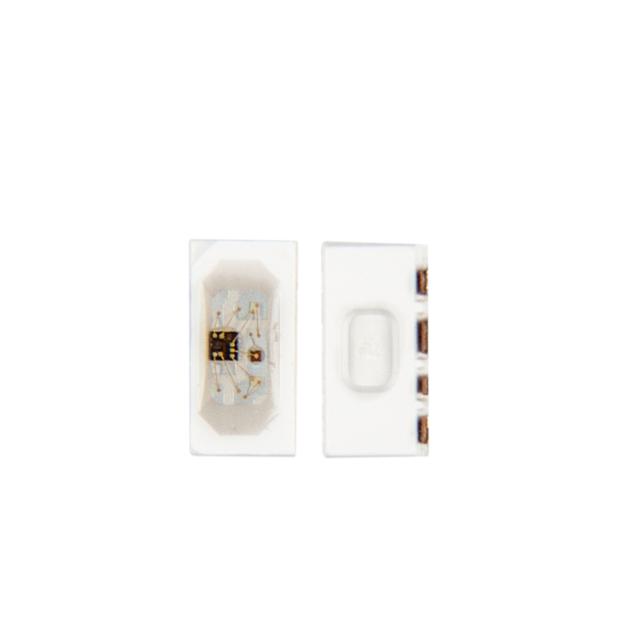

LC8812B is an external controlled intelligent LED with control circuit and light emitting circuit in one 4020 components. Each LED is a pixel, The pixel contains the intelligent digital interface data latch signal shaping amplifier driving circuit, power supply voltage regulator circuit, built-in constant current circuit, high precision RC oscillator, and the output driver adopts patented PWM technology, which Effectively ensure that the color of each pixel is consistent.
The data protocol being used is unipolar NRZ communication mode. After the pixel power-on reset, the DIN port receive data from controller,When the frist 24-bit data is extracted by the first pixel and sent to Data latch which inside the pixel ,The remaining data is processed by the internal shaping circuit, The remaining data is shaped and amplified by the internal shaping processing circuit, and then the output is forwarded to the next cascaded pixel through the DO port. The Data transmission through each pixel, the signal will reduce 24bit , The pixel is reset after the end of DIN. Using automaticshaping forwarding technology makes the number of cascaded pixels without signal transmission, only limited by signal transmission speed.
The LED has a low driving voltage, environmental protection and energy saving,high brightness, scattering angle, good consistency, low power, and long lifespan . The control circuit is integrated in the LED ,which make Components smaller and more easier to install.

2. Applications
Full-color module, Flexible led Strip ,Rigid led strip
LED decorative lighting, LED Panel a variety of electronic products, electrical equipment etc
Packaging:


Package:4000pcs/reel, each reel is one bag

Anti-static bags+Neutral packing carton box

Shipment:

1.Ship Way:Door to Door express or by Air and Sea

2.Shipping port: Shenzhen, Mainland China

3.Leadtime:Sample can be delivered in 3-5days

4. Production lead time for 10000M:7-10days

Our Services
1.Reply you in 24 hours

2.Customized design,ODM/OEM Customized Service are available
3.Professional engineer team provide full support in the whole control system solutions.
4.Experienced sales consultant to cooperate with your work


Warranty:

1.All products we sell are in good quality and have been tested before they are shipped out.

2.We offer 3 years Warranty.
