Cable Test Van ETL-110K
| Price: | US$ 1 |
|---|---|
| Minimum Order: | |
| Payment Terms: | PIA - payment in advance |
| Port of Export: |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |

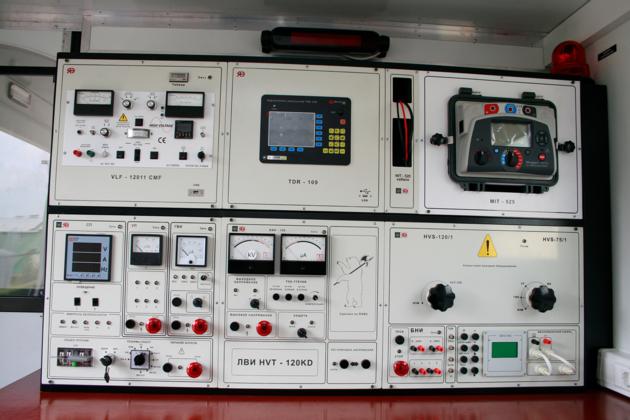

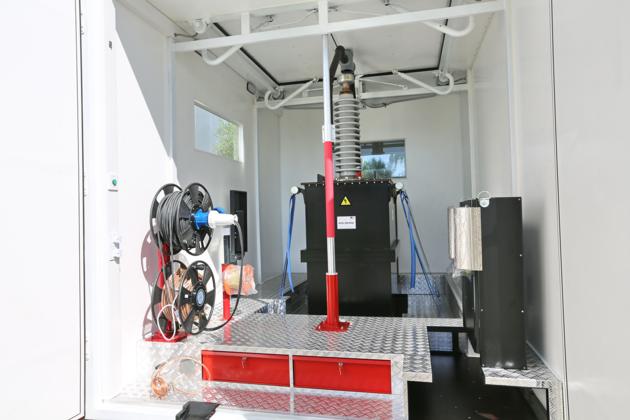

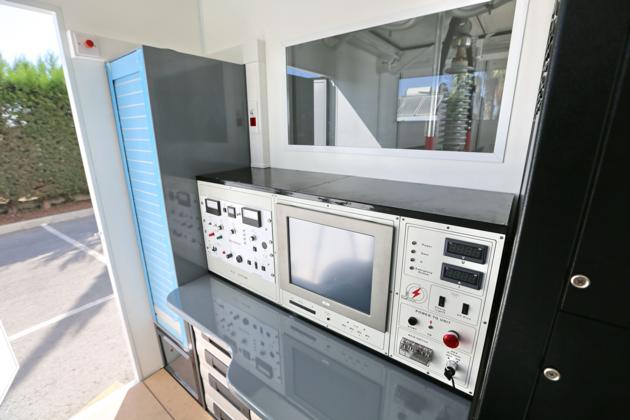

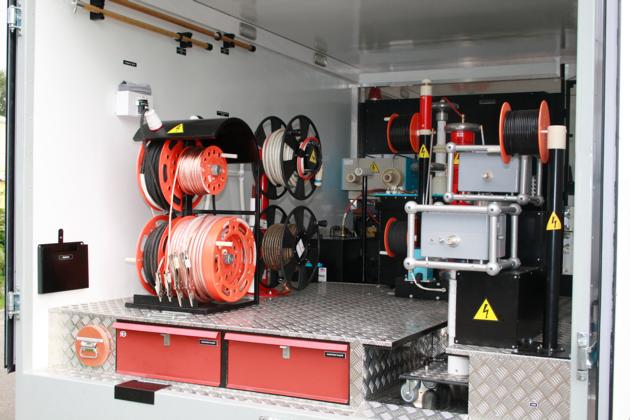

Specifications: engine: diesel axle arrangement: 6×6 engine power: 260 hp drive: all-wheel cab color: best available. The laboratory van consists of two compartments - the operator compartment and the high-voltage compartment. Windows are installed on the body. One window is on the left (along the way) in front of the van and the other one is on the right in the sliding door. The insulation of the van is made of heat-insulating material, and the end trim is made of plastic panels. The floor in the van is lined with waterproof plywood, insulated and covered with water-repellent material. The heating of the vans consists of a heater from the engine cooling system and an electric air heater additionally. Laboratories are produced in the climatic version of MCC (moderately cold climate) category 4 according to GOST 15150. The interior lighting should be 12 volts and 220 volts. The compartments are separated by a partition consisting of plexiglas. The plexiglas partition between the operator compartment and the high-voltage compartment forms a one-piece free gap 500-600 mm high and is located along the entire width of the body. The glass in the gap isn’t cluttered with any devices; there are no passes through the glass. The cable hatch on the rear door has an automatic shutter and is located opposite the unfolding cable clamp. The main equipment is installed on the frame, which is attached to the car body by the scaling-ladder. The cable and wires are laid in special cable channels. Tool storage boxes are equipped with automatic locks, preventing the extension of the boxes while the car is moving. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
The high-voltage laboratory performs the following functions: High-voltage tests of power cables up to 110/220 kV with an alternating voltage of 120 kV of the extremely low frequency of 0.1-0.02 Hz
Faultfinding in high-voltage cables using the pulse-echo method and arc reflection method
“Arc reflection method”
Faultfinding in high-voltage cables using the acoustic and inductive method
Faultfinding and testing of the cable sheath
High-voltage measurement of dielectric loss angle tangent of cables, transformers. Insulation test with overvoltage of the power frequency of 50 Hz
Transformer ratio measurement of single- and 3-phase transformers, winding resistance of all types of transformers. Testing of current transformers with automatic drawing of a magnetizable curve
No-load test (the voltage is applied to the LV winding, the HV winding is not connected) Measurement of the no-load current
Breakdown testing of transformer oil
Transformer winding resistance test
Insulation resistance test, voltage up to 15kV.
Status checkup of elements of earthing devices of electric plants, measurement of the resistance of earthing devices.
Measurement of voltage, loop resistance and short-circuit currents (phase-to-phase, phase-to-neutral and phase-to-ground).
Testing of the relay protection and automatic equipment.
|
