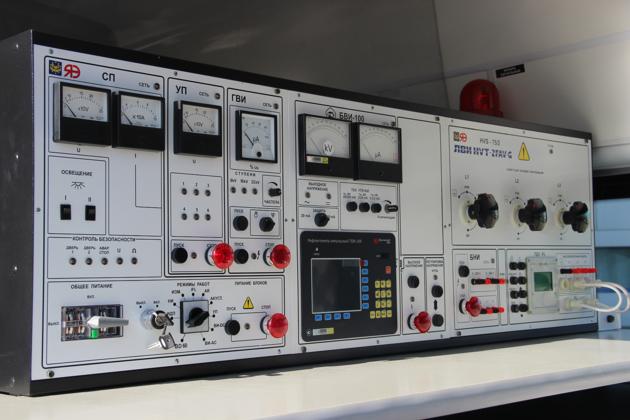

Cable Test Van ETL-10 kV
| Price: | US$ 1 |
|---|---|
| Minimum Order: | |
| Payment Terms: | PIA - payment in advance |
| Port of Export: |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |

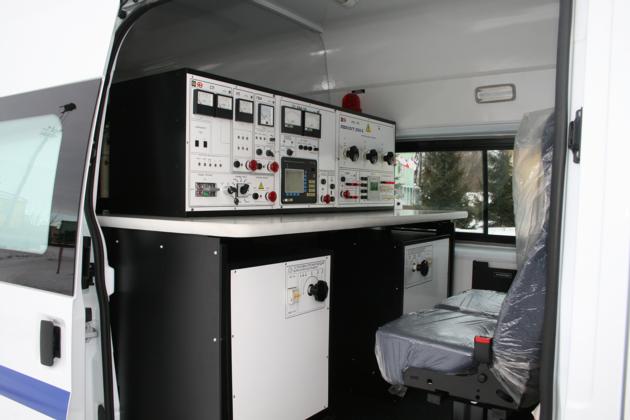

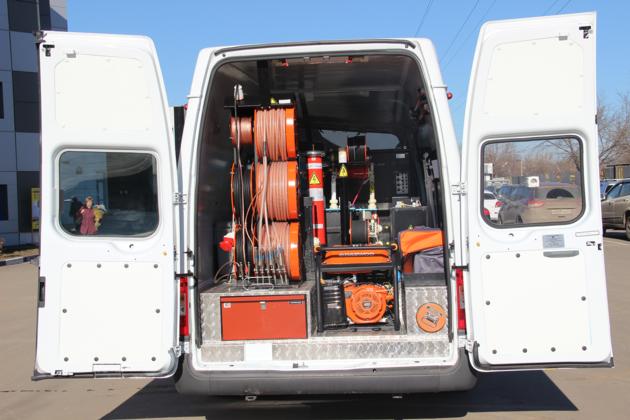

Specifications: engine: diesel, 2.2L TDCi engine power: 125 hp drive: all-wheel/front/rear Van: interior lighting 220 V AC and 12 V DC; finishing of the interior with thermal insulating material and plastic panels; manufacturing of antistatic floor in the operator compartment; manufacturing of the floor made of special aluminum tread plates in the high-voltage compartment; installation of a protective transparent partition between the operator compartment and the high-voltage compartment, working table and swivel chair; cases for storing accessories; industrial computer; multifunctional device (copying+printing); special identification marks and inscriptions in accordance with the customer’s standards. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
The high-voltage laboratory performs the following functions: High-voltage tests of power cables up to 10 kV with an alternating voltage of 30 kV of the extremely low frequency of 0.1-0.02 Hz;
Burn down of the damaged insulation of power cables;
CLP (cross-linked polyethylene) jacket tests;
Faultfinding in high-voltage cables using the pulse-echo method and arc reflection method;
“Arc reflection method”;
Faultfinding in high-voltage cables using the acoustic and inductive method;
Selection of a cable from the cable bundle;
Faultfinding in the cable sheath;
Insulation resistance test;
Comprehensive testing of electrical facilities (voltage, current intensity, frequency, F-Z, F-N and F-F).
|
