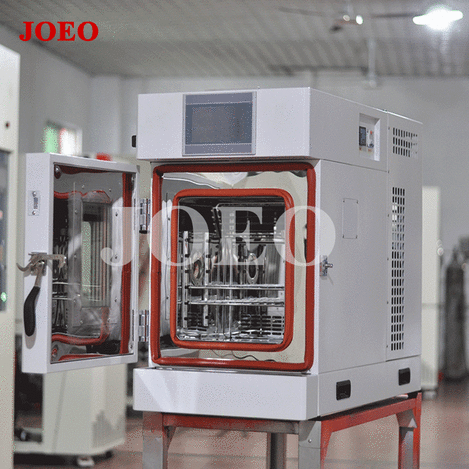

Benchtop Temperature Chamber (32L)

Feature:
Our JOEO Benchtop Temperature Chamber's window is equipped with an anti-sweat electric heater device to prevent water vapor from condensing and water droplets, and high-brightness PL fluorescent lamps keep the interior of the box illuminated;Rectangular multi-layer glass viewing window, which can be used to observe the test items during the test. If you need more models about our test equipment, please reference our chamber-testing（.）com
With automatic-water supply system, it is convenient to supplement the water supply of the humidification barrel, and it can be recycled and used automatically.
High-quality appearance, the body adopts an arc shape, the surface is treated with matte stripes, and the flat non-reaction handle is adopted, which is easy to operate, safe, and reliable.
High quality original compressor circulation system adopts the French “Tecumseh”& Germany "Bitzer" brand, which can effectively remove the lubricating oil between the condenser tube and the capillary tube, and the whole series adopts environmentally friendly refrigerants (R23, R404, R507).
Double-layer insulation of ess chamber door is tight and airtight, which can effectively isolate internal temperature leakage.
Built-in moving pulley is easy to move and place and has a strong positioning screw to fix the position.
Controller has multi-segment program editing and temperature, and humidity can do fast (OUICK) or slope (SLOP) control.
Self-developing controller system adopts an imported LCD screen, which can display the measured value, set value, and time at the same time.
Announcements:
Do not place the sample in the oven heating state, and place the sample in the state of ensuring that the heating is off;
When placing the sample, there should be a certain space around the upper and lower parts to keep the air flow in the box smooth;
There is a cooling plate on the heating wire at the bottom of the chamber, and the sample can not be placed on it, so as not to affect the heat flow and lead to heat accumulation;
If the sample will have a phase change at high temperature, it must be packed in a tray to avoid contaminating other samples (for example, it will leak oil or change from solid to liquid after heating);
Containing flammable and explosive organic volatile solvents or auxiliaries shall not be put into the chamber.

Saftey device:
1.With no-fuse protection switch
2.Over-heat protection
3.Ceramics E-16 fuse
4.high low temperature protection switch for compressor
5.over heat swith for compressor &   Compressor overcurrent protection&Compressor overpressure protection
6.Water shortage alarm, stop machine for long time water shortage protection.
7.Air conditioning channel limit overtemperature
8.Fan motor overheating protection
9.Power off protection is enabled on the power distribution control cabinet
10.door open (in operation) prompt alarm and multiple doors cause refrigeration system failure alarm protection
11. Electronic control system protection:
11.1 Total power supply phase sequence and phase loss protection
11.2 Total power supply overvoltage, undervoltage protection
11.3 Leakage protection
11.4 Overload and short circuit protection"
