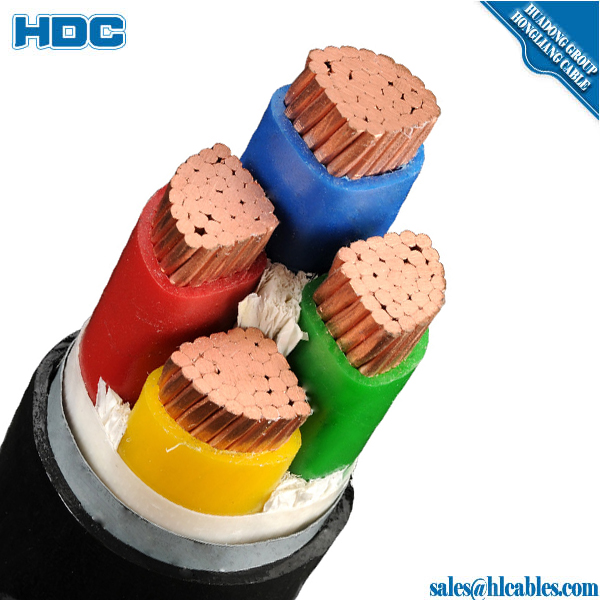

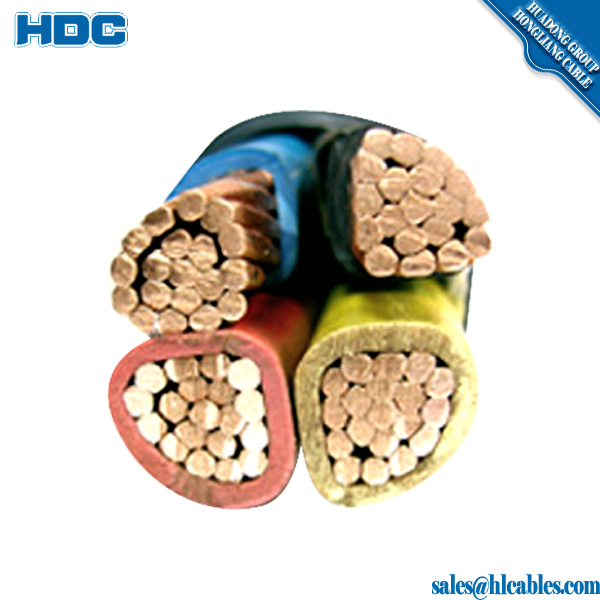

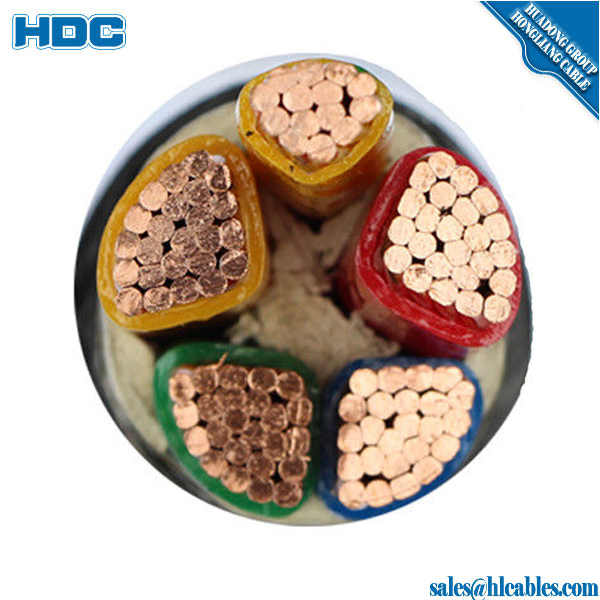

Australia HOT SELLING 3.5c xlpe cable 25MM2 35MM2 50MM2 185MM2 400MM2 Low voltage cable
Price: | US$ 1 / Meter |
---|---|
Minimum Order: | 100meters |
Payment Terms: | L/C,D/A,D/P,T/T |
Port of Export: | Qingdao/Tianjin/Shanghai/Ningbo/Guangzhou |
Product Details
Model No.: | Brand Name: | Huadong cable |
---|
Certification: | |
---|---|
Specification: |
1 Information for XLPE/PVC SWA Cable : a, Cores and sections 1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on. No. Of Core and Sectional Area(mm2) : 1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200 2 Core 1.5-185 25-185 3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400 4 Core 2.5-400 25-400 5 Core 2.5-400 25-400 b, Construction for XLPE/PVC SWA Cable : Conductor: Solid or stranded copper Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC) Filler: Polypropylene filament with lapped binding tape Binder: Binding tape Inner sheath: Polyvinyl chloride (PVC) Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA) Sheath: Polyvinyl chloride (PVC) c, Nominal Section for XLPE/PVC SWA Cable : Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800 |
Packaging & Delivery
Packaging: | wooden drum,steel drum,others as your request. |
---|---|
Delivery/Lead Time: | Shipped in 7 days after payment |
Production Capacity: | 1000000 Kilometer/Kilometers per Month |
Product Description
iitem name :Australia HOT SELLING 3.5c xlpe cable 25MM2 35MM2 50MM2 185MM2 400MM2 Low voltage cable 1 Information for XLPE/PVC SWA Cable :
a, Cores and sections
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.
No. Of Core and Sectional Area(mm2) :
1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
2 Core 1.5-185 25-185
3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400
4 Core 2.5-400 25-400
5 Core 2.5-400 25-400

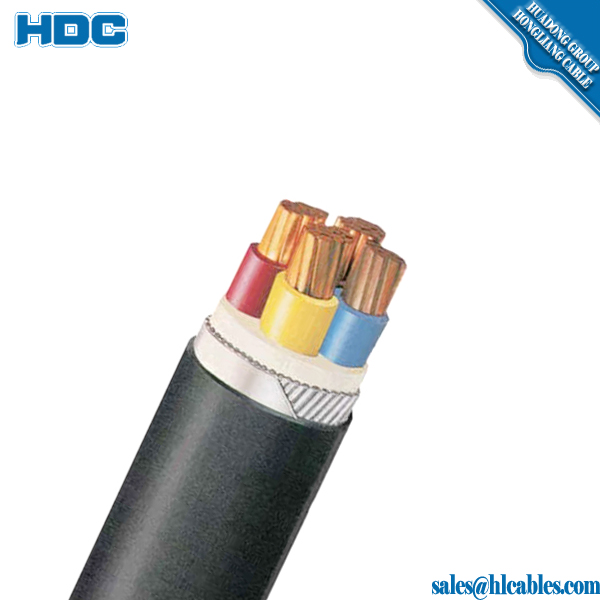

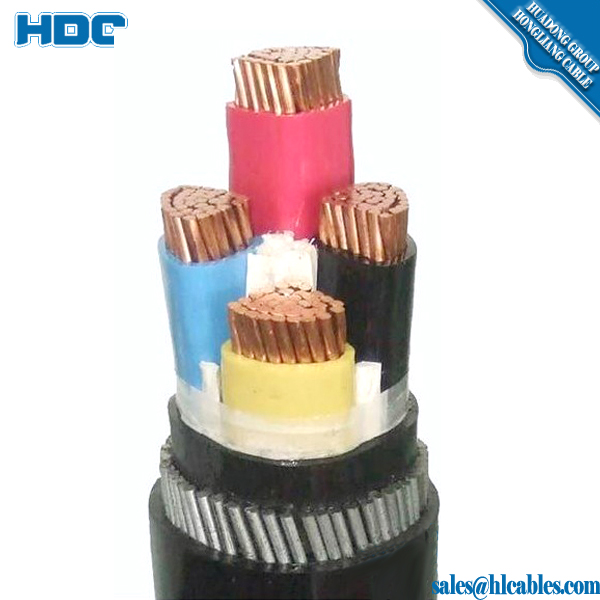

b, Construction for XLPE/PVC SWA Cable :
Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
c, Nominal Section for XLPE/PVC SWA Cable :
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
d. Operating Features for XLPE/PVC SWA Cable :
1)The maximum conductor operating temperature: 90®C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250®C
Environment temperature should be no lower than 0®C for laying the cable.
2)Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
Remarks: D means practical external diameter of the cable
e, Features for XLPE/PVC SWA Cable :
XLPE insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 ®C. It is conveninet to use and can be laid with no restriction of different level.
XLPE insulated steel wire armoured power cable: XLPE/PVC insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke nonhalogented and three classes of
A, B, C.
