700-1500 BPH Beer Bottling Machine/Bottle rinsing filling sealing 3-in-1 machine/beverage bottling m

1.Introduction

GF-16/16/6 type beer bottle rinser-filler-capper 3-1 unit machine is designed combined with the actual situation in our country after the introduction and absorption. It adopts the bottle filling and capping technique of Germany technology. It has been specially used to microbrewery.

It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level. Adopt Siemens automatic controlling system, realizing trinity of the machines, and control the washing, filling and capping process and realize that it only starts to filling when there is a bottle, otherwise it will stop filling and no broken bottles. The filling process is cleaner and pure due to it’s twice vacuumization of bottles, and more stable because of isobaric filling operation. Using vacuum pump and CO2 preparing pressure to realize a second vacuum ensure no air and bacteria in the bottle, guarantee the filling quality and warranty quality time. Filling cylinder braces use worm-gear box going up and down to satisfy bottles of different height. Float switches in the filling cylinder ensure a smooth liquid inlet. Therefore, this machine is the best ideal choice for beer or beverage factories.



2.Structure and function

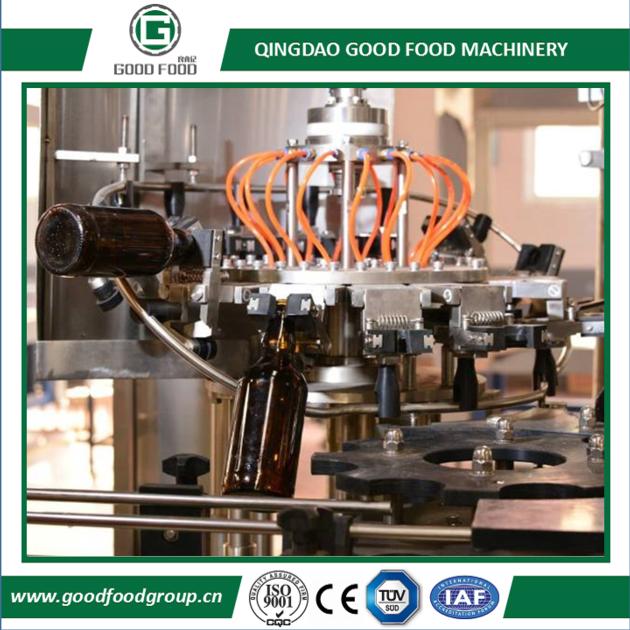

a. The rinsing part rinsing bottle inside with sterile water before going into the filling part (16 heads)

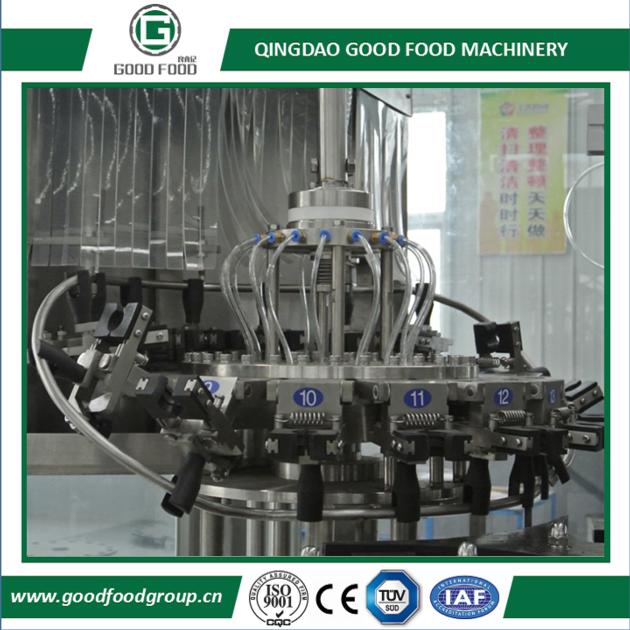

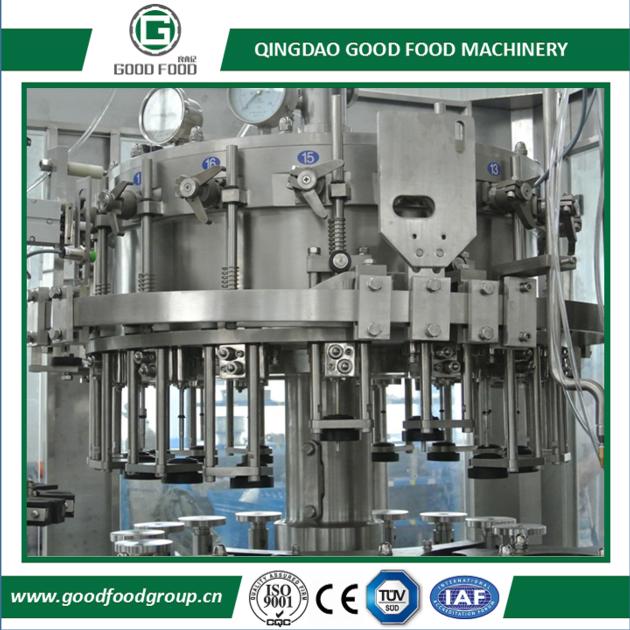

b. The filling part with twice vacuumizing and CO2 inject before filling . (16 heads)



c. Before capping, we used high pressure water arouser to push air (O2) out of bottle .to keep beer in good quality . (6 heads)
