0.6/1kv IEC standard power cable 70mm2 4core XLPE Armoured Power cable
| Price: | US$ 1.2 / Meter |
|---|---|
| Minimum Order: | 300 meters |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,PayPal |
| Port of Export: | Qingdao/Tianjin/Shanghai/Ningbo/Guangzhou |
Product Details
| Model No.: | Brand Name: | Huadong cable |
|---|
| Certification: | |
|---|---|
| Specification: |
Voltage：0.6/1KV, Conductor Material: Copper/Aluminum Conductor Flexibility: Stranded class 2. Cores: 1,2,3,4,5,3+1,3+2,4+1. Armoured :non-armoured or STA/SWA armoured/Galvanized steel wires Conductor Shape: 1.0mm2 up to 16mm2 Circular, 25mm2 up to 400mm2 Sector-shaped Insulation: XLPE (Cross-linked Polyethylene)/PVC IEC60502 Sheath: PVC/PE or LSZH. Sheath Colour: Black or according customer's requesment. Standard: IEC 60502, BS 7870, GB/T12706 or according customer's requesment. Type: NYY,NAYY,YVV,NYCY,NYRY,NA2XY,YE3SV,YE2SHSV,NAYCVVY,NA2XY,N2XY,N2XRY Cable |
Packaging & Delivery
| Packaging: | Iron Or Wooden Drum |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: | 350000 Kilometer/Kilometers per Month others |

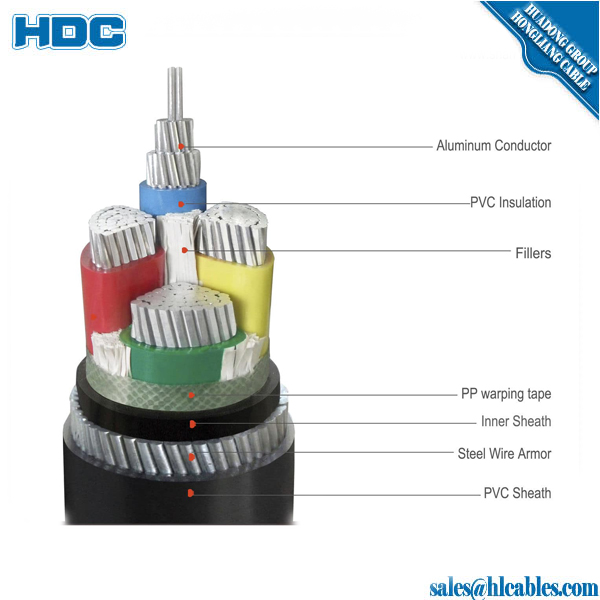

Product Description
Construction： Voltage：0.6/1KV,
Conductor Material: Copper/Aluminum
Conductor Flexibility: Stranded class 2.
Cores: 1,2,3,4,5,3+1,3+2,4+1.
Armoured :non-armoured or STA/SWA armoured/Galvanized steel wires
Conductor Shape: 1.0mm2 up to 16mm2 Circular, 25mm2 up to 400mm2 Sector-shaped
Insulation: XLPE (Cross-linked Polyethylene)/PVC IEC60502
Sheath: PVC/PE or LSZH.
Sheath Colour: Black or according customer's requesment.
Standard: IEC 60502, BS 7870, GB/T12706 or according customer's requesment.
Type: NYY,NAYY,YVV,NYCY,NYRY,NA2XY,YE3SV,YE2SHSV,NAYCVVY,NA2XY,N2XY,N2XRY Cable
Product type:
-XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
-XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
-XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
-Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
-Flame retardant XLPE insulated steel tape armored PVC sheathed power cable
(FR/XLPE/STA/PVC Cable)
-Flame retardant XLPE insulated steel wire armored PVC sheathed power cable
(FR/XLPE/SWA/PVC Cable)
Application:
low votage xlpe insulation power cable is used indoor or outdoor, in
tunnel, cable furrow or pipe. It able to bear external mechanical forces, but the
tractive force during laying.
Feature:
Rated Voltage Uo/U (Um): 600/1000V, BS5467
Installation Temperature: Minimum: 0¬C,Maximum: 60¬C
Installation Type: Outdoor Direct burial
Operating Temperature: Maximum: 90¬C.
Short-circuit Maximum Conductor Temperature: 250¬C.
Flame Retardant: IEC 60332-1
Bending Radius: 1.5mm2 up to 16mm2 = 6 x 0 25mm2 up to 400mm2 = 8 x 0
|
